PRODUCT INFORMATION
The adjustable armed status LED indicator Tri Color provides a clear and visible status update by indicating whether your alarm system is armed or disarmed.
The LED indicator can be used for general status indication purposes or other LED applications, such as decorative lighting, display panels, or signaling purposes.
Featuring a waterproof housing which allows for both indoor and outdoor use.
The LED indicator has an adjustable mounting bracket that offers versatile positioning options in and around your premises
FEATURES OF THE TRI COLOR LED INDICATOR:
- Tri Colour LED’s (Choose between Red, Blue or Green)
- LED's within a waterproof housing making it ideal for outside applications

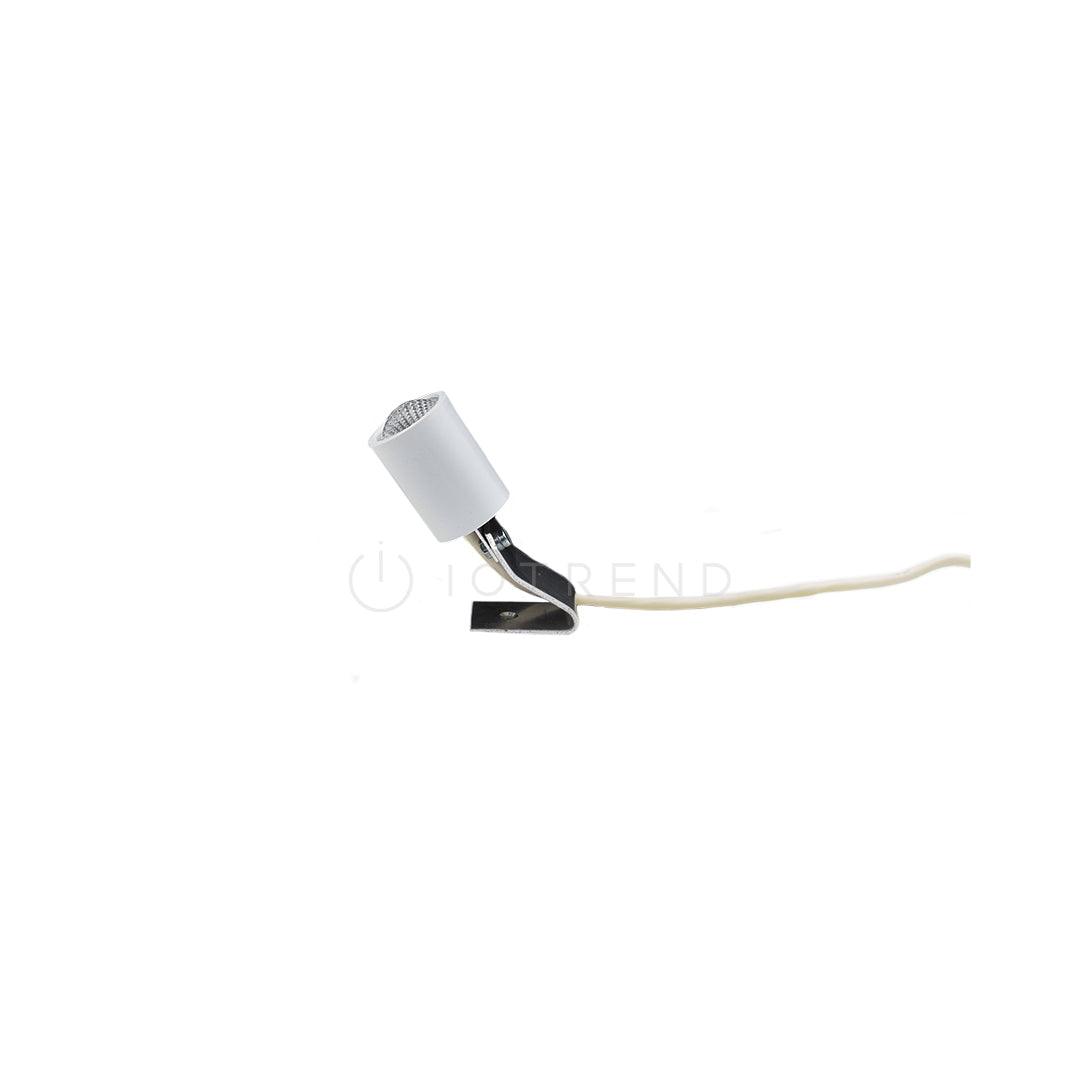

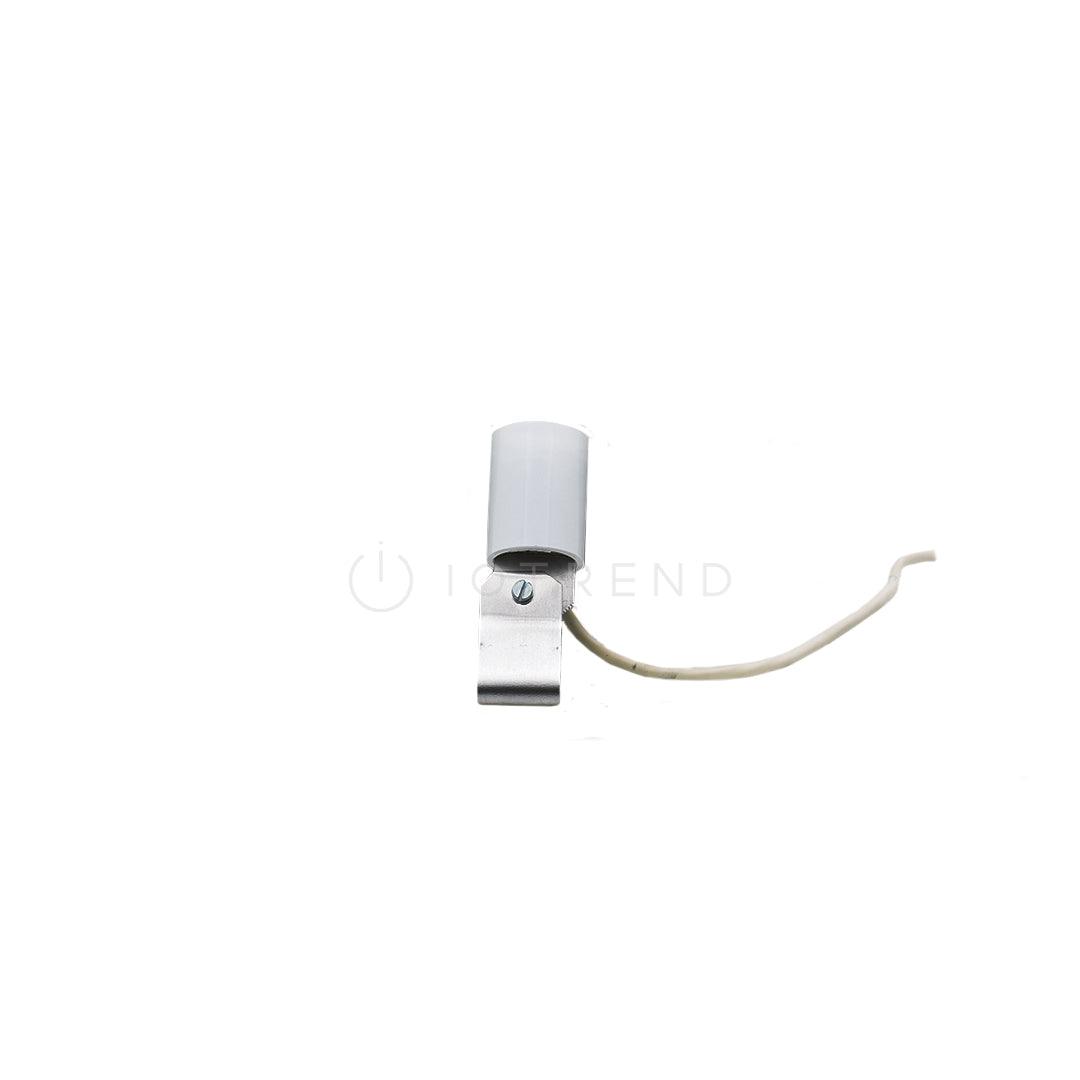

- Adjustable mounting bracket
- Built in resistors for 12VDC operation
- Easy Installation
SPECIFICATIONS OF THE TRI COLOR LED INDICATOR:
| LED Color | Tri-Color (Green, Red or Blue) |
| Other available colors | Green, Red and White |
| Voltage | 12V |
| IP Rank | IP65 |
| Bracket type | Adjustable |
| Housing Material | PVC |
| Cable length (Can be extended) | 300mm |
| Product dimensions | 75mm (L) x 30mm (W) x 30mm (H) |
| Product weight | 30g |
| Packaging dimensions | 110mm (L) x 80mm (W) x 30mm (H) |
| Mass of unit packed | 50g |
| Warranty | 12 months limited manufacturer’s warranty |
WIRING GUIDE

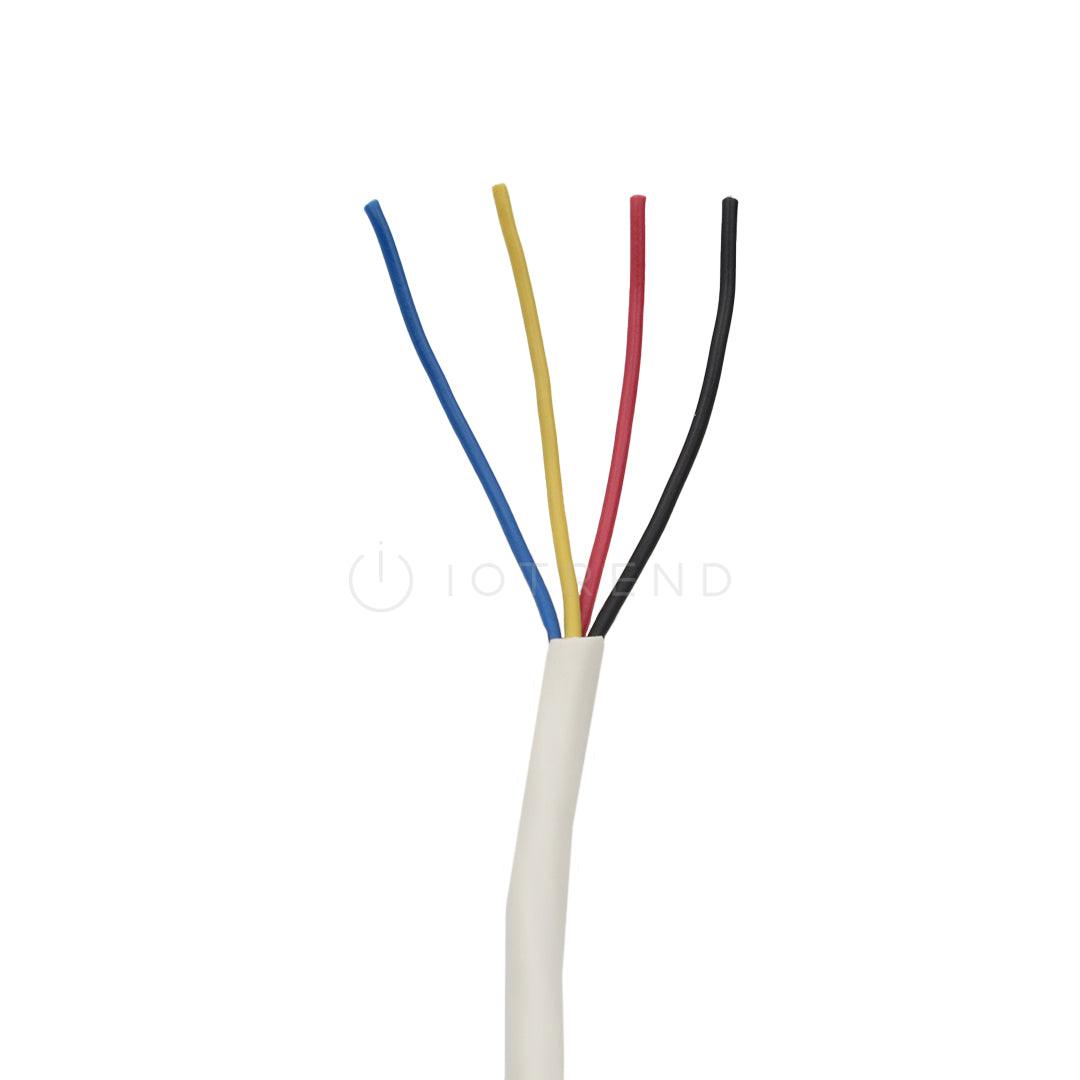

The Tri Color LED indicator has three different colors to choose from; Green, Red and Blue

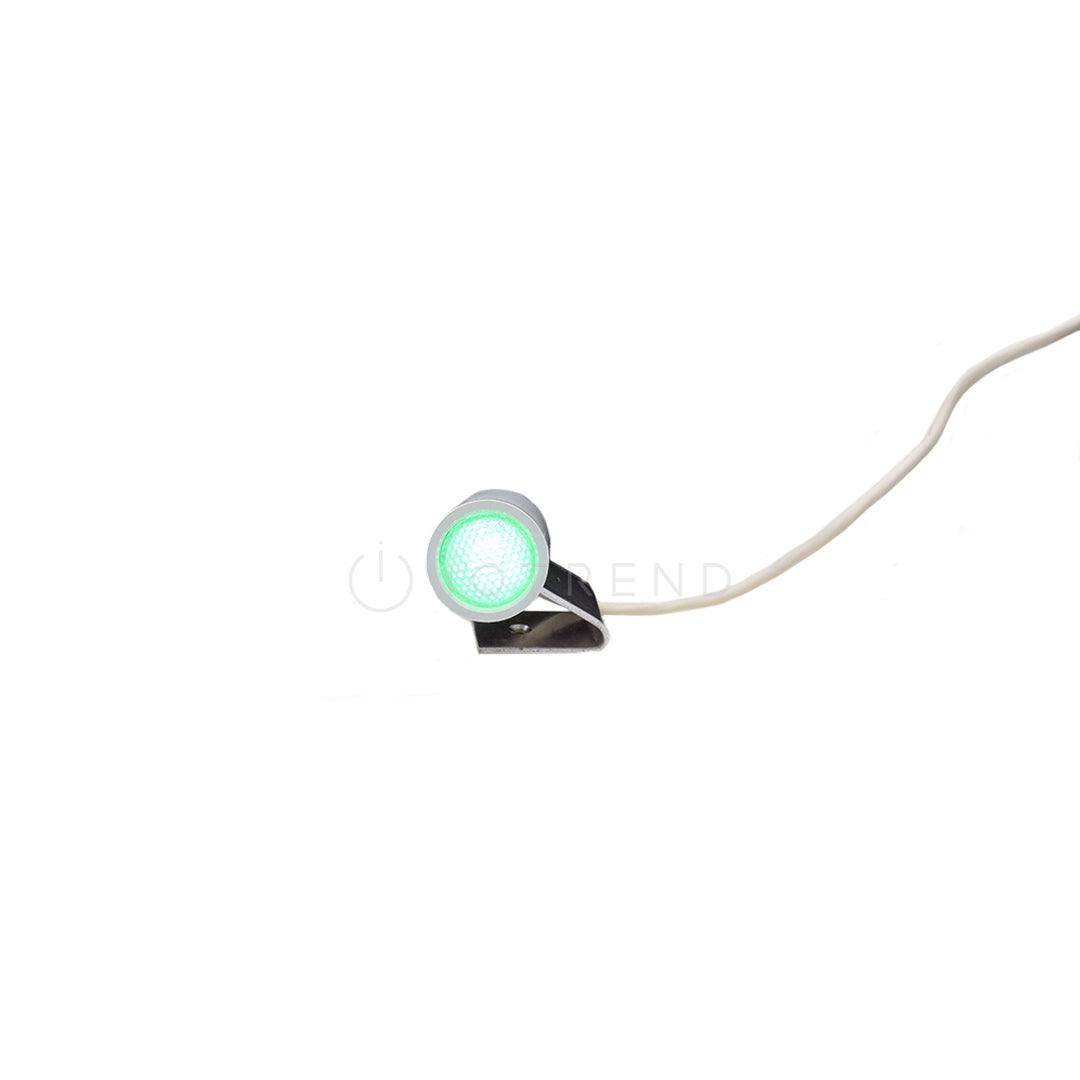

• Green - Place the black wire on the positive output and place the yellow wire on the common (negative output)

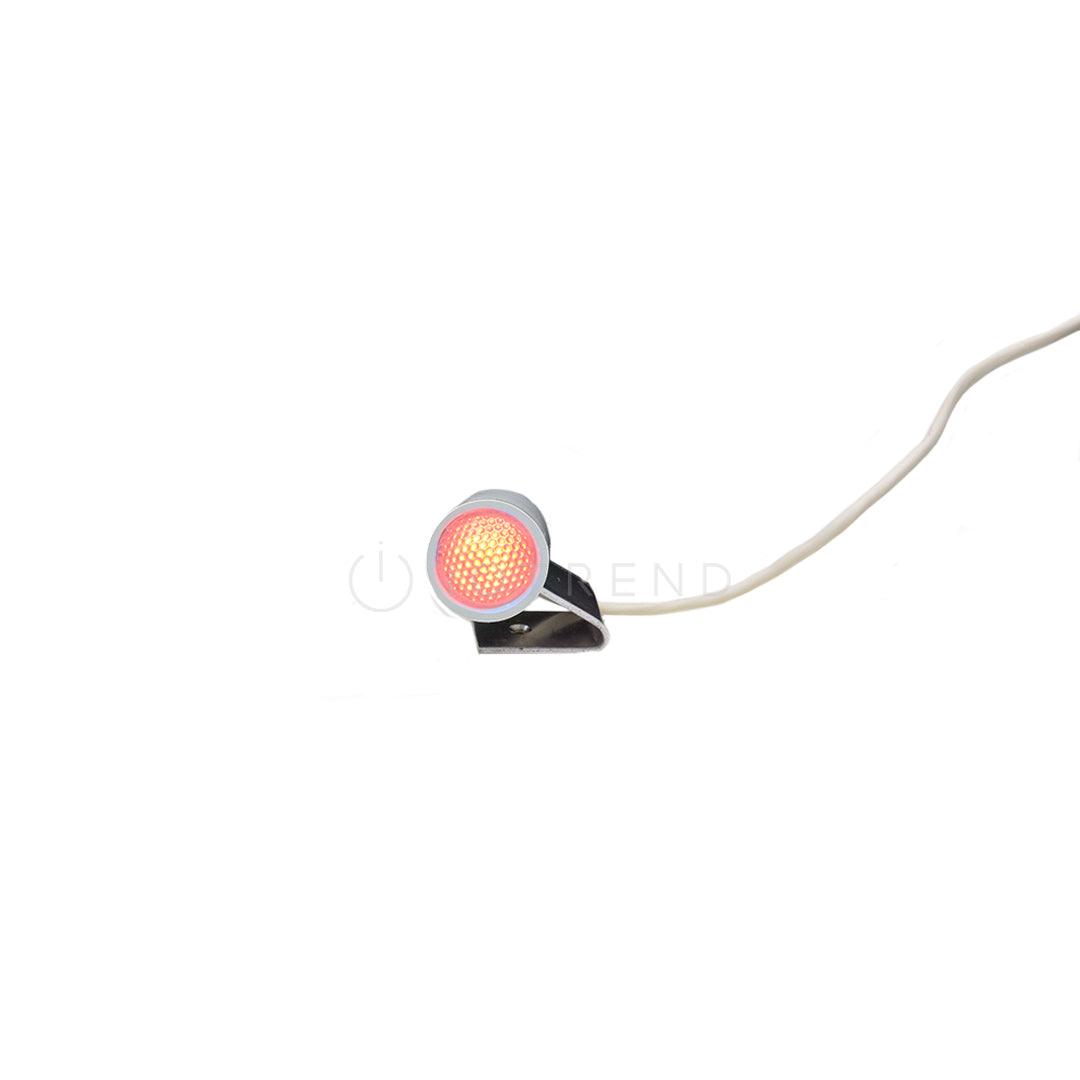

• Red - Place the black wire on the positive output and place the red wire on the common (negative output)
• Blue - Place the black wire on the positive output and place the blue wire on the common (negative output)
WHAT'S IN THE BOX:
1 x Adjustable Armed Status LED Indicator Tri Color
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
