PRODUCT INFORMATION

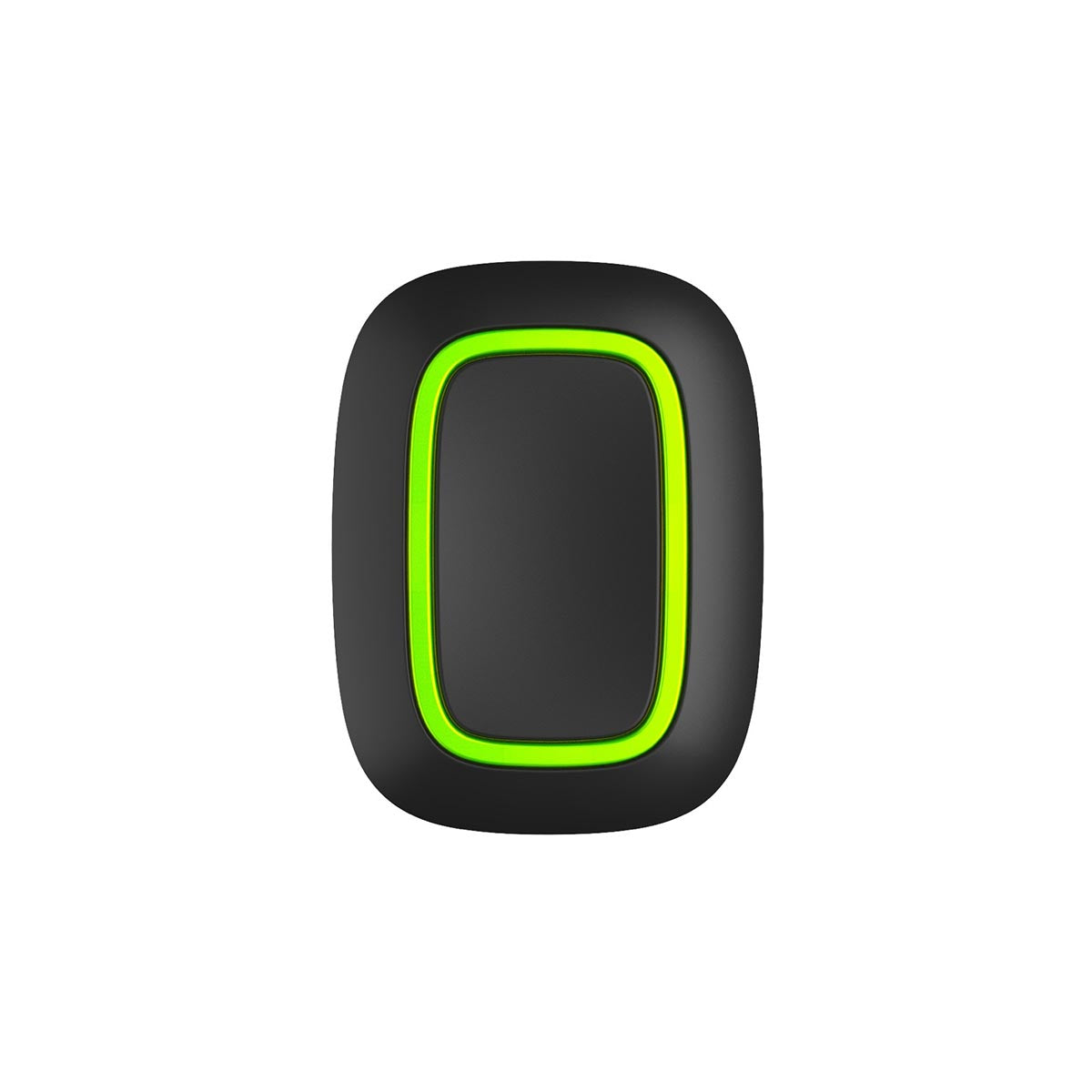

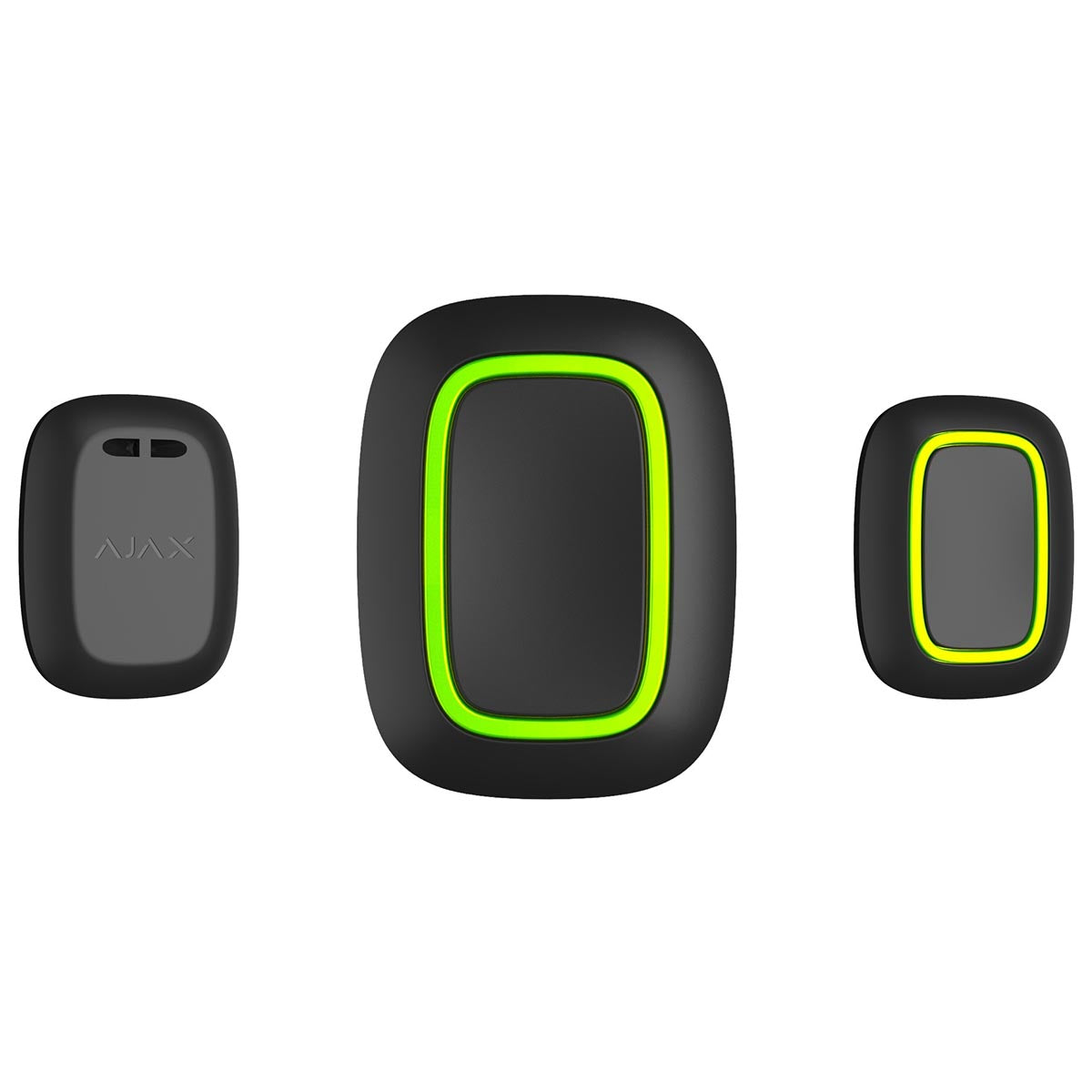

Ajax Button Black is a single alarm(panic)/smart button that can be programmed to notify an alarm monitoring company about an intrusion, fire or gas leak. The Button can also be used to manage smart home appliances and request medical help and inform relatives about a sudden health deterioration in just one click. In the panic mode, the device supports 8 types of events.

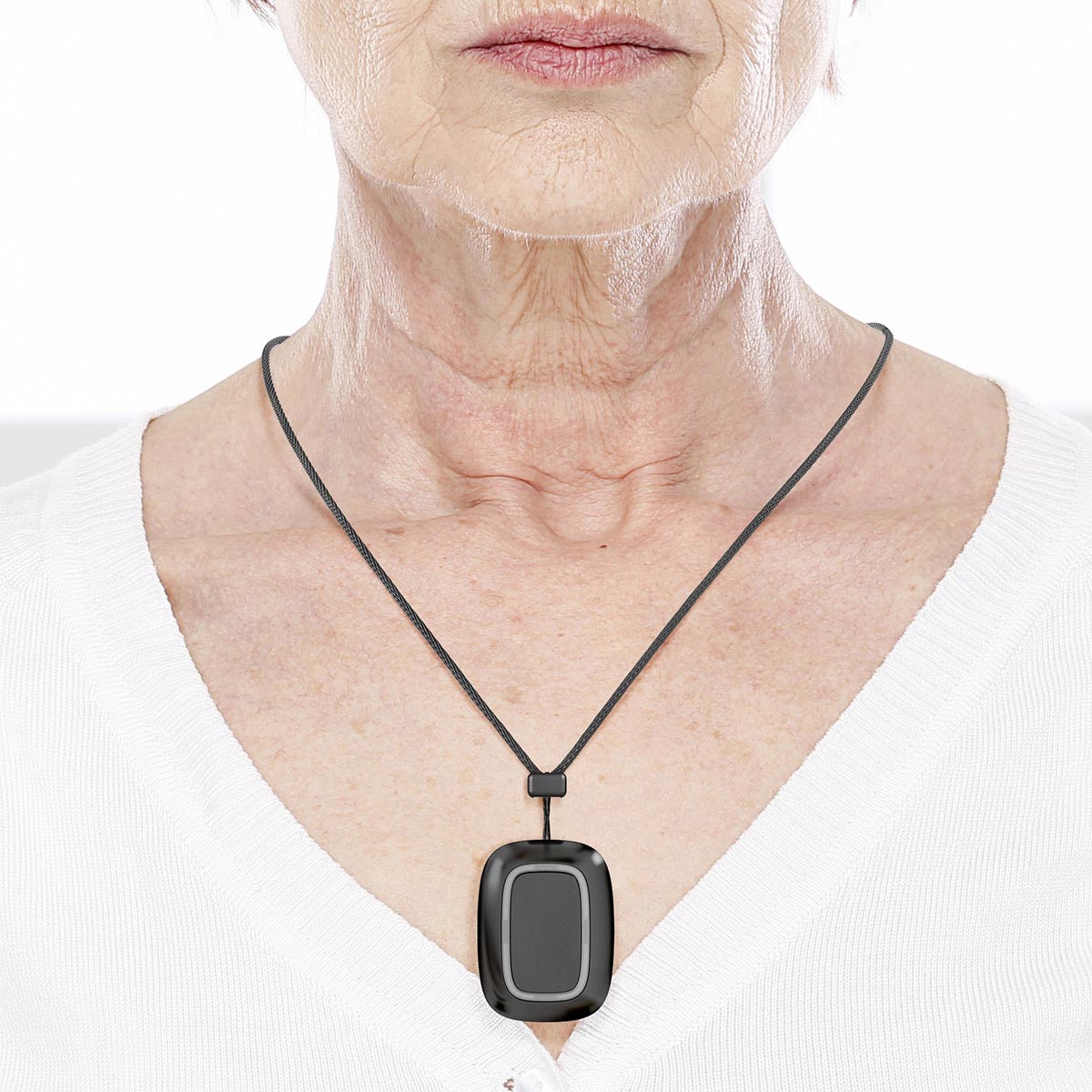

It’s tiny and weightless, resistant to dust and splashes and can be easily attached onto any surface, worn on the wrist or around the neck.
Please note: Ajax Button operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Compatible with Ajax hubs only (OS Malevich 2.7 or higher) and all range extenders. Does not support ocBridge Plus and uartBridge integration modules.
Product Code: 10314.26.BL1
FEATURES OF THE AJAX BUTTON:
- Wireless alarm button/smart button
- Built-in battery (lasts up to 5 years)
- Communication range of 1300m (in an open space)
- Turn off the lights, switch on home appliances, lower the roller blinds or open the gate with a single click. The Button is always at hand to help you control things
- Protected against accidental press and transmits alarms
- Connect to security system and configured via Ajax apps on iOS, Android, macOS, and Windows
- Users are alerted of all alarms and events via push notifications, SMS, and phone calls (if enabled).
- Alarm delivery confirmation
- Seamless installation
INSTALLATION AND SET-UP
The Ajax Button comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector.

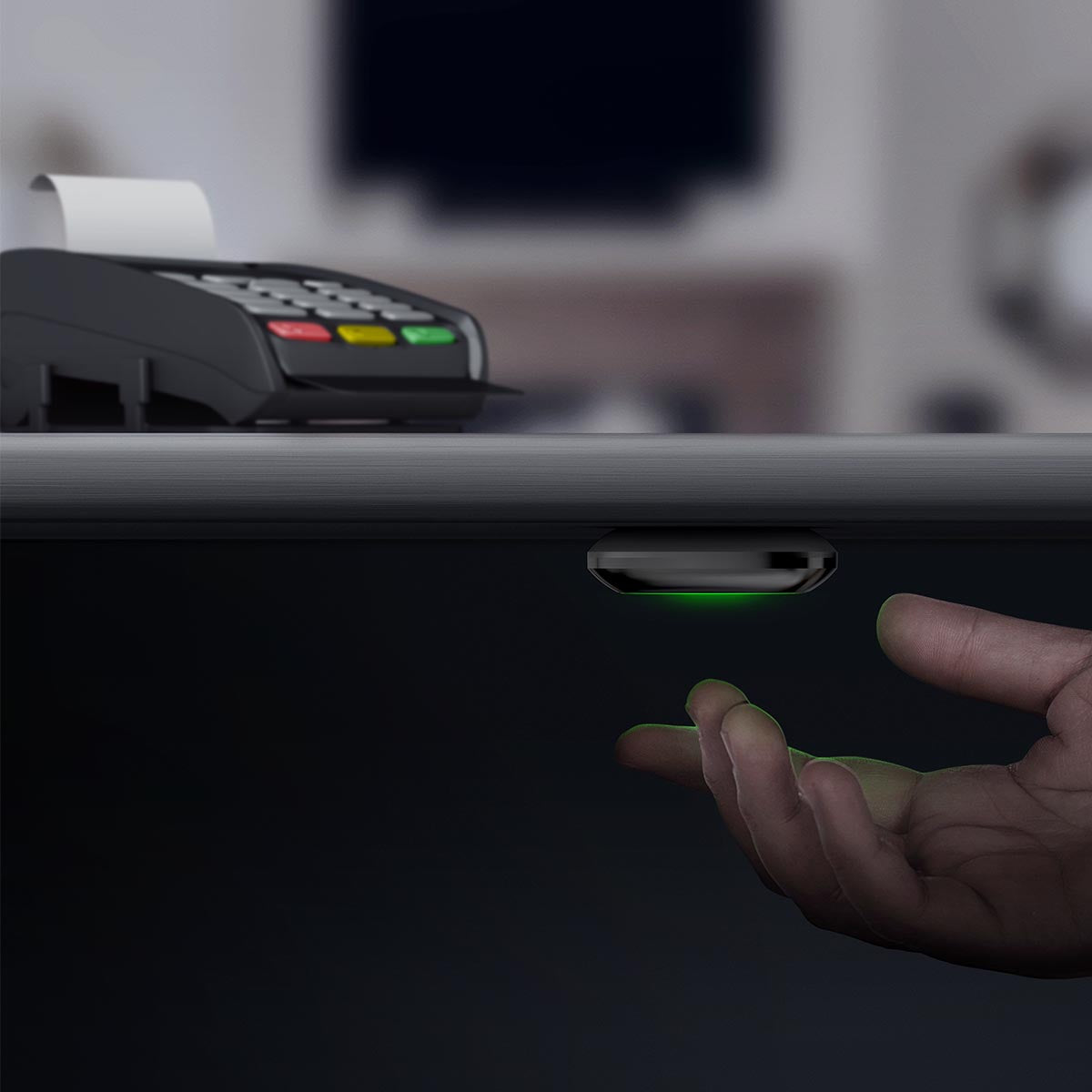

Scan the QR code using the Ajax app to register your Button, name your button, then you can clip it on a key fob, wear on the neck, or adjust on a double-sided tape anywhere in your house, office, or at the store.
SPECIFICATIONS OF THE AJAX BUTTON:
| Compatible hubs | All Ajax hubs with OS Malevich 2.7 firmware |
| Compatible range extenders | All Ajax radio signal range extenders |
| Classification | Addressed Radio Panic Button |
| False alarm prevention | Yes, in the Panic mode (long and short presses) |
| Number of buttons | 1 |
| Alarm transmission | No longer than 0,15 sec (Active from the first click - no need to wake it up) |
| Adjustable alarm types | Intrusion |
| Fire | |
| Auxiliary alarm | |
| Panic button | |
| Gas alarm | |
| Malfunction | |
| Leakage | |
| Custom | |
| Communication range with a hub | Up to 1300 m in an open area |
| Two-way communication channel | Yes |
| Operating frequencies | 868.0–868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Frequency hopping | Yes |
| Power supply | CR2032 battery, 3V |
| Battery life | Up to 5 years |
| Operating temperature range | From -10°C to +40°C |
| Permissible humidity | Up to 75% |
| Protection class | IP55 |
| Product Dimensions | 47 mm х 35 mm х 13 mm |
| Product Weight | 16g |
| Packaging Dimensions | 52 mm x 41 mm x 25 mm |
| Mass of unit packed | 125g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax Button Black
