PRODUCT INFORMATION
The Ajax DoorProtect White is a wireless opening detector that notifies of first signs of room intrusion by means of a broken door or window. It can be mounted on all types of doors including a metal base.
Please note: DoorProtect operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Compatible with all Ajax hubs, range extenders, ocBridge Plus, uartBridge.
Product Code: 7063.03.WH1
FEATURES OF THE AJAX DOORPROTECT:
- Wireless Indoor detector
- Built-in battery (lasts up to 7 years)
- Communication range of 1200m (in an open space/line of sight)

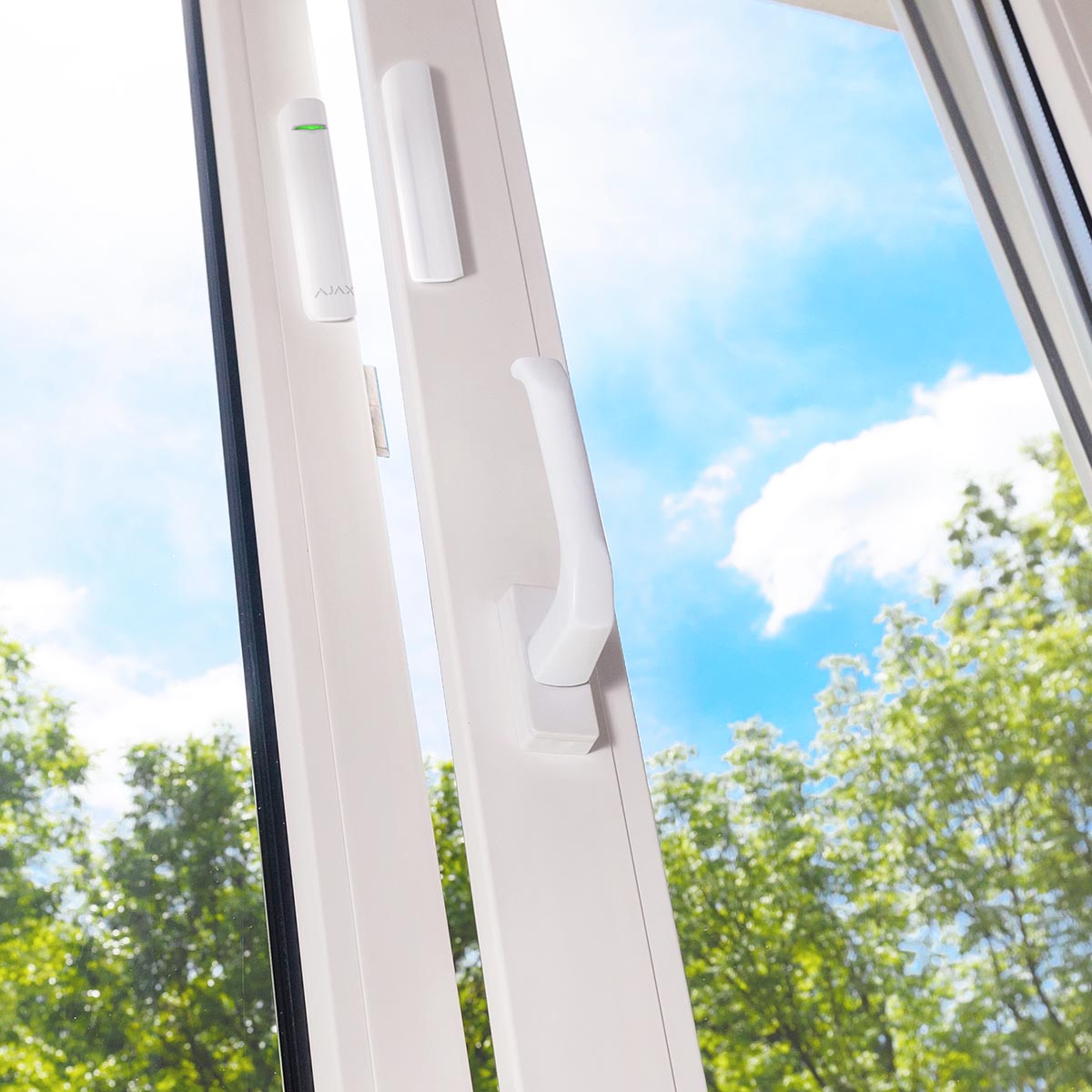

- DoorProtect opening sensor protects even windows that are open for ventilation
- External contact is available for connecting third-party detectors
- Includes magnets of various sizes for installation on narrow frames and door frames
- The device consists of two modules detector and magnet.
- Using the uartBridge or ocBridge Plus integration modules, DoorProtect can be used as part of third party security systems.
- Tamper resistant
- Detector is set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated)
- Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax DoorProtect comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector.
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
The Ajax security system is self-sustaining, but the user can connect it to the central monitoring station of a private security company.
SPECIFICATIONS OF THE AJAX DOORPROTECT:
| Compatibility | Operates with all Ajax hubs, range extenders, ocBridge Plus, uartBridge |
| Classification | Point magnetic and contact radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors |
| Sensing element | Reed switch |
| Alarm signal delivery time | 0.15 s |
| Activation threshold | Small magnet - 1 cm |
| Big magnet - 2 cm | |
| Power supply | CR123A battery, 3V |
| Battery life | Up to 7 years |
| Communication range with central unit | Up to 1,200 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0-868.6 MHz |
| Self-adjusting RF output power | Up to 20 Mw |
| Block encryption based on AES algorithm | Yes |
| Detector polling period | 12−300 s |
| Temperature sensor | Available |
| Operating temperature range | From -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Protection against fraud | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Remote setting and testing | Yes |
| Certification | Grade 2, CE |
| Product Dimensions | Diameter: 20 mm & Height: 90 mm |
| Product Weight | 29g |
| Packaging Dimensions | 99 mm x 57 mm x 32 mm |
| Mass of unit packed | 200g |
| Warranty | 24 months limited Manufacturer’s warranty. Batteries are not covered under warranty. |
WHAT’S IN THE BOX:
1 x Ajax DoorProtect White
