PRODUCT INFORMATION
The Ajax DualCurtain Outdoor White is a wireless bidirectional outdoor curtain motion detector with an adjustable detection range of up to 30 meters.
DualCurtain Outdoor has a narrow horizontal detection angle and is designed to control property perimeters such as windows, archways, doors, gates and passages.
Please note: DualCurtain Outdoor operates as part of an Ajax system by connecting to the compatible hubs via the Jeweller secure radio communication protocol.
The DualCurtain is compatible only with Hub Plus, Hub 2, Hub 2 Plus, Hub Hybrid, and radio signal range extenders. Connectivity with Hub and the ocBridge Plus and uartBridge integration modules is not supported.
Product Code: 26072.81.WH1
FEATURES OF THE AJAX DUALCURTAIN OUTDOOR:
- Outdoor motion detector
- Pre-installed battery (Battery life - Up to 4 years)
- Anti-making system
- 2 x IR sensors on each side
- Motion detection distance of 4 to 15 m
- Detection angle horizontal of 4.5°
- Communication range of 1700m (in an open space/line of sight)

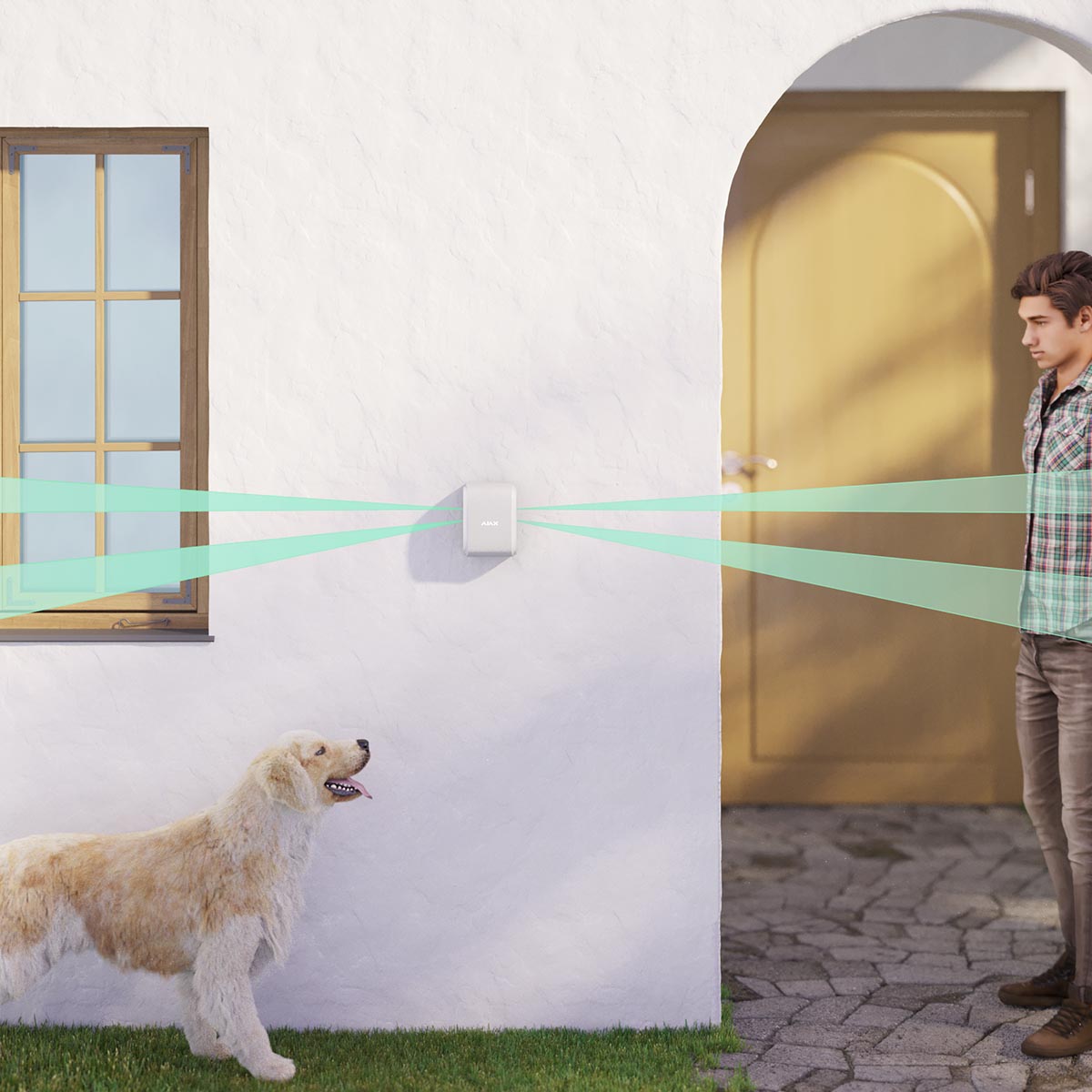

- Pet Immune (ignores pets with a height of 80 cm)
- One enclosure – Two independent detectors (detection range of the two optical systems is adjusted independently)
- Near Area Detection
- 5 ReX radio signal range extenders in security system
- Adjustable ping interval from 12 seconds
- In-app battery charge status
- Low battery notification
- Detector is set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated).
- Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax DualCurtain Outdoor comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector. The Ajax Dual Curtain connects to the security system via the Ajax app, simply scan the QR code, add the detector to the room, and proceed to installation.
SPECIFICTIONS OF THE AJAX DUALCURTAIN OUTDOOR:
| Compatibility | Compatible only with Hub Plus, Hub 2, Hub 2 Plus, Hub Hybrid, and radio signal range extenders |
| Classification | Electro-optical radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors/outdoors |
| Sensing element | 4 x IR sensor |
| Motion detection distance | From 4 to 15 m (depending on settings) for each optical system |
| Protection against false alarms | Available (ELSA software algorithm) |
| Alarm signal delivery time | 0.15 s |
| Detection angle | Horizontal: 4.5° and Vertical: 90° (depending on settings) |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Pet Immunity | Height up to 80 cm |
| Power supply | 2 x CR123А batteries, 3 V |
| Battery life | Up to 4 years |
| Temperature sensor | Available |
| Communication range with the central unit | Up to1,700 m line-of-sight |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0−868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Detector polling period | 12–300 s |
| Frequency hopping | Yes |
| Operating temperature range | From −25°С to +60°С |
| Permissible humidity | Up to 95% |
| Protection class | IP54 |
| Protection against forgery | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Product Dimensions | 174 mm x 123 mm x 88 mm |
| Product Weight | 615g |
| Packaging Dimensions | 230 mm x 204 mm x 97 mm |
| Mass of unit packed | 1000g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
Recommendations
The detector is installed at a height of 0.8–1.3 meters from ground level when used to protect doors, arches, other passages, or the area in front of windows. Otherwise, if the detector is used to protect windows, it is installed at a height of 0.5–0.6 meters from the windowsill.
WHAT’S IN THE BOX:
1 x Ajax DualCurtain Outdoor White
