PRODUCT INFORMATION

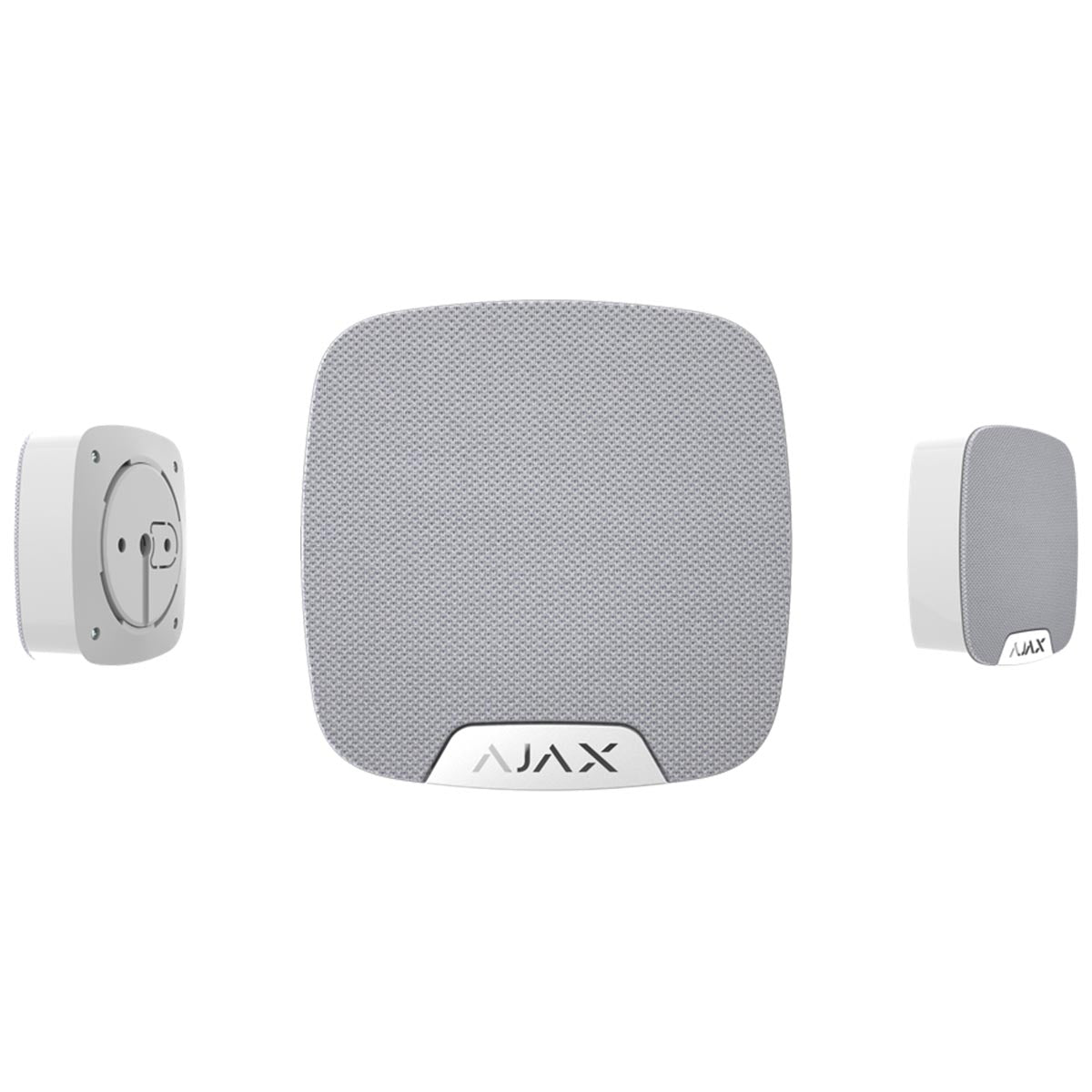

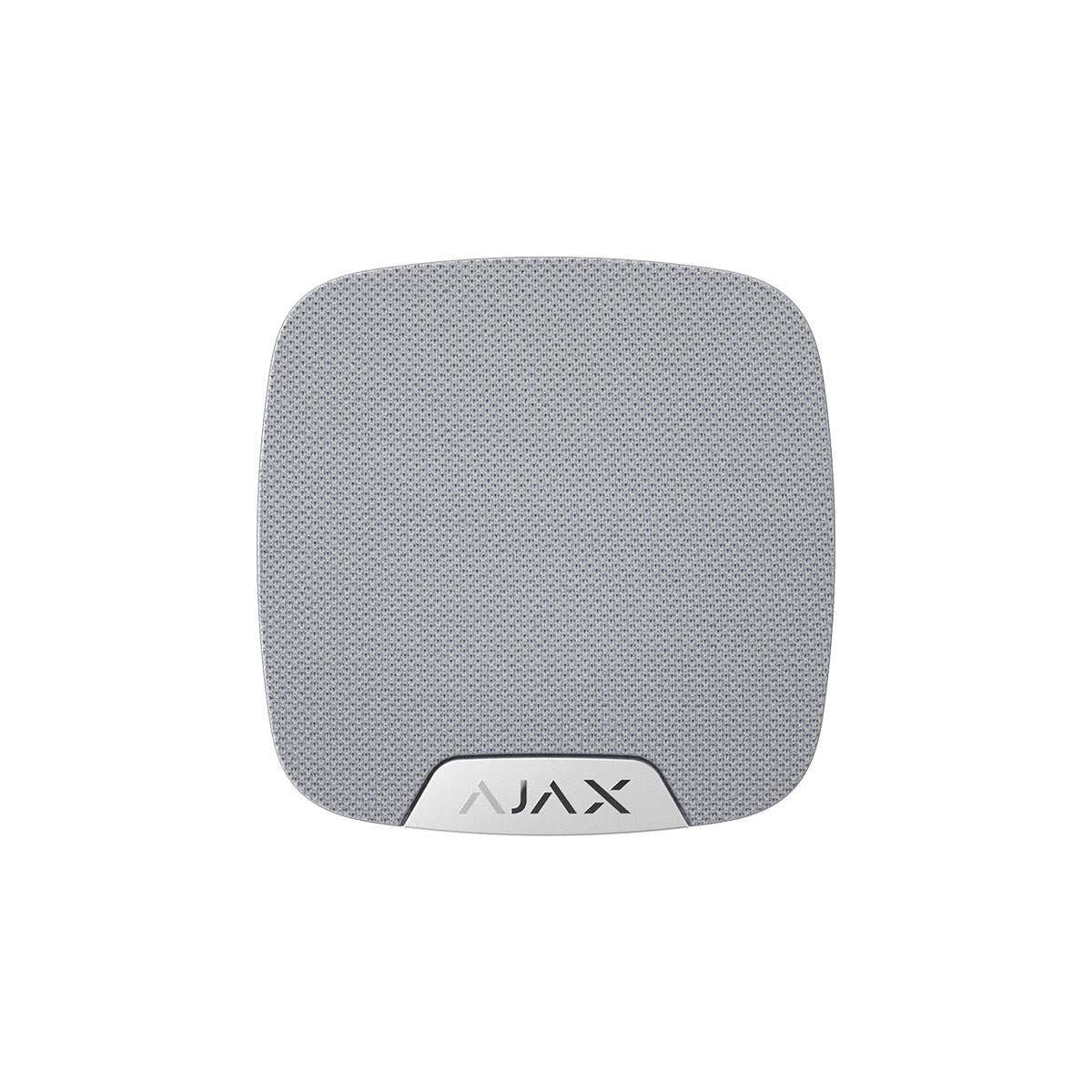

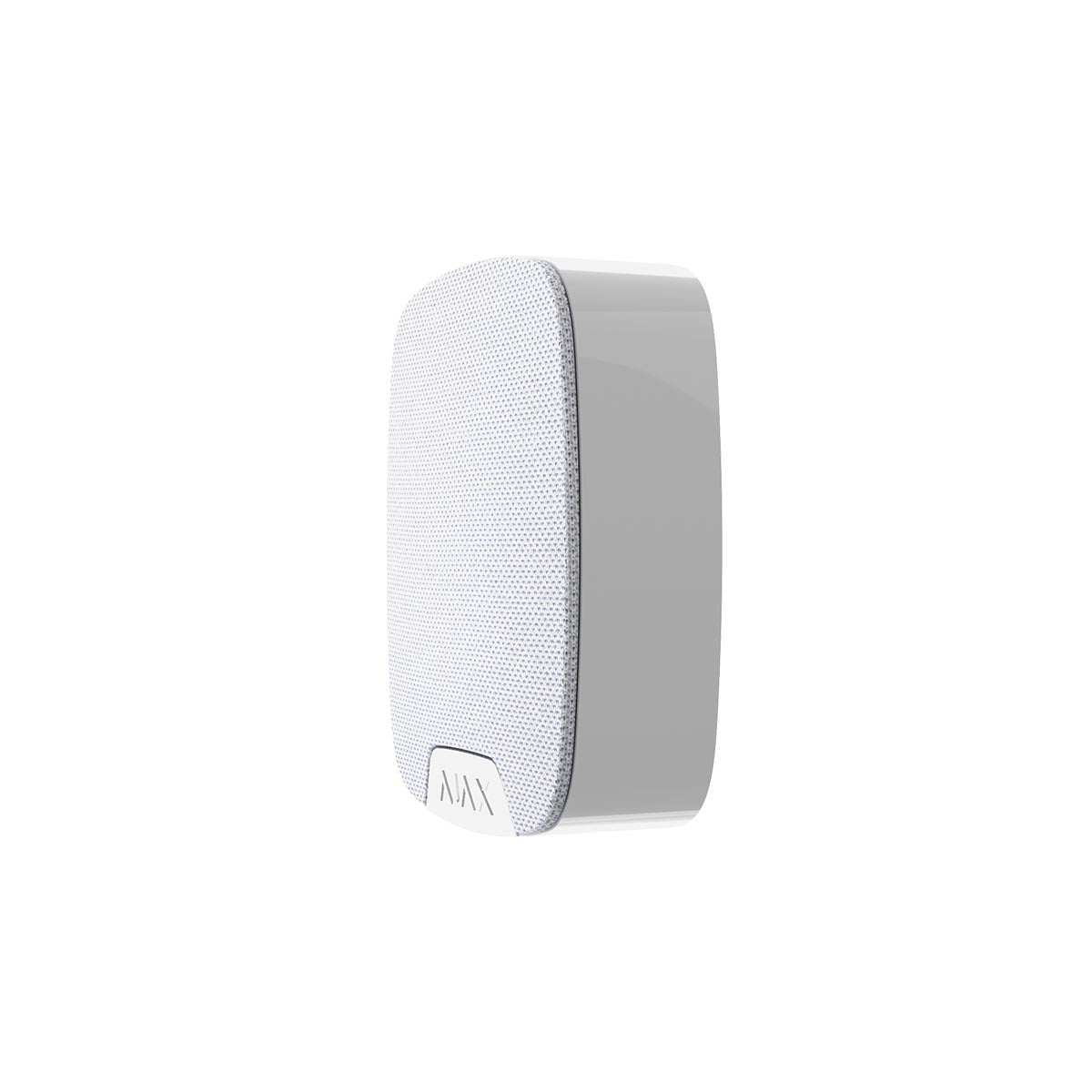

The Ajax HomeSiren White is a wireless indoor siren that notifies of a detector activation with an audible alarm to scare off the intruders or draw attention to interference. The HomeSiren has three sound levels from 80 to 98 dB and a customizable audio time that can be set in the mobile application.
The HomeSiren siren operates only with the Ajax system, connected to the hub via the protected Jeweller protocol.
Compatible with all Ajax hubs and range extenders. Connection to ocBridge Plus and uartBridge integration modules is not provided.
Product Code: 8697.11.WH1
FEATURES OF THE AJAX HOMESIREN:
- Wireless Indoor Siren
- Built-in battery (lasts up to 5 years)
- Communication range of 2000m (in an open space)
- Internal siren volume — three levels from 80 to 98 dB.
- Siren alarm time — from 3 seconds to 3 minutes.
- Indicates armed/disarmed state by means of a built-in LED

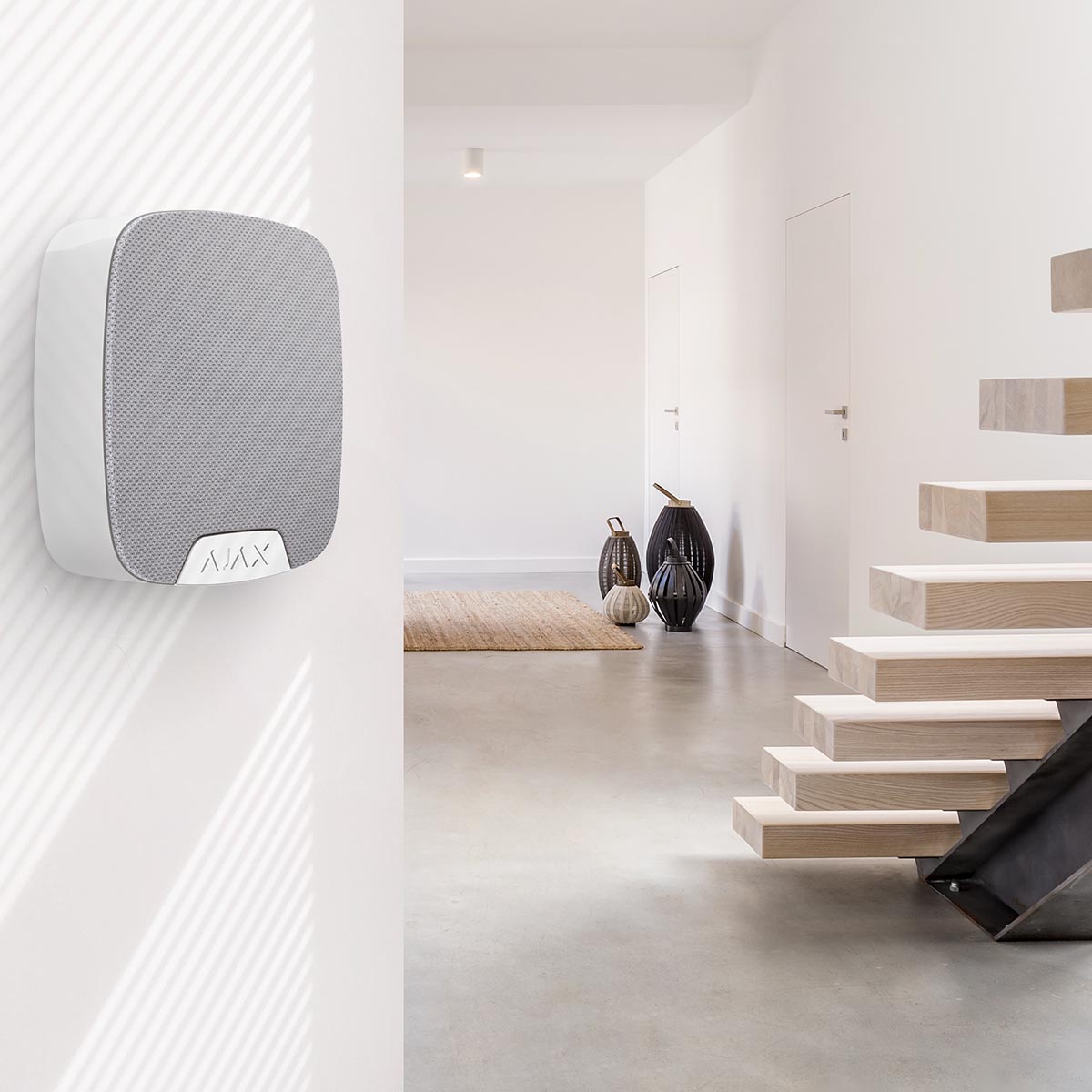

- Recommended installation height — 2.5 meters and more
- An external LED is connected to the siren, if necessary
- Up to 10 sirens may be connected to the Ajax hub.
- Tamper resistant
- Set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated)
- Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax HomeSiren comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector.
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
SPECIFICATIONS OF THE AJAX HOMESIREN:
| Compatibility | Operates with all Hubs and ReX range extenders |
| Classification | Radio channel security sounder |
| Type of siren | Wireless |
| Type of notification | Sound |
| Installation method | Indoors |
| Connector for external LED | Available |
| Sound volume level | Adjustable, 81−105 dB at a distance of 1 m |
| Alarm length | Adjustable, 3−180 s |
| Indication of armed/disarmed status | Yes |
| Alarm signal delivery time | 0.15 s |
| Power supply | 2 x CR123A batteries, 3V |
| Battery life | Up to 5 years |
| Communication range with central unit | Up to 2,000 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0−868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Device polling period | 12−300 s |
| Temperature sensor | Available |
| Operating temperature range | -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Protection class of body | IP50 |
| Protection against fraud | Yes |
| Jamming detection | Yes |
| Tamper-resistant | Yes |
| Remote setting and testing | Yes |
| Certification | Grade 2, CE |
| Product Dimensions | 75 mm х 76 mm х 27 mm |
| Product Weight | 97g |
| Packaging Dimensions | 108 mm x 107 mm x 31 mm |
| Mass of unit packed | 225g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax HomeSiren White
