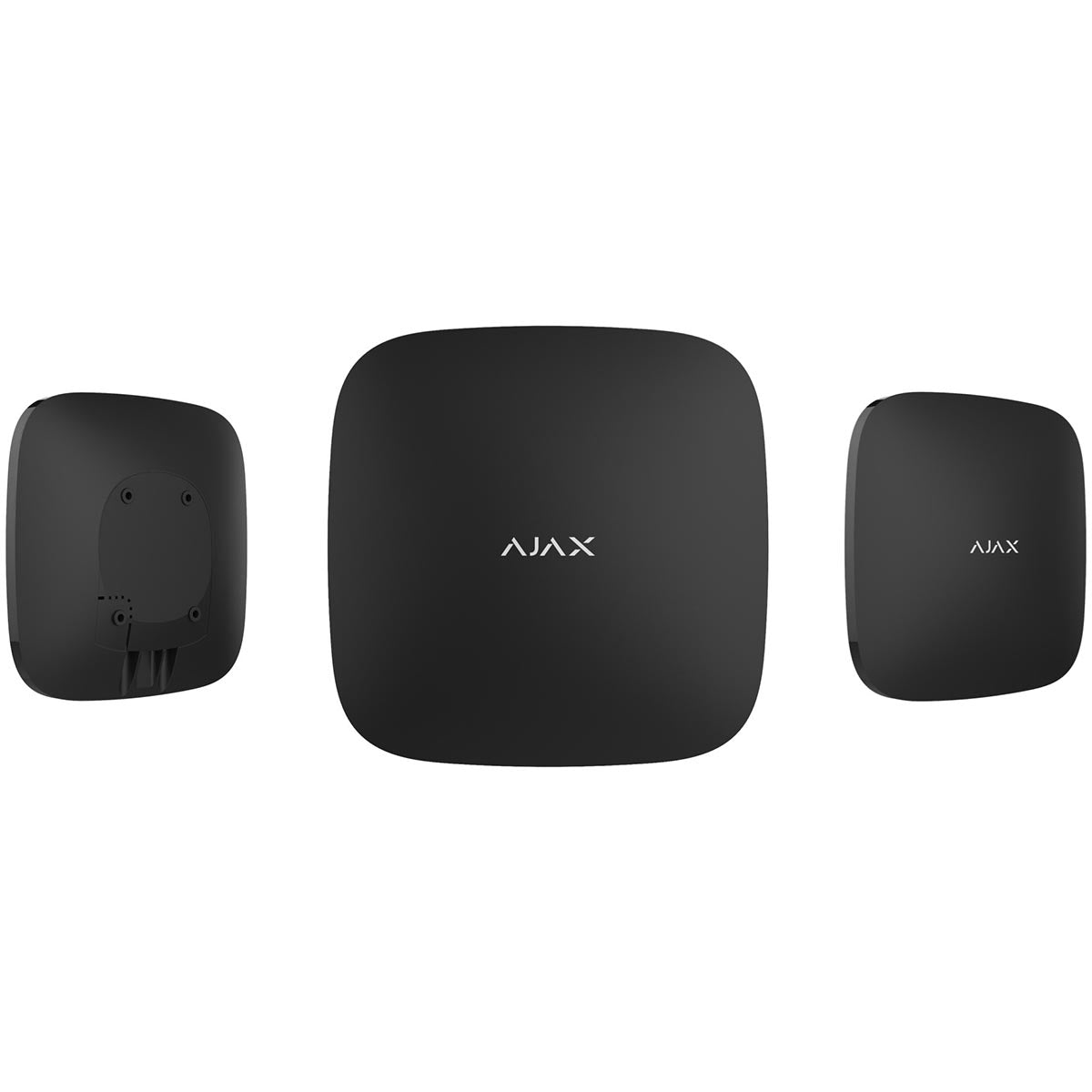

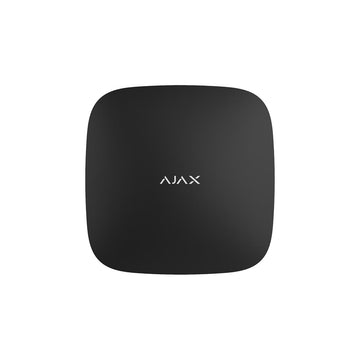

PRODUCT INFORMATION

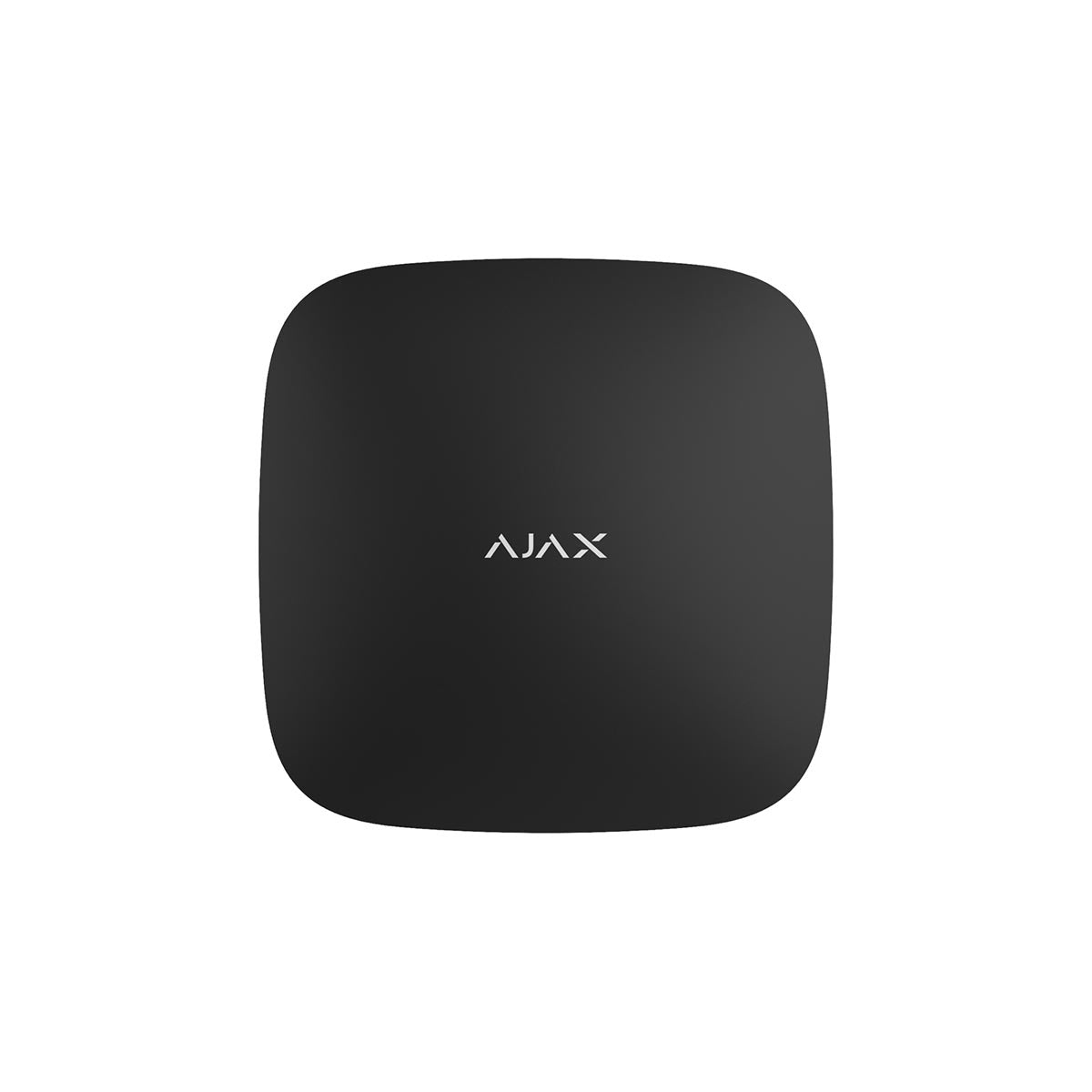

The Ajax Hub 2 4G Black manages all the Ajax devices in the system to alert users about open doors, broken windows, threats of fire and flooding. If burglars break into your facility, Hub 2 will notify the monitoring station and send photos from the MotionCam detectors.
Hub 2 works with MotionCam and MotionCam Outdoor motion detectors. When detectors are triggered, they take a series of photos. Visual verification helps you instantly assess the situation, relieving users of unnecessary anxiety and security companies from false calls of patrols.
Hub 2 can be simultaneously connected to three Internet service providers — via Ethernet cable and 2G, 3G, and LTE 2 cellular networks. The automatic switching between channels takes seconds.
Product Code: 33151.108.BL1
FEATURES OF THE AJAX HUB 2 4G:
- Up to 100 detectors
- Up to 25 cameras
- Up to 50 app users
- Up to 9 security groups
- Up to 32 scenarios
- Communication range is 2000 m without obstacles (walls, doors, or inter-floor constructions).
- Up to 16 hours of backup battery life
- Guaranteed delivery of alarms and visual alarm verifications
- Always connected – via cable and cellular networks
- Resistant to sabotage – Tamper alarm, Jamming detection
- The Ajax system informs the user about alarms and events in three ways: push notifications, SMS, and phone calls.
- Easy installation and setup
INSTALLATION AND SET-UP
Hub 2 4G is ready to operate out of the box.
All communication modules, power supply, and backup battery are already installed. To start setting up the system, you need to connect the device to the power supply and the Internet, insert the SIM cards, and scan the QR code through the app.
With the SmartBracket mounting panel, there is no need to disassemble the device body during installation.

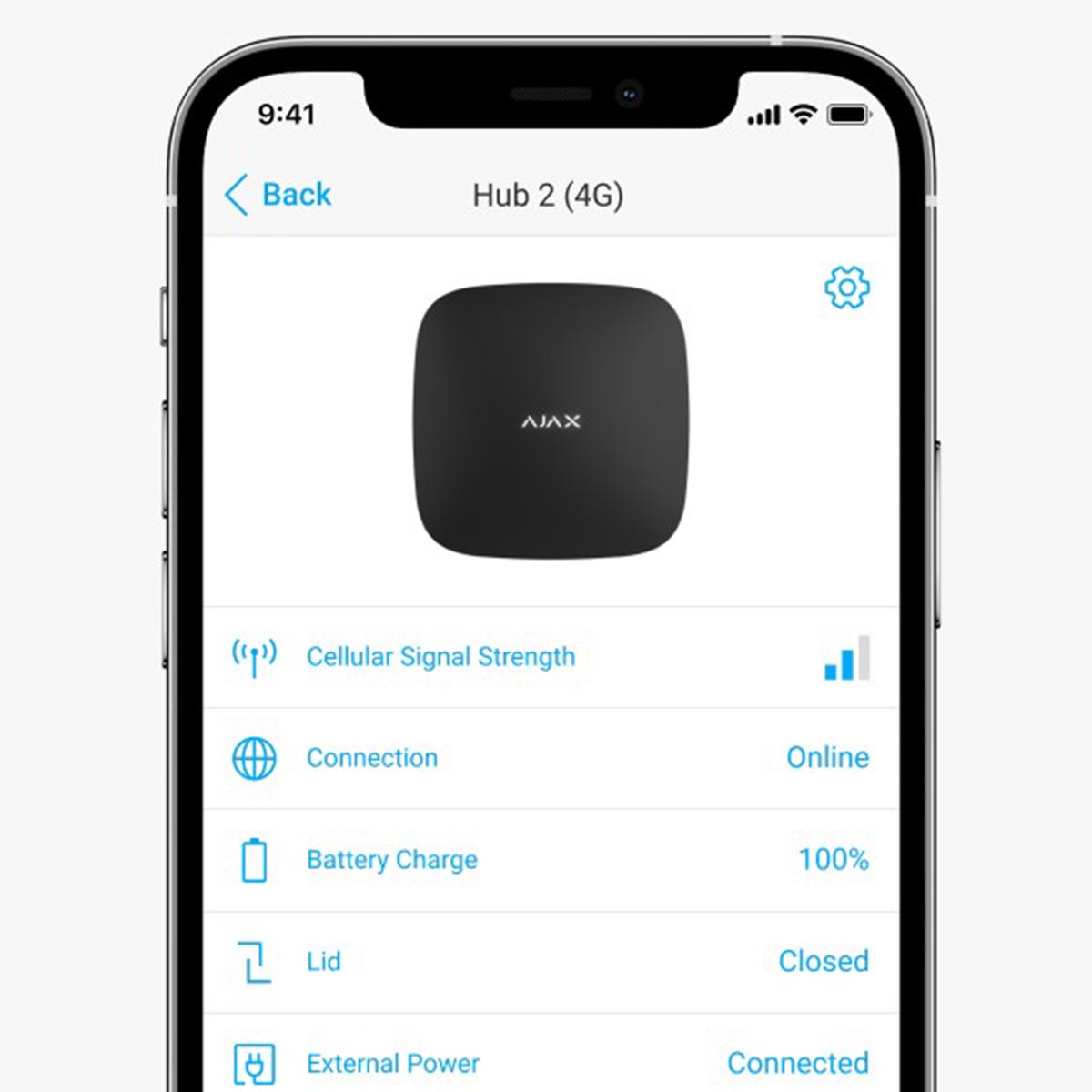

Connecting security devices, video cameras, users, testing the radio signal, creating groups and scenarios, even sending a request for connection to the CMS — all system settings are always available in the Ajax apps. Whether you are at the site or not.
SPECIFICATIONS OF THE AJAX HUB 2 4G:
| Classification | Security system control panel |
| Colour | Black |
| Installation type | Indoors |
| Maximum number of connected devices | 100 |
| Maximum number of connected radio signal range extenders | Up to 5 |
| Video surveillance support | Up to 25 cameras or DVRs |
| Users | Up to 50 |
| Rooms | Up to 50 |
| Scenarios | Up to 32 |
| Security Groups | Up to 9 |
| Communication Channels | Ethernet |
| Two SIM cards | |
| 2G (GSM900/DCS1800 (B3/B8)) | |
| 3G (WCDMA 850/900/2100 (B1/B5/B8)) | |
| LTE (FDD B1/B3/B5/B7/B8/B20 | |
| Alarm delivery time | 0.15 sec |
| Types of notifications | Push notifications, Phone calls, SMS(types of notifications depend on user settings) |
| Sending photo in case of an alarm | Photo delivery time under default settings - up to 9 seconds |
| Photo resolution | Up to 640×480 pixels |
| Switching between 2G, 3G, LTE | Instantly - available only on Hub 2 (4G) |
| Switching between SIM cards | 4 minutes |
| Support of CMS communication protocols | Sur-Gard (Contact ID), SIA (DC-09), proprietary protocols |
| Support of monitoring software | PRO Desktop |
| Operating system | OS Malevich |
Power supply |
110−240 V, 50/60 Hz |
| Built-in back-up battery | Li-Ion 2 Аh (Up to 16 h of battery life with Ethernet disabled) |
| Energy consumption from the grid | 10 W |
| Communication range | Up to 2000 meters in a line of sight |
| Two-way communication between devices | Yes |
| Radio frequency bands | 868.0 – 868.6 MHz |
| Auto-regulated radio signal power | ≤ 20 mW |
| Blocking encryption based on the AES algorithm | Yes |
| Detector ping interval | 12 - 300 seconds |
| Frequency hopping | Yes |
| Transmission of a series of photos | Yes |
| Transmission of photos by request | Yes |
| Protection class | IP50 |
| Operating temperature range | From -10° to +40° |
| Operating humidity | Up to 75% |
| Forgery prevention | Yes |
| Notifications about jamming | Yes |
| Tamper to detect back lid opening and unmounting from SmartBracket | Yes |
| Remote configuration | Yes |
| Product Dimensions | 163 mm x 163 mm x 36 mm |
| Product Weight | 362g |
| Packaging Dimensions | 239 mm x 189 mm x 52 mm |
| Mass of unit packed | 850g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax Hub 2 (4G) Black
