PRODUCT INFORMATION

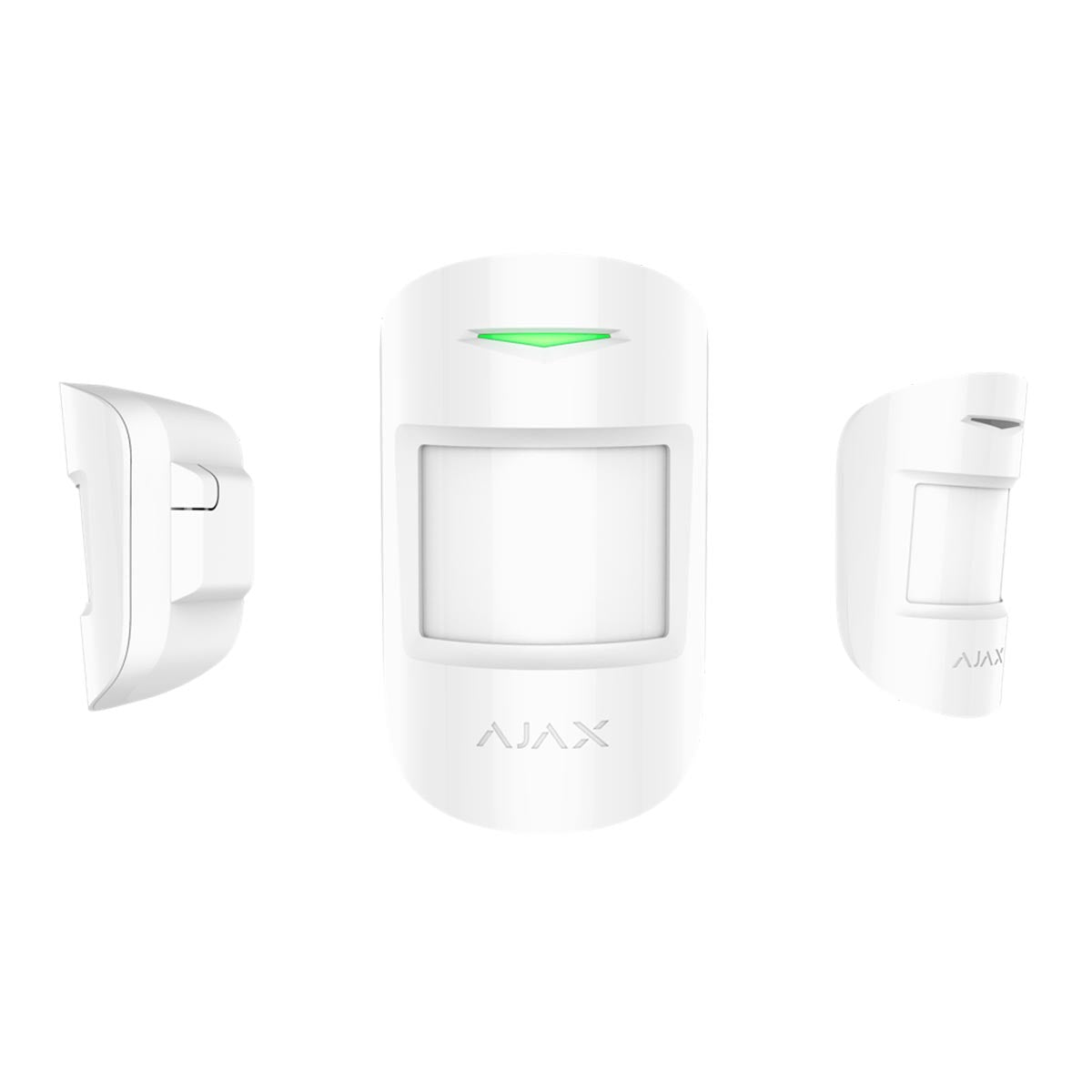

The Ajax MotionProtect White is a wireless indoor motion detector that detects human presence by using a passive IR sensor. It can operate for up to 5 years from a built-in battery and monitors the area within a 12-meter radius. MotionProtect ignores animals, while recognizing a human from the first step.
Please note: MotionProtect operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Operates with all Ajax hubs, Ajax ReX, Ajax ocBridge Plus and Ajax uartBridge.
Product Code: 5328.09.WH1
FEATURES OF THE AJAX MOTIONPROTECT:
- Wireless motion detector
- Built-in battery (lasts up to 5 years)
- Monitors an area within a 12m radius
- Communication range of 1700m (in an open space/line of sight)
- Pet Immune (ignores pets with weight of up to 20 kg and height up to 50 cm)
- Accurately detects motion in heat conditions, even at a temperature of +40°С
- Detector can be used as a part of third-party security central units via the uartBridge or ocBridge Plus integration modules.
- Detector is set up via the Ajax app for iOS, Android, macOS and Windows
- System notifications delivered via push notifications, SMS and calls (if activated).
- Quick and Easy installation
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Tampering alarm
INSTALLATION AND SET-UP
The Ajax MotionProtect comes ready to operate straight out the box.

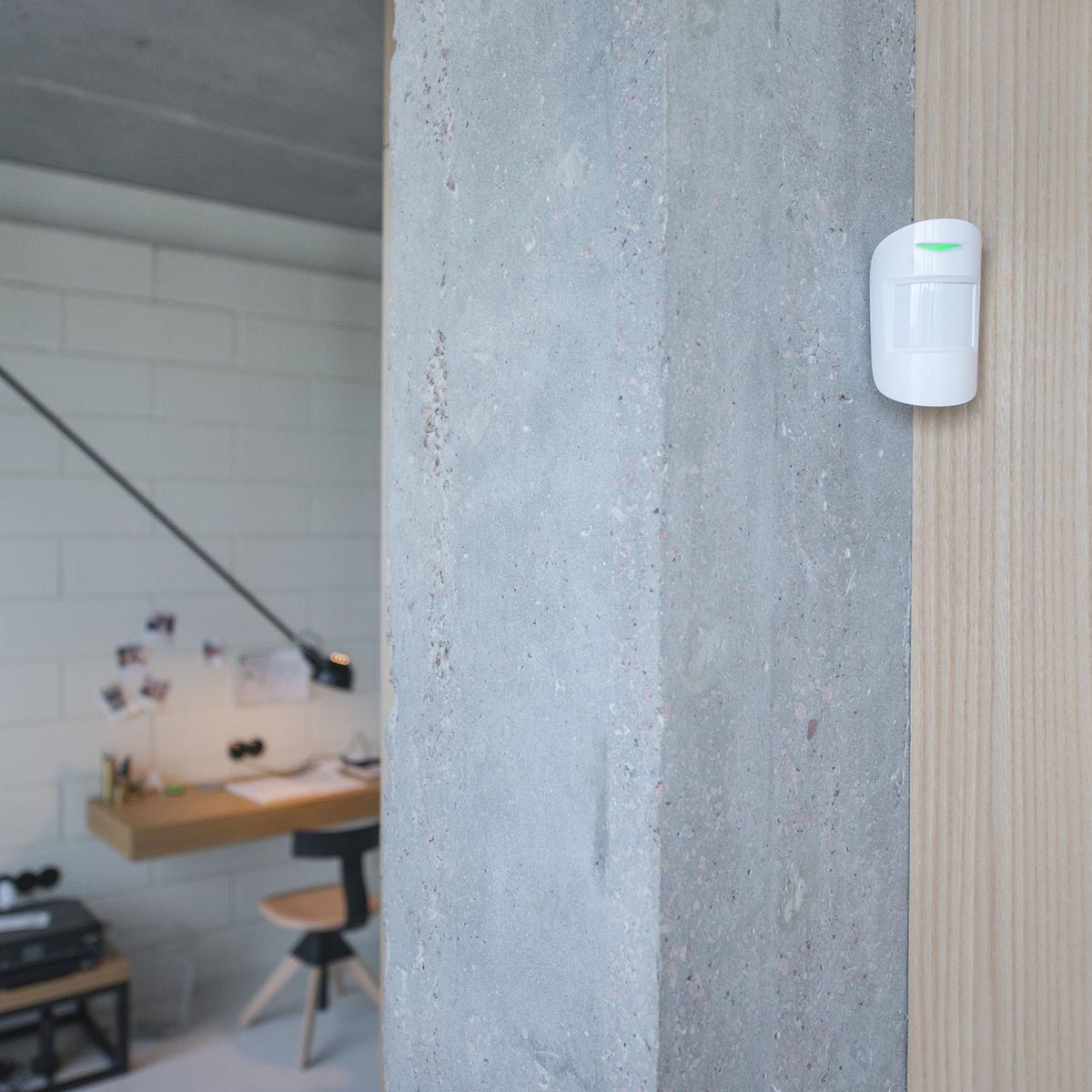

The battery is pre-installed, so there is no need to disassemble the detector. The Ajax MotionProtect can be mounted on the SmartBracket in just a few minutes and fastened to the wall in front of the doors and other places likely of intruder entry.
Connect the MotionProtect to the hub via the mobile application.
SPECIFICATIONS OF THE AJAX MOTIONPROTECT:
| Compatibility | Operates with all Ajax hubs, Ajax ReX, Ajax ocBridge Plus and Ajax uartBridge |
| Classification | Electro-optical combined radio channel security detector |
| Type of detector | Wireless |
| Installation method | Indoors |
| Sensing element | PIR sensor |
| Alarm signal delivery time | 0.15 s |
| Motion detection distance | Up to 12 m |
| Detection angles | Horizontal: 88.5° and Vertical: 80° |
| Time for motion detection | From 0.3 to 2 m/s |
| Sensitivity | Adjustable, 3 levels |
| Recommended installation height | 2.4 m |
| Pet immunity | Weight: Up to 20 kg and Height: Up to 50 cm |
| Power supply | CR123A battery, 3V |
| Battery life | Up to 5 years |
| Communication range with central unit | Up to 1,700 m in an open space |
| Two-way communication between devices | Yes |
| Operating frequencies | 868.0—868.6 MHz |
| Self-adjusting RF output power | Up to 20 mW |
| Block encryption based on AES algorithm | Yes |
| Device polling period | 12−300 s |
| Temperature sensor | Available |
| Operating temperature range | From -10°С to +40°С |
| Permissible humidity | Up to 75% |
| Remote setting and testing | Yes |
| Certification | Grade 2, CE |
| Product Dimensions | 110 mm х 65 mm × 50 mm |
| Product Weight | 86 g |
| Packaging Dimensions | 115 mm x 77mm x 65mm |
| Mass of unit packed | 200g |
| Warranty | 24 months limited Manufacturer’s warranty. The warranty does not cover batteries. |
WHAT’S IN THE BOX:
1 x Ajax MotionProtect White
