PRODUCT INFORMATION

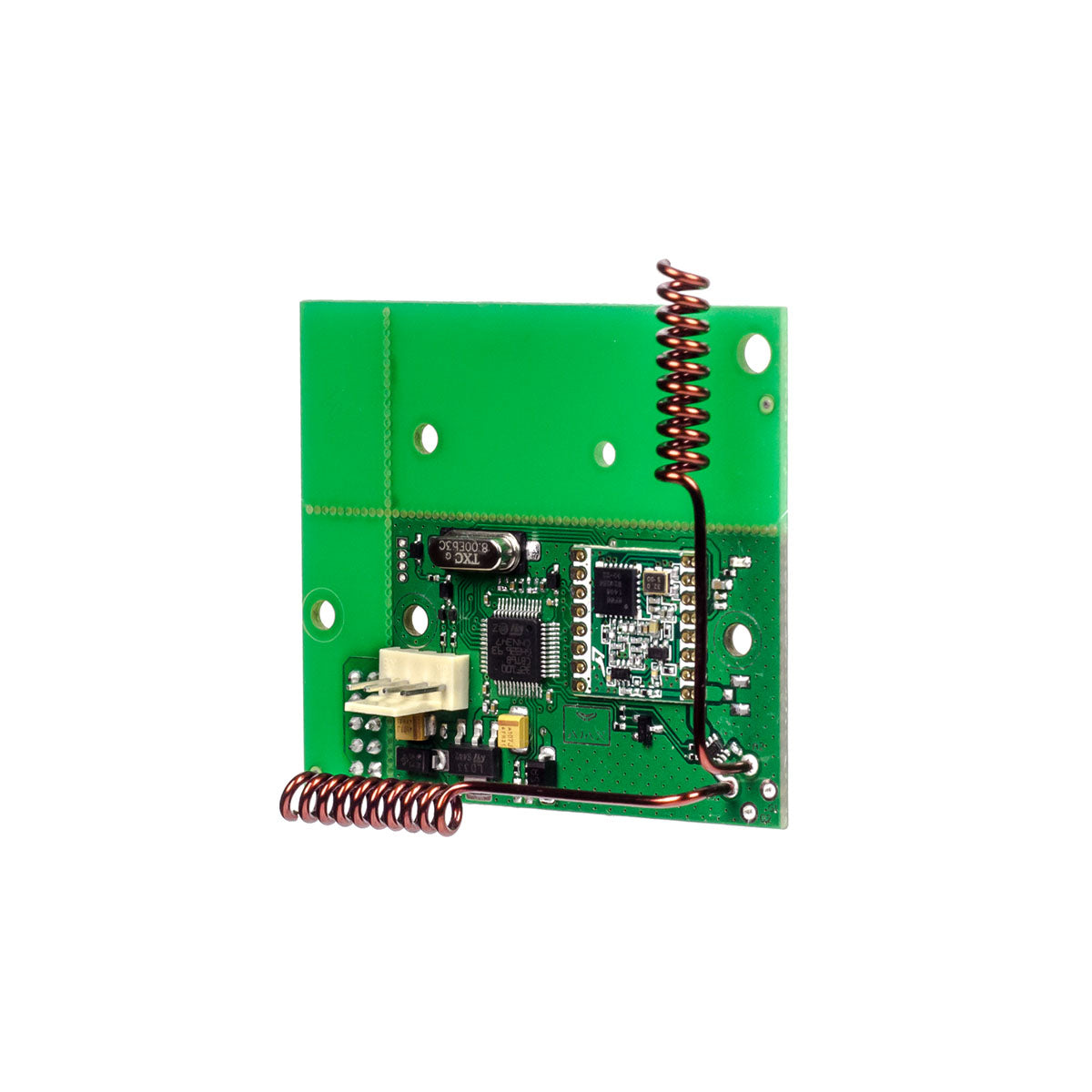

The Ajax uartBridge Wireless Alarm Receiver Module can be used to integrate with third-party wireless security and smart home systems.
A wireless network of smart and secure Ajax detectors can be added to a third-party security or smart home system through the UART interface.
Product Code: 5260.15.NC1
Please note: Connection to Ajax Hubs is not supported.
The Ajax uartBridge Wireless Alarm Receiver Module is compatible with Ajax MotionProtect, Ajax MotionProtect Plus, Ajax DoorProtect, Ajax SpaceControl, Ajax GlassProtect, Ajax CombiProtect, Ajax FireProtect, Ajax FireProtect Plus and Ajax LeaksProtect.
FEATURES OF THE AJAX UARTBRIDGE RECEIVER MODULE:
- Authentication to prevent forgery
- Jamming detection and communication channels encryption
- Two-way communication
- Principle of operation is when the detector activates, the device sends the information to the central unit, which raises an alarm.
- The device is set via UART interface, which provides a wide range of possibilities for those who like to program their own ideas.
- The device is installed into the body of the wired central units and hubs of smart home systems.
SPECIFICATIONS OF THE AJAX UARTBRIDGE RECEIVER MODULE:
| Compatibility | Ajax MotionProtect, Ajax MotionProtect Plus, Ajax DoorProtect, Ajax SpaceControl, Ajax GlassProtect, Ajax CombiProtect, Ajax FireProtect, Ajax FireProtect Plus and Ajax LeaksProtect |
| Classification | Receiver of wireless detectors’ signal |
| Interface | UART |
| Type of detector | Wireless |
| Installation method | Indoors |
| Compatibility | Wired security systems and smart home systems |
| Maximum number of detectors | 85 |
| Alarm signal delivery time | 0.15s |
| Power supply voltage | 5V DC |
| Communication range with detectors | Up to 2,000m in an open space |
| Two-way communication with detectors | Yes |
| Operating frequencies | 868.0 - 868.6 MHz |
| Self-adjusting RF output power | Up to 25 mW |
| Block encryption based on AES algorithm | Yes |
| Device polling period | 12 – 300s |
| Operating temperature range | -10°С to +40°С |
| Permissible humidity | Up to 90% |
| Anti-sabotage | Protection against fraud jamming detection |
| Certification | CE |
| Product dimensions | 64mm x 55mm x 13mm |
| Product weight | 32g |
| Packaging dimensions | 130mm x 90mm x 50mm |
| Mass of unit packed | 50g |
| Warranty | 24 months limited Manufacturer's warranty |
WHAT’S IN THE BOX:
1 x Ajax uartBridge Receiver Module
