PRODUCT INFORMATION
Centurion 4 Meter Nylon Raz Rack Bundle For Sliding Gates up to 500kg

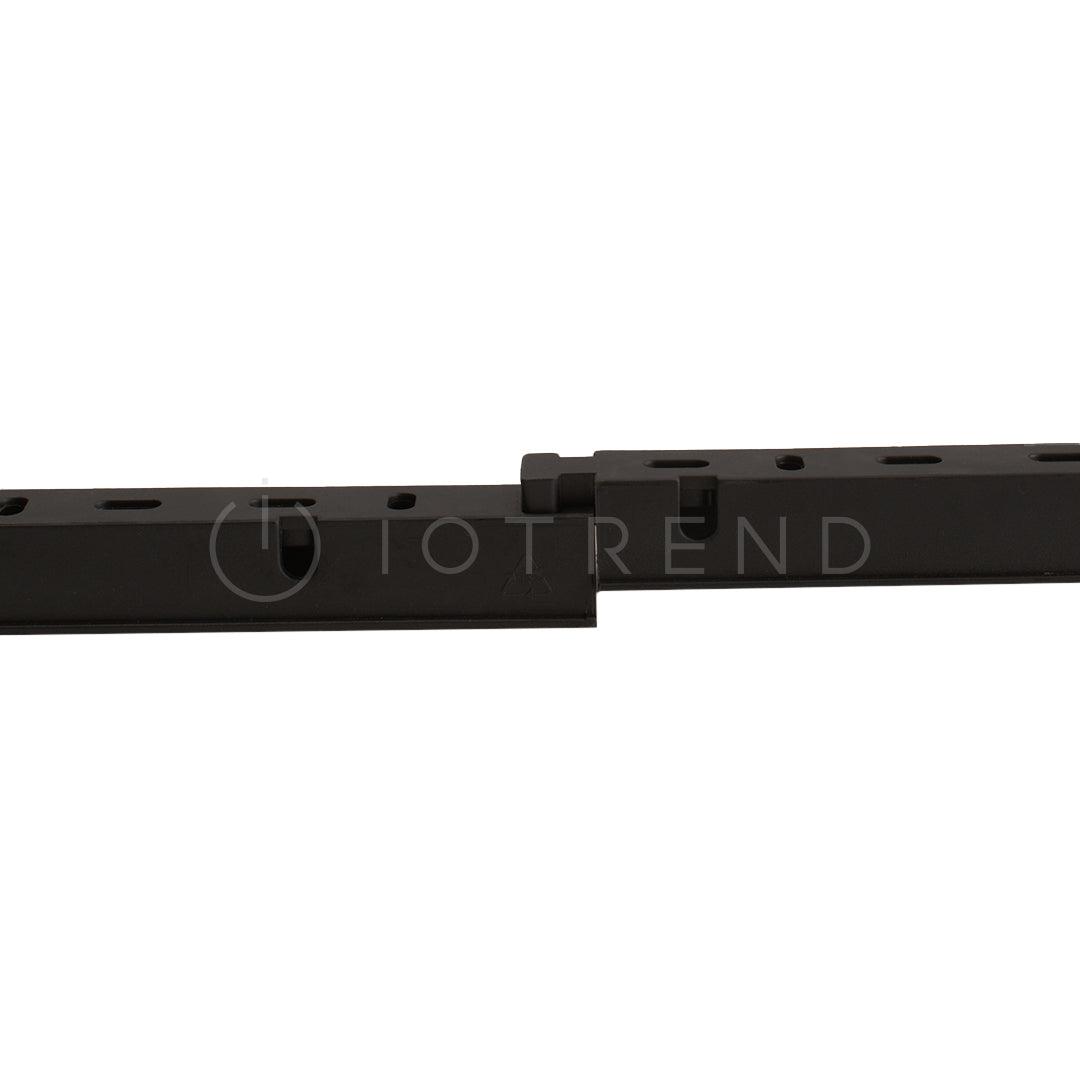

Centurion 4 Meter Nylon Raz Rack bundle consists of 8 x 500mm interlocking pieces.
APPLICATIONS
Suitable for sliding gates not exceeding 500kg and can be fitted with the following motors:
• Centurion D2
• Centurion D3
• Centurion D5
• Centurion D5 Evo
• Centurion D5 Smart
• ET Drive 300
• ET Drive 500
FEATURES
- Mounting holes are slotted for easy adjustment
- Interlocking pieces can easily be removed and replaced
- Universal for most sliding gates
- Silent gate operation
SPECIFICATIONS
| Brand | Centurion |
| Rack type | Interlocking |
| Material | Nylon |
| Length | 8 x 500mm |
| Rack dimensions | 500mm(L) x 30mm(W) x 53mm(H) x 8 |
| Packaging dimensions | 550mm(l) x 120mm(w) x 95mm(h) |
| Mass of units packed | 2.75kg |
| Warranty | Manufacturers carry in product warranty |
INSTRUCTIONS FOR USE
MAINTENANCE AND CARE
• Check that all interlocking pieces are properly secured to the gate
• Inspect nylon teeth for worn out or broken tooth and replace sections if necessary
WARNINGS AND LIMITATIONS
Ensure that the correct spacing is applied between the motor pinion and the rack to ensure a smooth opening and closing of the gate.
WHAT'S IN THE BOX
8 x 500mm Centurion Nylon Raz rack
24 x Tex screws (8 x 25mm)
