PRODUCT INFORMATION

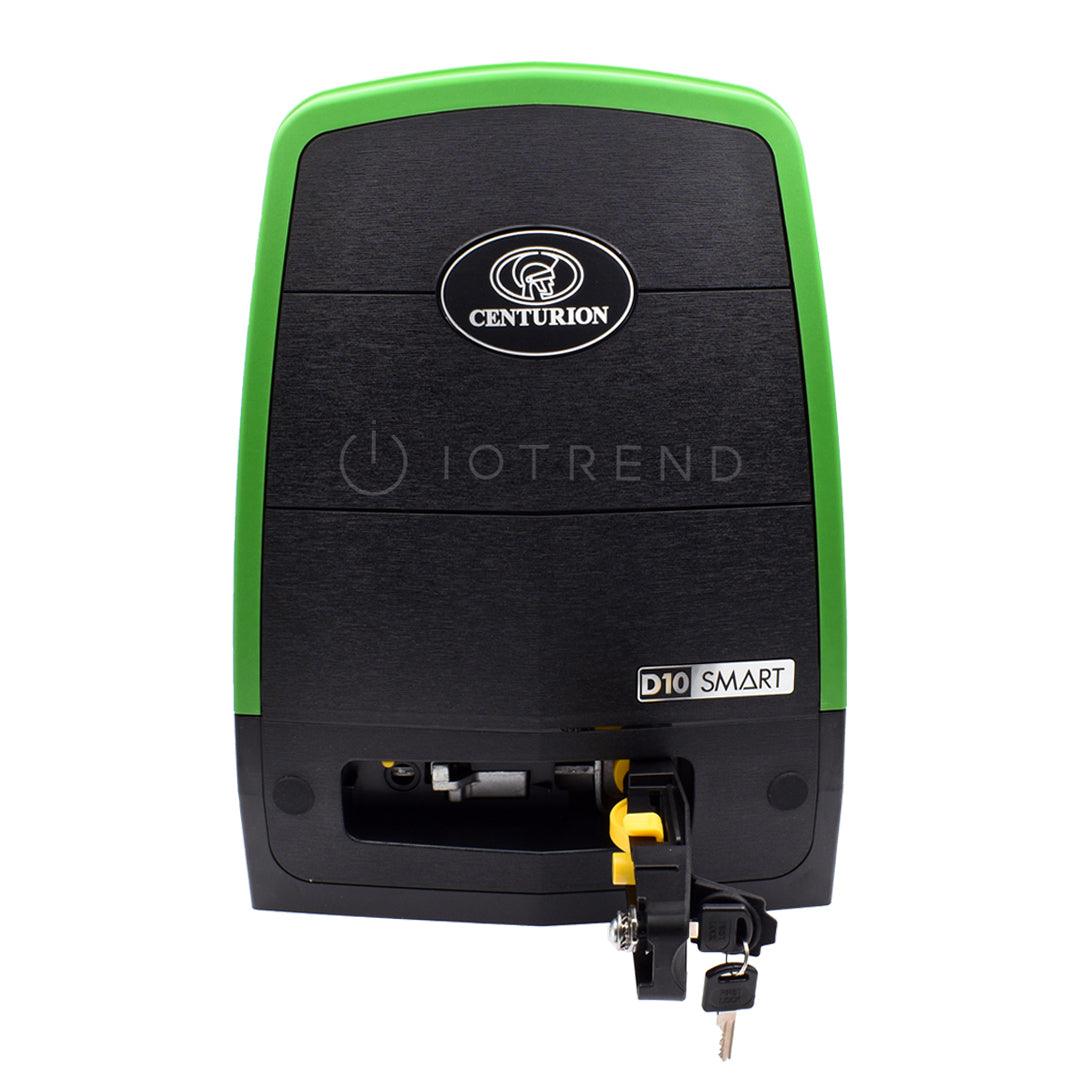

The Centurion D10 SMART Sliding Gate Motor with Remotes is a legendary high-volume performer that combines sleek design with speed, security, endurance and reliability.
Thanks to the powerful 24V motor and robust die-cast aluminium gearbox, the D10 SMART sliding gate motor packs a potent punch, providing excellent security on sites ranging from townhouse complexes and residential estates to busy office parks and warehouse facilities.
Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.
The D10 SMART sliding gate motor is suitable for gates with a maximum weight of 1000kg.
Please note: Batteries are not included with the motor.
FEATURES OF THE D10 SMART MOTOR:
- Speed and Safety: The D10 Smart motor moves even the heaviest of gates in a flash, protecting against tailgating and ensures safe entry and exit to and from the premises.
- Smart hardware: Easy access to mounting hardware, backward compatibility (drop-in replacement) on existing D10 and A10 base plates, optimised cable routing and a dedicated accessory tray for complimentary solutions such as GSM modules.
- Smart connectivity and control: Set the gate limits, auto-close and unique profiles for everyone using the gate with the user-friendly smartphone app.
- Smart security: Built-in vibration sensor can be connected to a third-party device to notify you if the gate motor is being tampered with.
- Uninterrupted security and convenience: The D10 SMART motor comes with a dependable 24V battery backup system. (Batteries not included)
- Wireless, Effortless Safety: Compatible with Photon SMART Beams for a complete wireless experience
- Easy Installation: Saving installers time and effort with its industry-leading design
ACCESSORIES FOR CENTURION D10 GATE MOTOR (OPTIONAL EXTRA)
- Batteries: 2 x 12V 7.2AH SLA Batteries or 2 x 12V 8AH Gel Batteries
- Steel Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra 4G Intercom Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel (Flux SA)
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Centurion D10 SMART Anti Theft Bracket
- Gooseneck
- Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile and GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Centurion SMART PowerPack
- Clearline Gate Motor Lightning and Surge Protector
SPECIFICATIONS OF THE D10 SMART MOTOR:
| Input voltage | 90V - 240V AC ± 10% @ 50Hz (1) |
| Current consumption (Mains) | 250mA |
| Battery charger current output | 1.8A @ 27.4V ± 1% |
| Maximum number of operations per day | 750 (3,6) |
| Duty cycle - Mains present | 45% |
| Motor voltage | 24V DC |
Motor power supply |
Battery-driven (Standard Capacity - 2 x 12V 7.2Ah) |
| Current consumption (motor at rated load) | 8A |
| Input / Output sink currents (Max accessory current draw) | I/O 1-4: 100Ma (12/24V) | I/O 5 and 6: 3A (12/24V) 10sec Pulse |
| Motor push force - starting | 40kgf |
| Motor push force – rated | 30kgf |
| Gate mass - maximum | 1000kg |
| Gate length - maximum | 50m |
| Gate speed (varies with load) (4) | Up to 26m/min (4) |
| Manual Override | Lockable with key release |
| Drive Pinion | 17T Module 4 |
| Operations in standby with 2 x 7Ah batteries | Power Saving 15m/min 15kgf – Half day (2,5,6): 118 | Full day (2,5,6): 93 |Normal 26m/min 15kgf - Half day (2,5,6): 63 | Full day (2,5,6): 50 |
Collision Sensing |
Electronic |
| Operating temperature range | -15°C to +50°C |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity | 1500 Remote buttons (7) |
| Receiver frequency | 433.92Mhz |
| Degree of protection | IP54 |
| Product Dimensions (Motor only) | 205 mm (L) x 295 mm (W) x 390 mm (H) |
| Product Weight | |
| Packaging Dimensions (excluding rack and battery) | 282 mm (L) x 350 mm (W) x 470 mm (H) |
| Mass of unit packed | 13000g |
| Warranty | 24 Months limited Manufacturer's warranty |
Additional information pertaining to the Centurion D10 SMART motor specifications:
1. Can operate off a solar supply
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
Warnings and Limitations on the Centurion D10 SMART Motor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Centurion D10 SMART Sliding Gate Motor
2 x Centurion Nova 4 Button Remotes
1 x Base Plate
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
