PRODUCT INFORMATION
The Centurion D3 SMART Sliding Gate Motor with battery combines sleek design and premium performance with intelligent features, making secure and reliable gate automation accessible to everyone.
The D3 SMART sliding gate motor is packed with advanced – yet intuitive and user-friendly – functionality to make your life easier.
Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.
With the D3 SMART sliding gate motor being Installer-friendly, feature-rich, and budget-conscious, it’s the smarter choice for your home.
Suitable for gates with a maximum weight of 300kg.
Included with the Centurion D3 Gate Motor is 1 x Securi-Prod 12V 7.2 SLA Battery, 2 x Centurion Nova 4 Button Remotes and a baseplate.
FEATURES OF THE D3 SMART MOTOR:
- Fast and Secure: Open your gate in a flash, keeping unwanted visitors at bay
- Smart Control: Manage your gate with maximum convenience and flexibility with the user-friendly smartphone app
- Easy Installation: Saving installers time and effort with the industry-leading design
- Reliable Performance: Never miss a beat with dependable battery-driven technology
- Intelligent Features: Advanced alerts, notifications and reporting keep you informed and in control
- Peace of Mind: Enjoy outstanding security with the improved theft-resistant cage
- Convenient Commissioning and Operation: Effortless smartphone setup and single-action manual release
- Wireless, Effortless Safety: The D3 Smart sliding motor is compatible with Photon SMART Beams for a complete wireless experience
ACCESSORIES FOR CENTURION D3 SLIDING GATE MOTOR (OPTIONAL EXTRA)
- Batteries: 1 x 12V 8AH Gel Battery
- Nylon Raz Rack, Steel Rack, Nylon Angle Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra GSM Intercom Ultra 4G Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel (Flux SA)
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Centurion D3 SMART Anti Theft Bracket
- Gooseneck
- Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile, GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Clearline Gate Motor Lighting and Surge Protector
SPECIFICATIONS OF THE D3 SMART MOTOR:
| Input voltage(1) | 110V - 240V AC 50/60Hz (1) |
| Current consumption (mains) | 320mA peak |
| Dx12V Battery charger current output | 1.8A @ 14.3V +/- 5% (28W) |
| Maximum number of operations per day | 20 (3,6) |
| Duty cycle - Mains present (2,3) | 25% |
Motor power supply |
Battery-driven (Standard Capacity - 1x12V) |
| Current consumption (motor at rated load) | 11A |
| Fuse Protection | Type | Rating |
| Main Control Card | Serviceable | 35A |
| Aux. Supply | Resettable Fuse | 12V 300mA MAX (10sec Pulse) |
| Charger (Mains Supply) | Non-serviceable | 3A slow-blow |
| Motor push force – starting | 18kgf |
| Motor push force – rated | 12kgf |
| Gate mass – maximum | 300kg |
| Gate speed (varies with load) (4) | Maximum: Up to 24m/min Rated: Up to 21m/min |
| Manual Override | Lockable with key release |
| Operations whilst in Battery backup mode with 7.2Ah Battery | Operating Mode |
| Up to 24m/min 7kgf | Up to 24m/min 12kgf | |
| Half day (5,6,8) | 90 | 80 |
| Full day (5,6,8) | 70 | 65 |
| Collision Sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| Onboard receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity | 32 Remotes (7) |
Receiver frequency |
433.92MHz |
| Degree of protection | IP55 |
| Packaging Dimensions | 320 mm (L) x 240 mm (W) x 520 mm (H) |
| Mass of unit packed | 12550g |
| Warranty | 24 months limited Manufacturer’s warranty (excludes battery) |
This equipment is compliant with the radiated emissions requirements of EN 55032 / CISPR 32 for Class B devices, which intends to offer adequate protection to broadcast services within the residential environment.
Additional information pertaining to the Centurion D3 Smart sliding gate motor specifications:
1. Can operate off a solar supply
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase Battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
8. Dependent on the type and condition of the Battery
Warnings and Limitations on the Centurion D3 Smart Motor including battery:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.

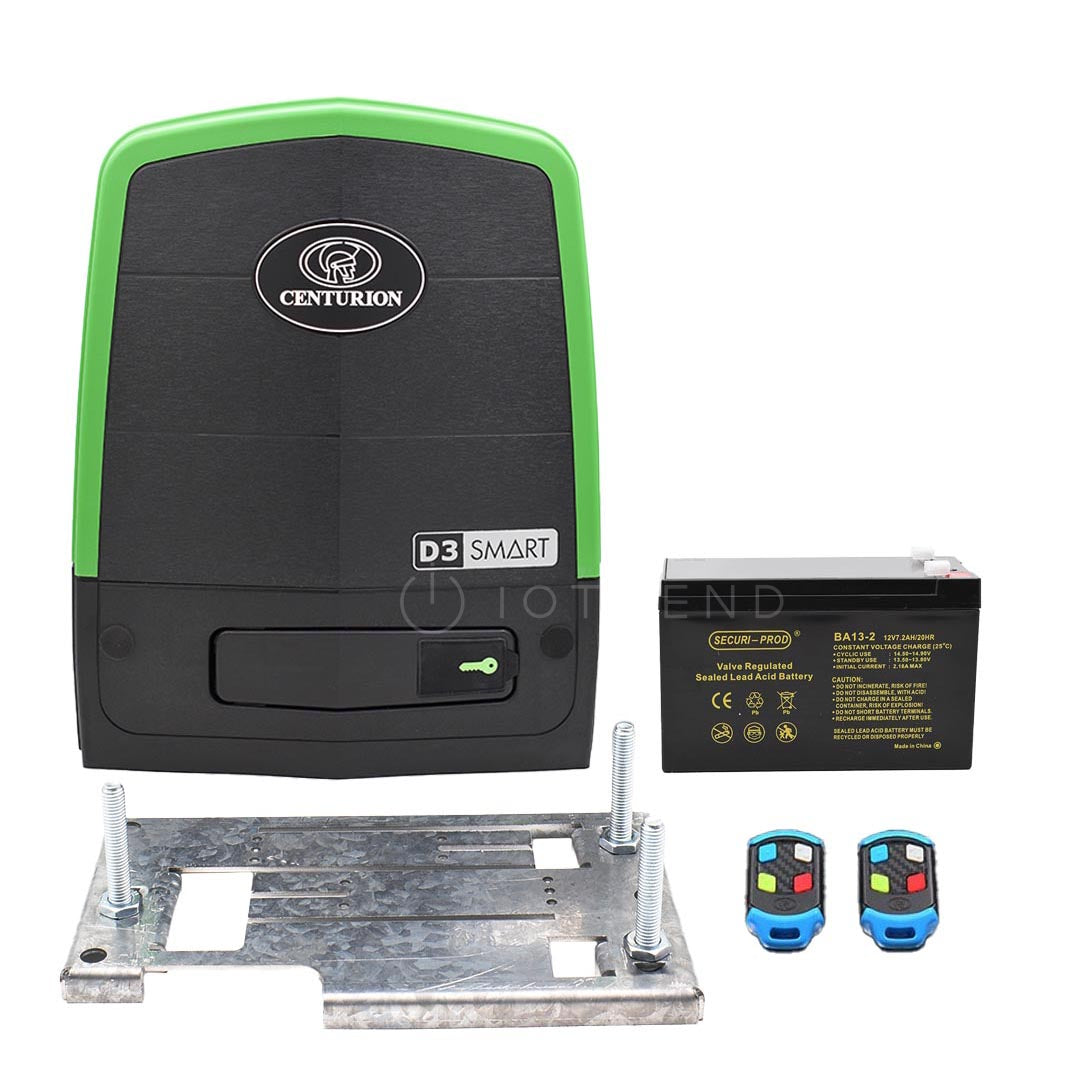

WHAT’S IN THE BOX:
1 x Centurion D3 SMART Sliding Gate Motor
1 x Base Plate
1 x Securi-Prod 12V 7.2AH SLA Rechargeable Battery
2 x Centurion Nova 4 Button Remotes
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
