PRODUCT INFORMATION
The Centurion D6 SMART Sliding Gate Motor Kit with Steel Rack and Anti-Theft Bracket combines sleek design and premium performance with intelligent features, making secure and reliable gate automation accessible to everyone.
The D6 SMART sliding gate motor is packed with advanced – yet intuitive and user-friendly – functionality to make your life easier.
Effortlessly control your gate with the MyCentsys Remote smartphone app, receive advanced diagnostic feedback for ultimate peace of mind, and enjoy dependable battery-driven technology that stands up to power outages.
The D6 SMART sliding gate motor is suitable for gates with a maximum weight of 600kg.

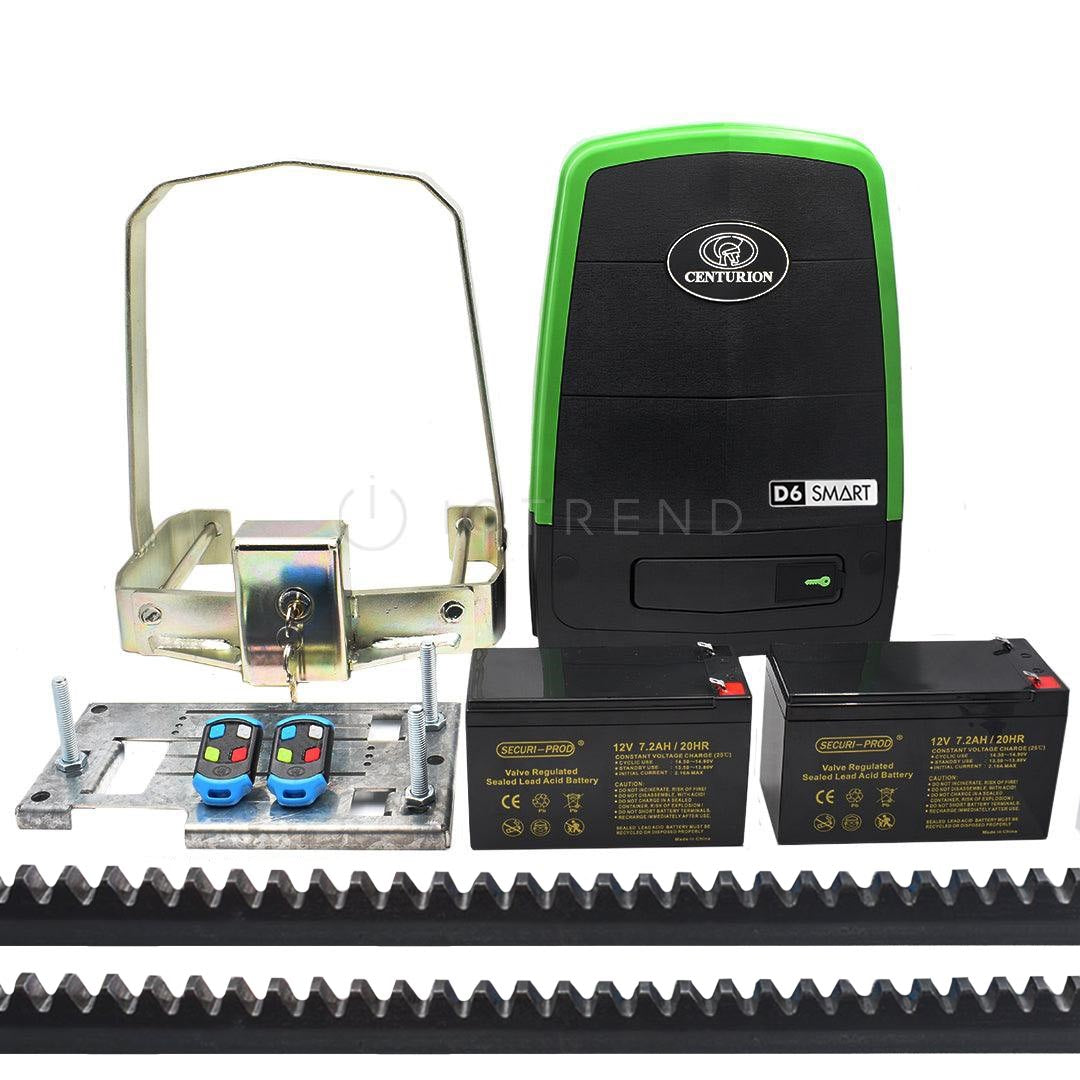

The Centurion D6 SMART Sliding Gate Motor Kit with Steel Rack and Anti-Theft Bracket Includes:
- 1 x Centurion D6 Smart Motor
- 1 x Baseplate
- 2 x Securi-Prod 12V 7.2AH SLA Batteries
- 2 x Centurion Nova 4 Button Remotes
- 2 x 2m Steel Rack (4 meters)
- 1 x Centurion D6 SMART Anti-Theft Bracket
FEATURES OF THE D6 SMART MOTOR:
- Speed and Safety: Open your gate in a flash as the D6 Smart can reach up to 36 meters per minute, striking the perfect balance between security and safety.
- Smart Control: Manage your gate with maximum convenience and flexibility with the user-friendly smartphone app
- Easy Installation: Saving installers time and effort with the industry-leading design
- Reliable Performance: Never miss a beat with dependable battery-driven technology
- Intelligent Features: Advanced alerts, notifications and reporting keep you informed and in control
- Peace of Mind: Enjoy outstanding security with the improved theft-resistant cage
- Convenient Commissioning and Operation: Effortless smartphone setup and single-action manual release
- Wireless, Effortless Safety: The Centurion D6 SMART Sliding Gate Motor is compatible with Photon SMART Beams for a complete wireless experience
- A Vibration sensor can be connected to a third party device to notify you in the event that the gate motor is being tampered with
ACCESSORIES FOR CENTURION D6 GATE MOTOR (OPTIONAL EXTRA)
- Batteries - 2 x 12V 8AH Gel Batteries
- Angle Nylon Rack, Raz Rack
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra GSM Intercom Ultra 4G Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- Gooseneck
- Gate wheels, 80mm V Profile, 80mm U Profile, 100mm V Profile, GateshoX 80mm
- Gate Mate Sliding Gate Brush Kit
- G-Ultra GSM Solution
- Centurion SMART PowerPack
- Clearline Gate Motor Lighting and Surge Protector
SPECIFICATIONS OF THE D6 SMART MOTOR:
| Input voltage(1) | 90V - 240V AC +/-10% @ 50Hz |
| Current consumption (mains) | 200mA |
| Battery charger current output | 1.3A |
| Maximum number of operations per day | 150 |
| Duty cycle - Mains present (2,3) | 50% |
Motor voltage |
24V DC |
| Motor power supply (5) | Battery-driven (Standard Capacity - 2x12V) |
| Current consumption (motor at rated load) | 13A |
| Input / Output sink currents (Max accessory current draw) | I/O 1-4: 100mA (12/24V) |
| I/O 5 and 6: 3A (12/24V) 10sec Pulse | |
| Motor push force – starting | 30kgf |
| Motor push force – rated | 17kgf |
| Gate mass – maximum | 600kg |
| Gate length – maximum | 100m |
| Gate speed (varies with load) (4) | 35m/min @ 17kgf |
| Manual Override | Lockable with key release |
| Operations in standby with 2 x 7Ah (28W) battery | Half day (5, 6): 209 (Power Saving)/ 102 (Normal) |
| Full day (5, 6): 183 (Power Saving)/ 79 (Normal) | |
Collision Sensing |
Electronic |
| Operating temperature range | -15°C to +50°C |
| On-board receiver type | Code-hopping multichannel receiver with selective add and delete |
| Receiver code storage capacity (7) | 1500 Remotes |
| Receiver frequency | 433.92MHz |
| Degree of protection | IP55 |
| Packaging Dimensions | 2000 mm (L) x 330 mm (W) x 470 mm (H) |
| Mass of unit packed | 25400g |
| Warranty | 24 months limited Manufacturer’s warranty (excludes batteries) |
Additional information pertaining to the D6 Smart motor specifications:
1. Can operate off a solar supply
2. Based on 25°C ambient temperature and unit not in direct sunlight
3. Based on a motor push force of less than 50% of rated (Starting and Running forces)
4. Gate opening and closing speeds can be configured to run slower depending on the requirements of individual installations
5. Can increase Battery capacity for longer standby times
6. Based on 4m gate, excluding all accessories
7. Multiple buttons per remote can be used
Warnings and Limitations on the Centurion D6 Smart Motor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Centurion D6 SMART Sliding Gate Motor
1 x Base Plate
2 x Securi-Prod 12V 7.2AH SLA Rechargeable Batteries
2 x Centurion Nova 4 Button Remotes
2 x 2m Steel Rack (4 meters)
1 x Centurion D6 Smart Anti-Theft Bracket
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
