PRODUCT INFORMATION
The Centurion SMART Vantage 400 Double Swing Gate Motor Kit is a sleek, stylish, secure and sturdy linear swing gate motor kit for domestic and light-industrial swing gates that allows for effortless control and intelligent automation at your fingertips with the intuitive MyCentsys Remote mobile app.
It offers heavy-duty reliability with its tough die-cast aluminium armour and powerful piston-driven operation. The SMART Vantage operators also have a low-profile design with in-line construction of the motor, gearbox and actuating piston, thus enhancing the aesthetic appearance.
It is an exceptionally strong set of operators for gates up to 4m wide that comes standard with battery backup and a vast spectrum of cutting-edge features and an abundance of customising options – from safety to security and functionality to flexibility – the SMART Vantage is a complete gate access package.

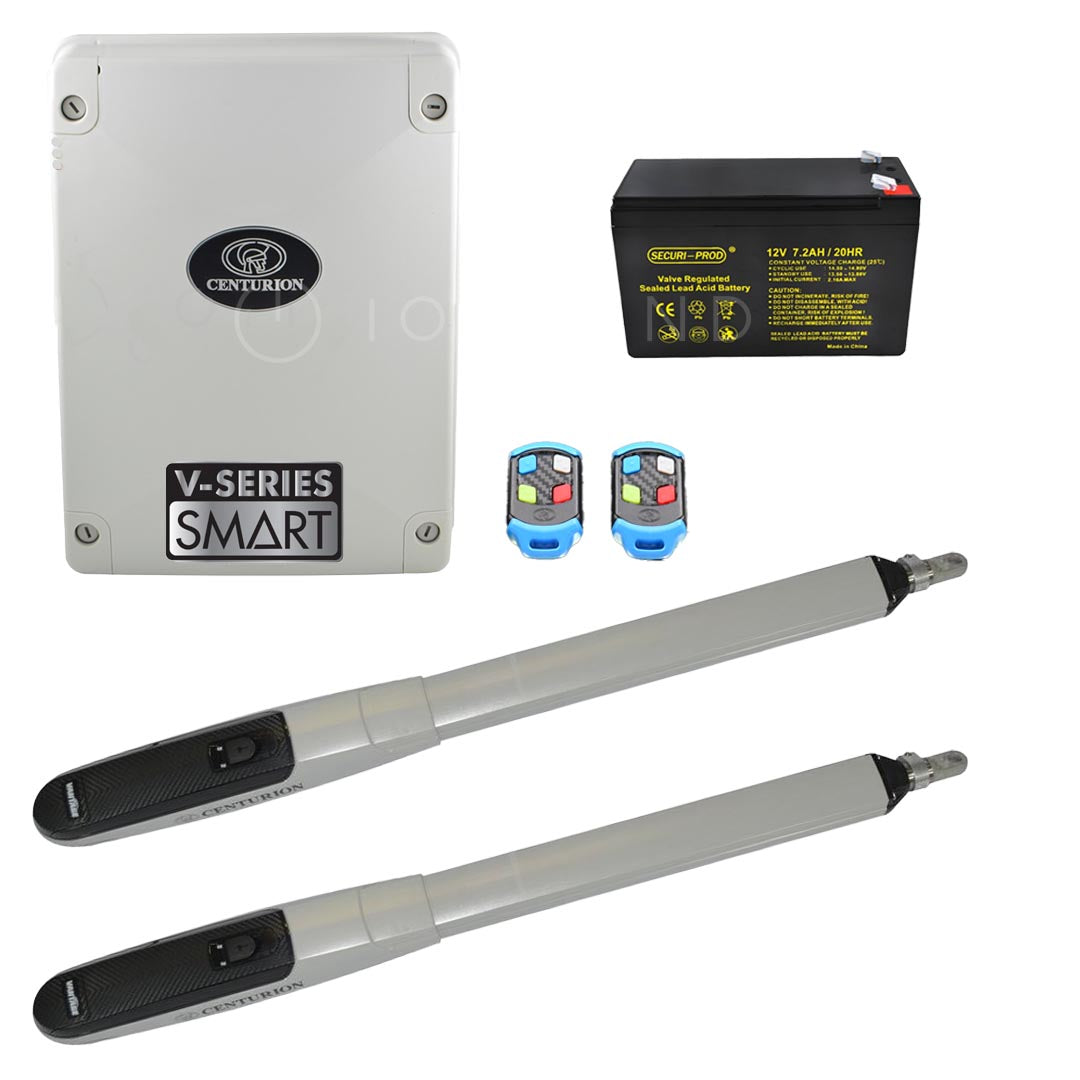

The Centurion SMART Vantage 400 Double Swing Gate Motor Kit includes:

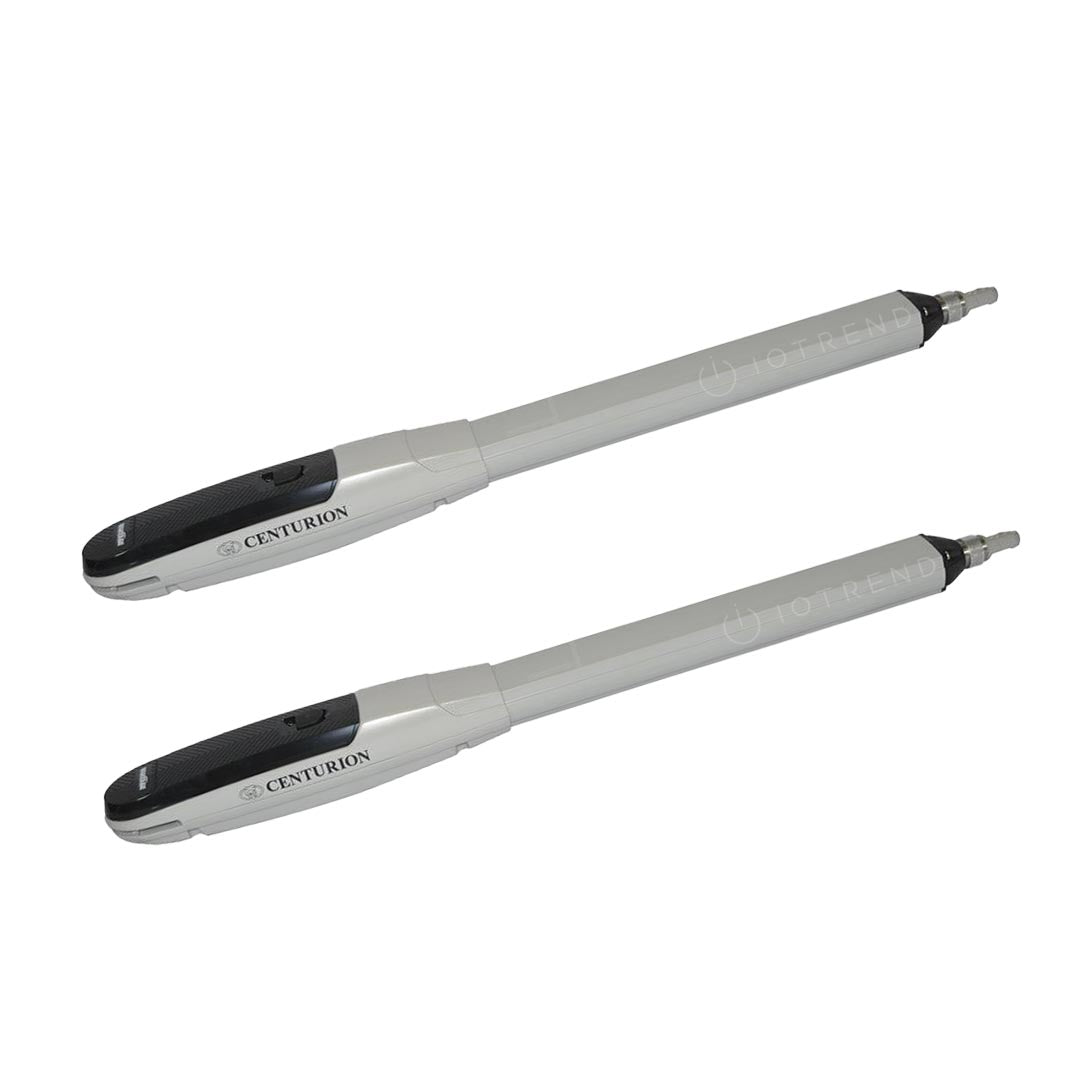

2 x 400mm Linear Swing Gate Operators
1 x Vx Smart Wall Control Box
1 x Securi-Prod 12V 7.2AH SLA Battery
2 x Centurion Nova 4 Button Remotes
FEATURES OF THE SMART VANTAGE 400:
- Quick and easy commissioning, diagnostics and system health checks using an intuitive mobile app.
- Supports inward- and outward-opening gates without needing mechanical endstops.
- High push force - delivers a potent 220kg push force
- Rapid and precisely-controlled opening and closing
- Sensitive obstruction detection
- Time-proven battery-driven technology – ready for any power outage
- Revolutionary braking system for secure locking
- Advanced Internal limit system
- Operate the SMART Vantage operators wirelessly with MyCentsys Remote mobile app
- All-weather construction suitable for both inland and coastal environments
ACCESSORIES FOR CENTURION VANTAGE 400 (OPTIONAL EXTRA)
- Batteries: 1 x 12V 8AH Gel Battery
- Centurion Vantage Screened Cable 25m roll
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion G-Speak Ultra 4G Intercom Kit
- Centurion SmartGuard Air Wireless Keypad
- Centurion Loop Detector 1 Channel (Flux SA)
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- G-Ultra GSM Solution
- Clearline Gate Motor Lightning and Surge Protector
SPECIFICATIONS OF THE SMART VANTAGE 400:
| Input voltage | 90V - 240V AC ±10%, 50/60Hz |
| Motor voltage | 12V DC |
| Motor power supply | Battery-driven (standard capacity - 7.2Ah) (1) |
| Battery charger (2) | 1.8A @ 13.8V |
| Current consumption (mains) | 170mA |
| Current consumption (motor at rated load) | 15A - Maximum |
| Operator push force – maximum | 250kgf |
| Operator stroke | 400mm |
| Piston extention / retraction speed | 28mm/sec (variable) |
| Typical gate opening time (3) | 400mm – 14.3sec |
Manual override |
Key release (4) |
| Maximum number of operations per day | 250 |
| Duty cycle - Mains present (5,6) | 50% |
| Operations in standby with 7.2Ah battery (7) | Half day 70 cycles | Full day 58 cycles |
| Collision sensing | Electronic |
| Operating temperature range | -15°C to +50°C |
| Degree of protection | IP55 |
| Controller incorporated | Vx SMART in separate wall box |
| Onboard receiver type | NOVA code-hopping onboard multichannel |
| Receiver frequency | 433.92MHz |
| Receiver code storage capacity | 1500 transmitters |
| Packaging dimensions | |
| Mass of unit packed | |
| Warranty | 24 Months limited Manufacturer's warranty (excludes battery) |
Additional information pertaining to the SMART Vantage 400 specifications:
1. Can increase battery capacity for longer standby times.
2. Can operate off a solar supply.
3. Assumes a full stroke of operator is used.
4. Each operator comes with a unique set of keys.
5. Based on 25°C ambient temperature and unit not in direct sunlight.
6. Based on an operator push force of less than 50% of rated.
7. Based on double kit excluding Infrared Safety Beams.
Warnings and Limitations on the Centurion SMART Vantage 400:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
2 x 400mm Linear Swing Gate Motors
1 x Vx SMART Wall Control Box
1 x Securi-Prod 12V 7.2AH SLA Battery
2 x Centurion Nova 4 Button Remotes
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
