PRODUCT INFORMATION
The Centurion Vantage Vx SMART Controller and Charger is a SMART control unit for Vantage swing gate motors, ranging from 400mm to 500mm linear operators, single to double light-domestic swing gates to light-industrial swing gates.
The Vantage Vx SMART controller and charger is fitted within an enclosed wall box that is constructed out of tough, UV-resistant, fade-resistant ABS plastic, providing strength and long-term durability.
It has a contemporary design that complements the unobtrusive design of the Vantage SMART swing gate motors and enhances the aesthetics of any installation.
The unit also has an IP65 rating to prevent ingress of water, dust and insects.
Please note: Battery not included
FEATURES OF THE VANTAGE VX SMART CONTROLLER:
- Interactive graphic user interface via a smartphone application
- Automated setup of gate endpoints (limits)
- Independently-adjustable motor speed in both opening and closing directions
- Fail-safe collision detection and auto-reverse (adjustable sensitivity)
- Smooth, adjustable start/stop (ramp-up/ramp-down)
- Multiple operational modes
- Selectable, adjustable Autoclose
- Pedestrian (partial) opening
- Positive Close Mode
- Supports up to three sets of Photon SMART Safety beams
- Independent safety inputs for opening and closing beams (wired)
- Automatic beam test for both opening and closing beams (wired)
- Advanced lightning/surge protection
- Onboard NOVA code-hopping radio receiver with full channel-mapping capability (1500 MyCentsys Remote users (Multiple buttons per remote can be used).

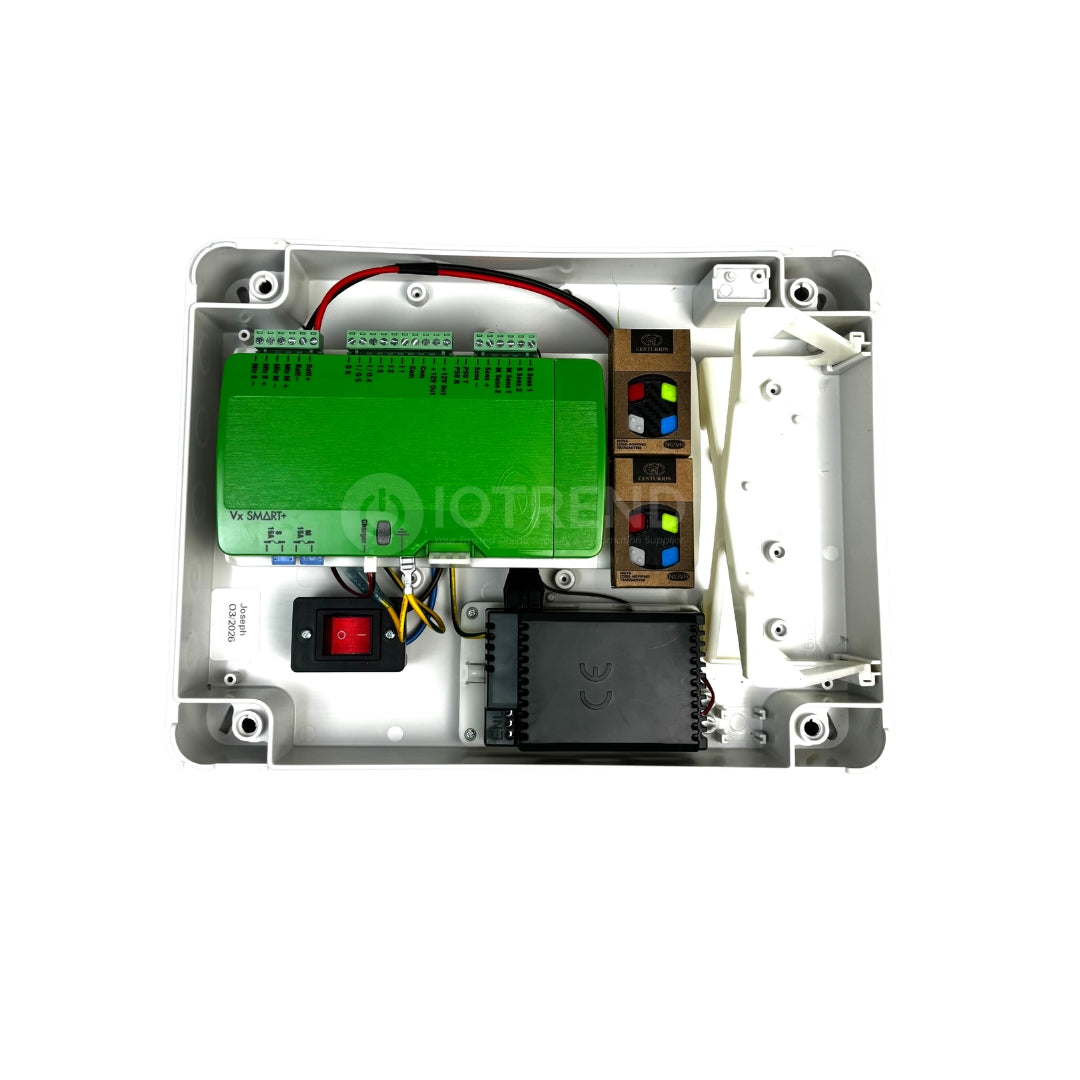

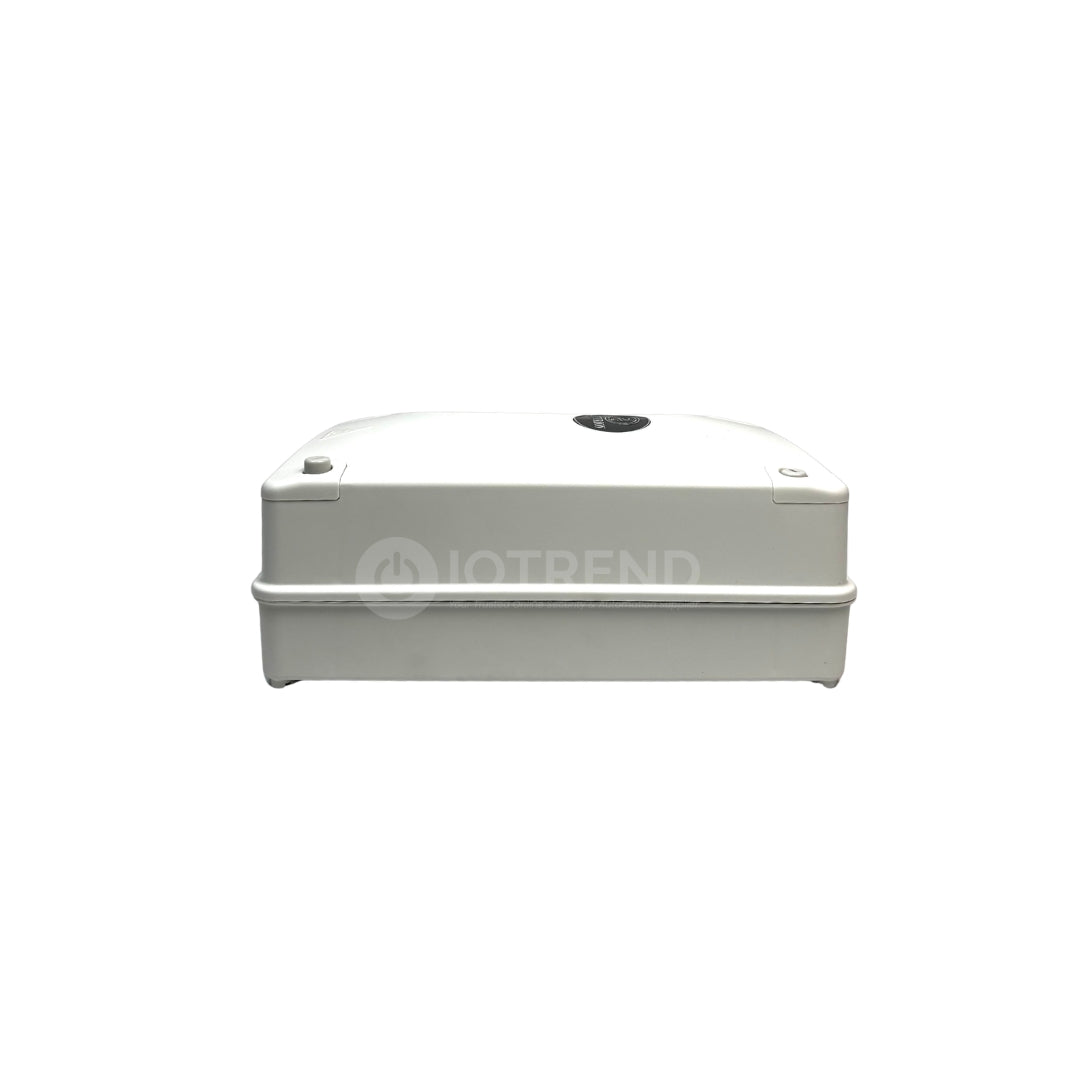

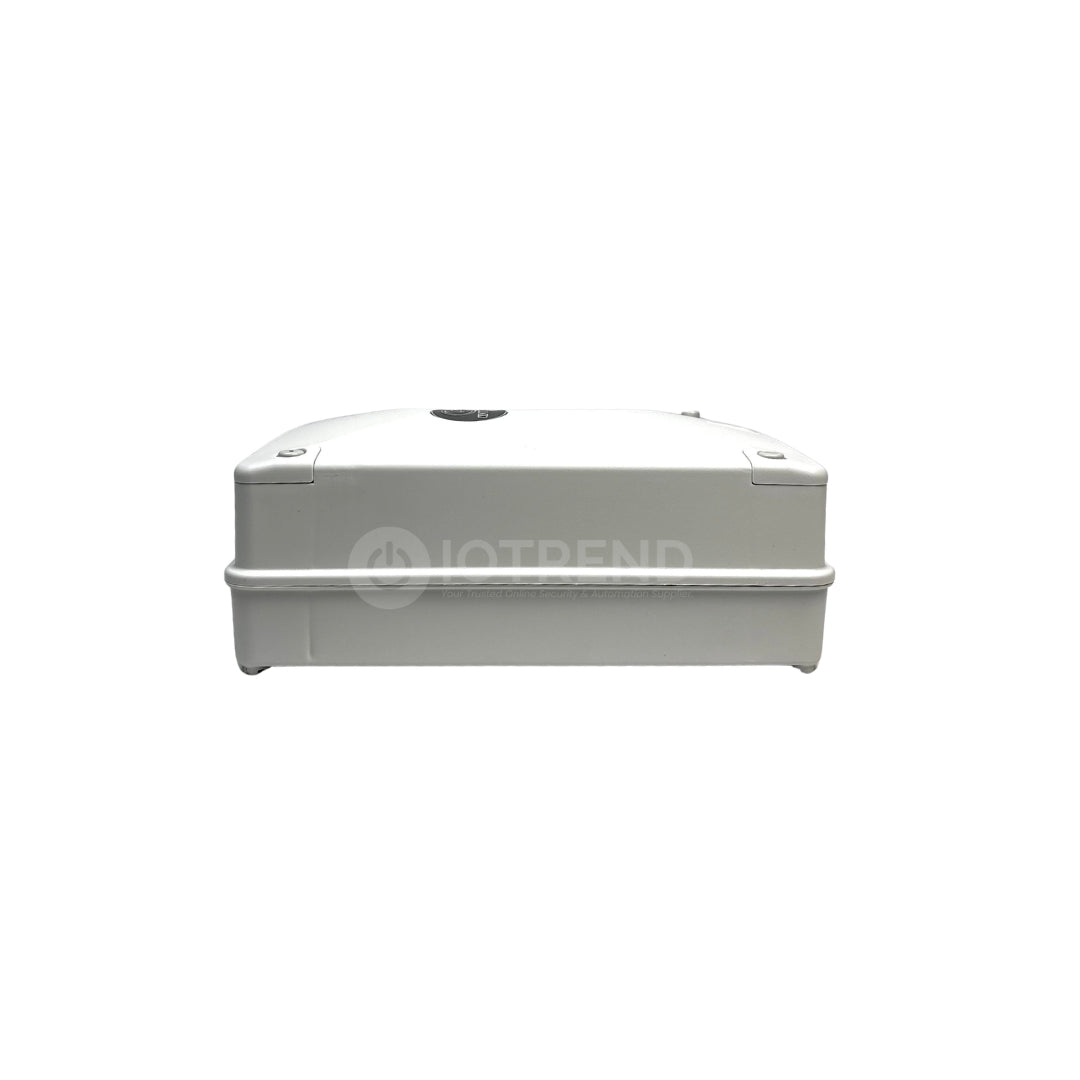

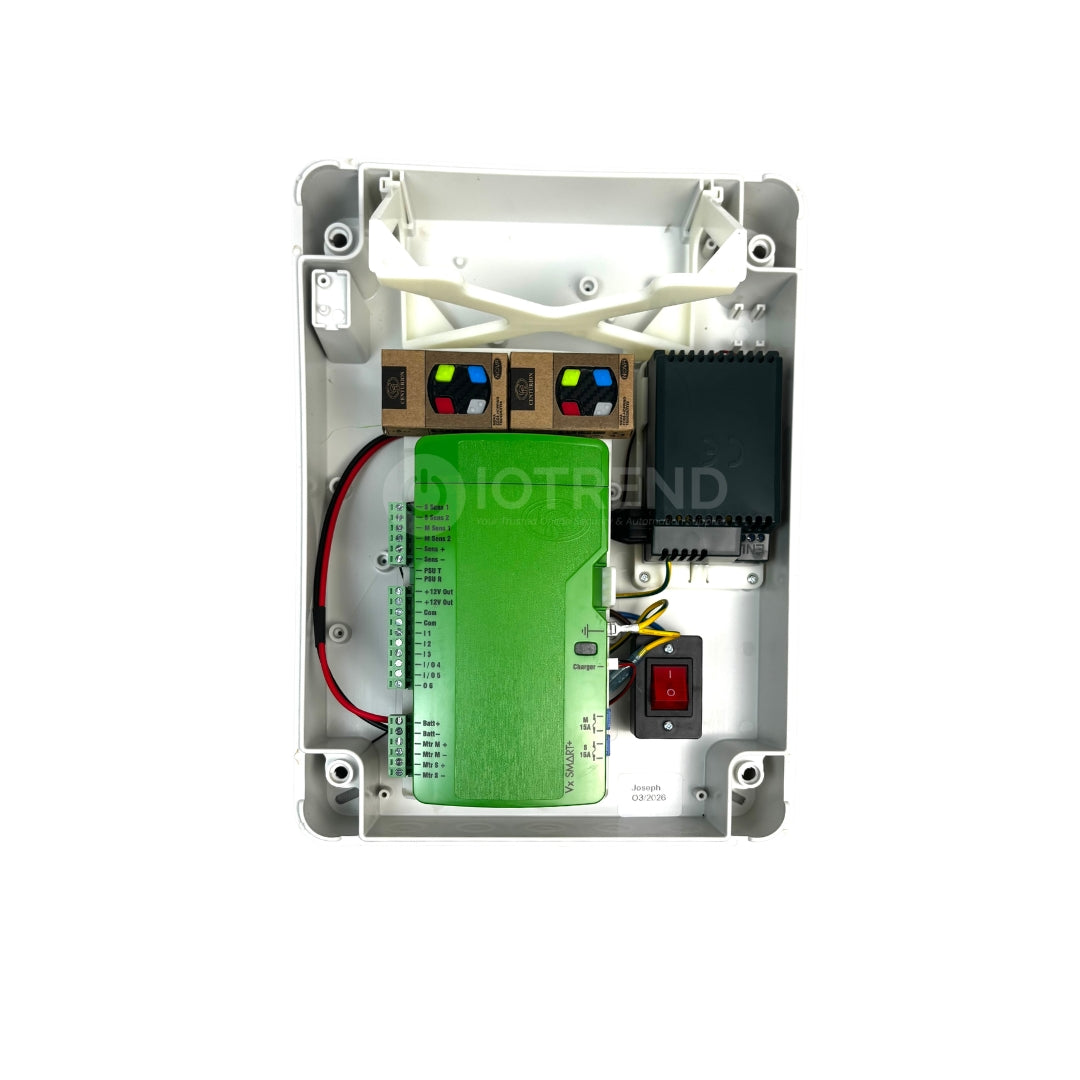

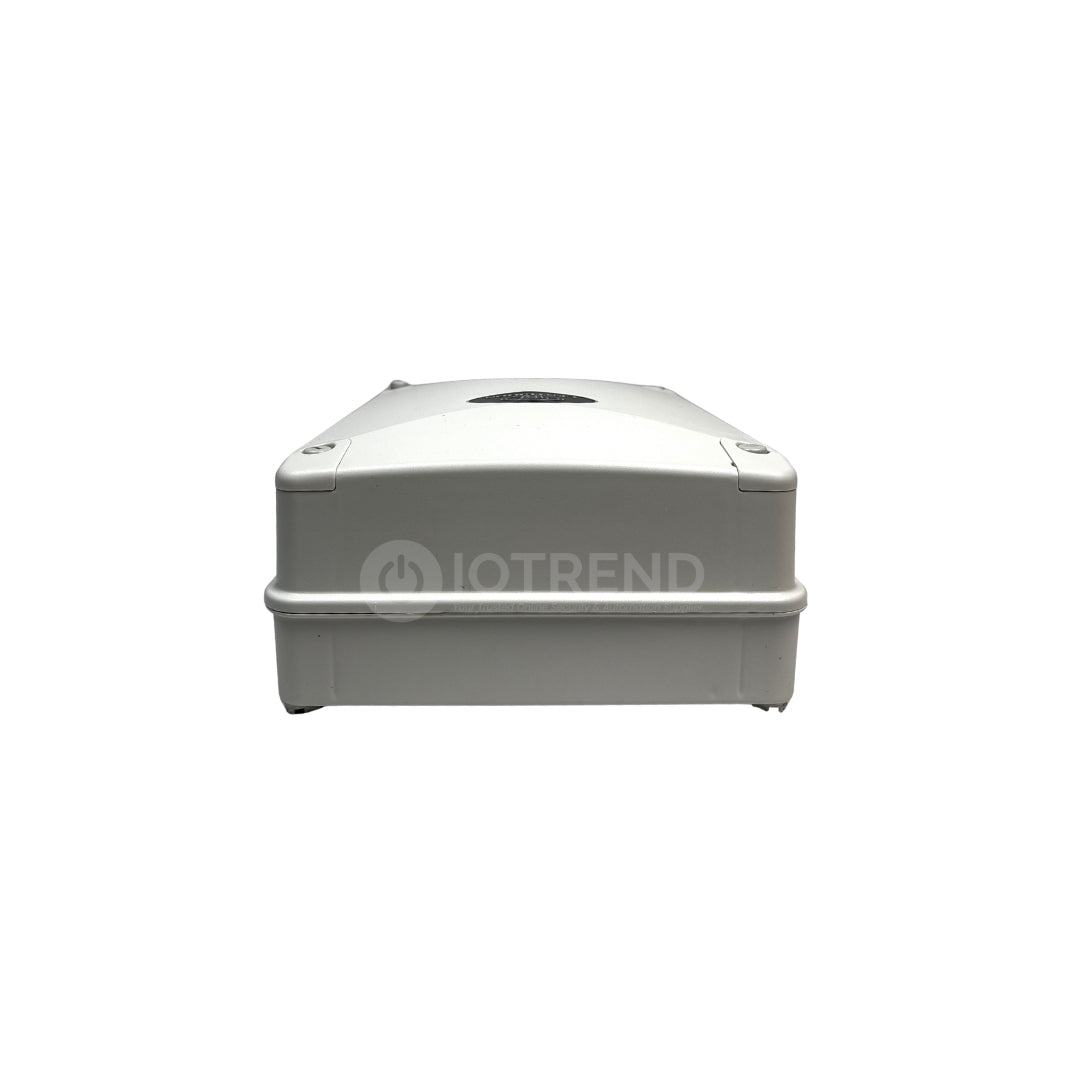

FEATURES OF THE WALL BOX:
- Weatherproof design to prevent ingress of water, dust and insects. Includes a built-in rubber seal on the underside of lid.
- Exterior lip to ensure water stays out, even during the removal of the cover.
- Screw-down points for cover and mounting slots located outside of the general housing to ensure complete sealing of the unit.

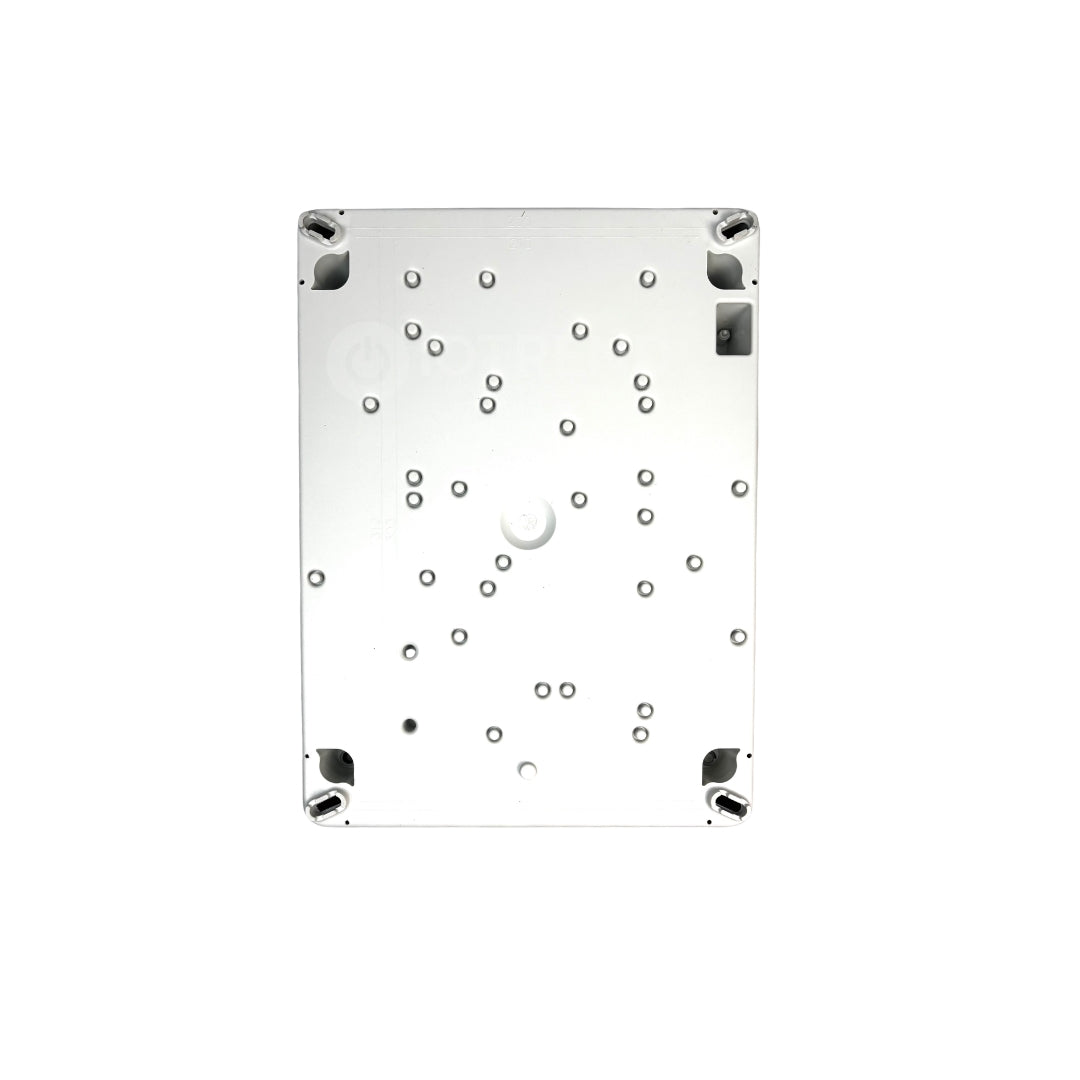

- Slotted, diagonal mounting slots add mounting flexibility.
- Low level housing wall provides easy access to terminal points.

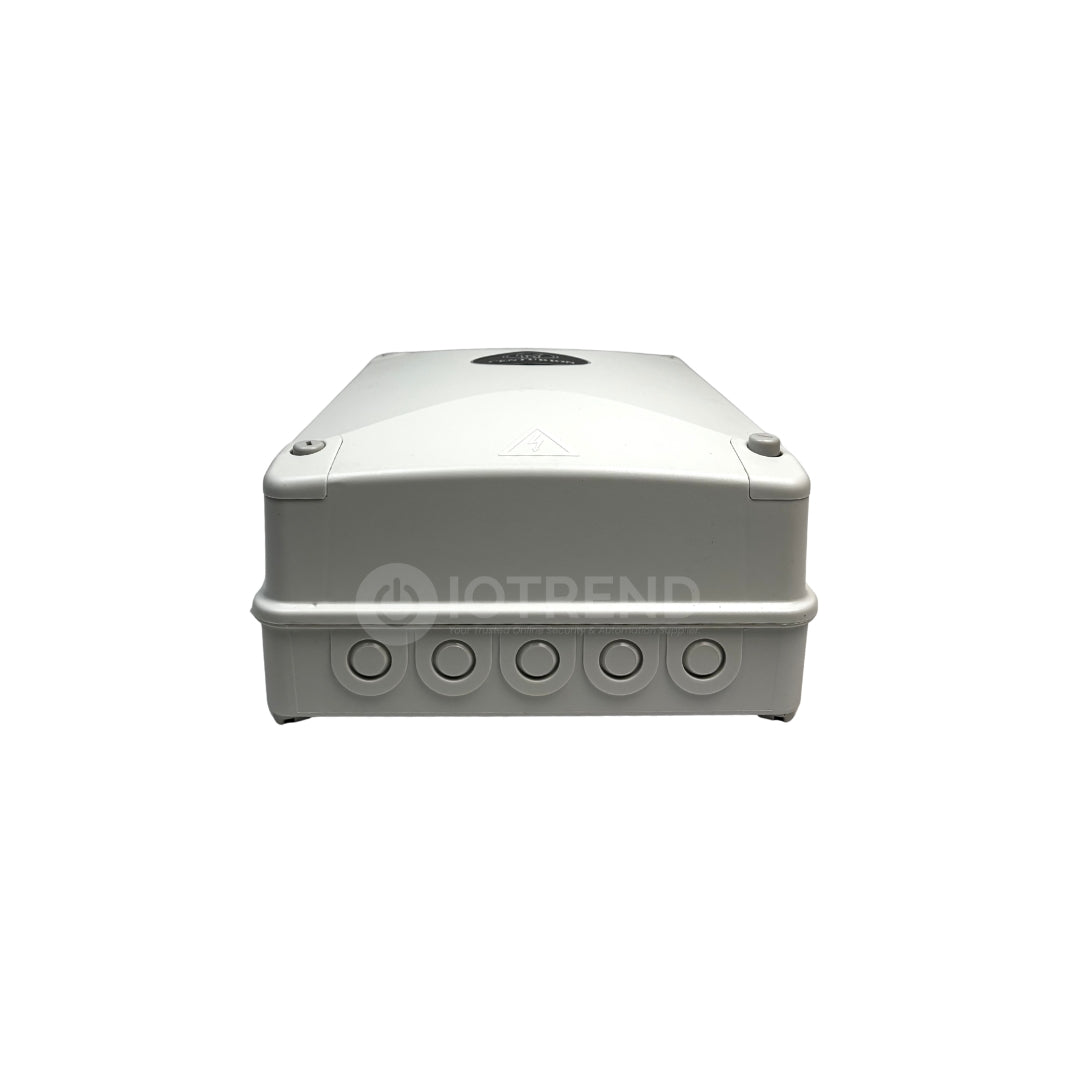

- Five knock-outs for easy, and multiple, cable entry.
- Gas breathing point allows any potential build-up of gas to escape, whilst still preventing the ingress of dust, water and ants.
- Built-in isolator to conform with legal requirements.
- Built-in earth point.
- Strip-proof, ultra-strong polycarbonate screws enclosed in screw-retaining slots.
SPECIFICATIONS OF THE VANTAGE VX SMART CONTROLLER:
| Maximum motor current per channel | 15A (fused) |
| Maximum input voltage | 14.4V DC |
| Standby current draw | 51mA (2) |
| Maximum solenoid current draw | 3A DC / AC (10 Seconds) (1) |
| Maximum axillary output current | 3A (Resettable Electronic Fuse) |
| Collision detection | Current sense and optical |
| Position and trajectory control | Optical |
| Temperature range | -20°C to +60°C |
| Onboard receiver type | Code-hopping multichannel |
| Receiver code storage capacity | 1500 transmitters |
| Receiver frequency | 433MHZ |
| Product Dimensions | |
| Product Weight | |
| Packaging Dimensions | |
| Mass of unit packed | |
| Warranty | 24 Months limited Manufacturer's warranty |
Additional information pertaining to the Vantage Vx SMART Controller:
1. Limited by charger, ensure that load does not prevent battery from fully charging.
Continuous current draw should ideally be less than 500mA but must not exceed 1A.
2. Operators connected, no ancillaries fitted
SPECIFICATIONS OF THE POWER SUPPLY:
| Nominal input voltage | 90V - 240V AC ±10% @ 50/60Hz |
| AC current draw (maximum) | 170mA |
| Temperature range | -20°C to +60°C |
| Battery charger output current (dependent on PSU input voltage) | 90V AC input: 1.2A @ 13.8V | 240V AC input: 1.8A @ 13.8V |
Warnings and Limitations on the Vx SMART Controller:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.

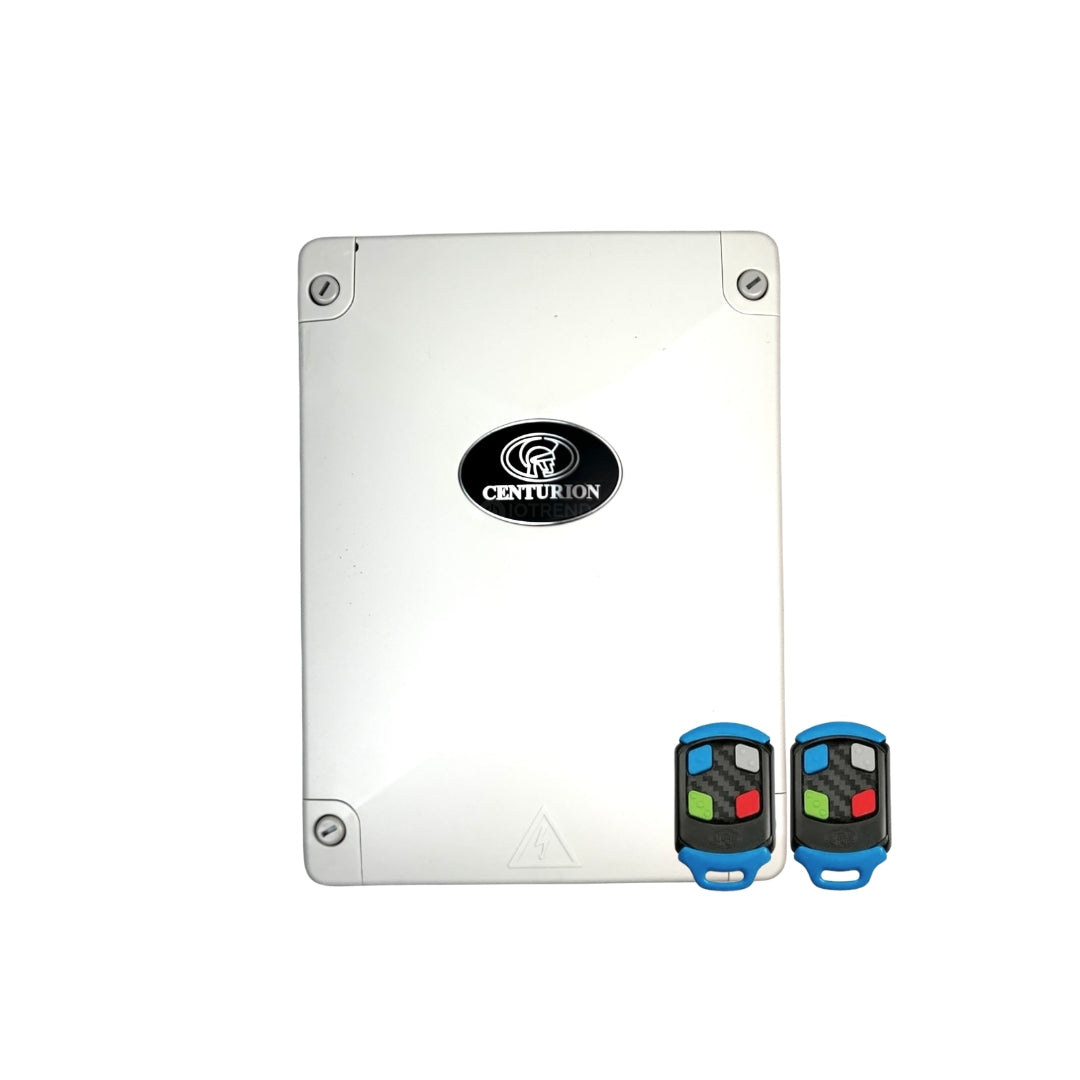

WHAT’S IN THE BOX:
1 x Centurion Vantage Vx SMART Controller and Charger
1 x Vx SMART Wall Box

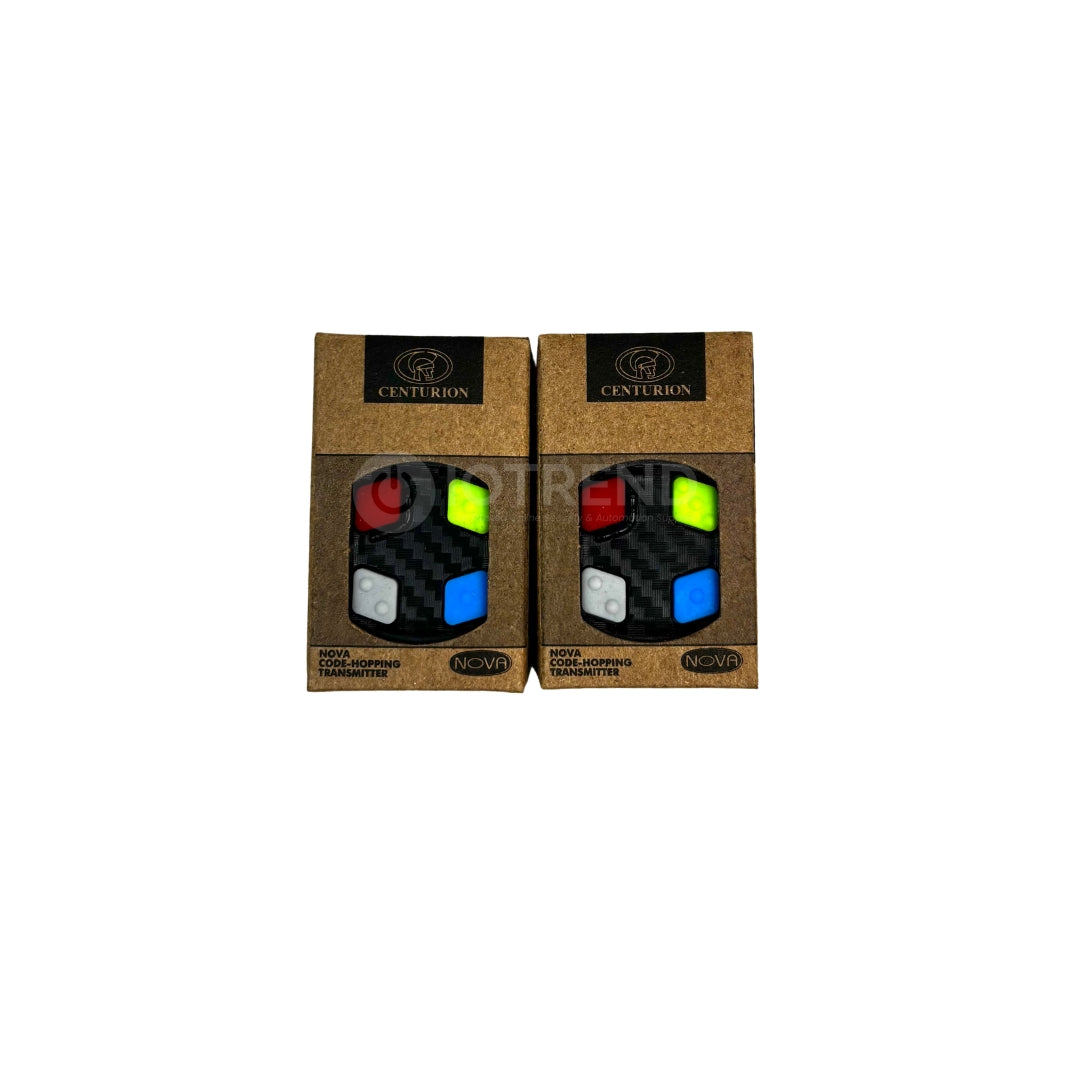

2 x Centurion Nova 4 Button Remotes
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
