PRODUCT INFORMATION
The SDO5 SMΔRT+ brings SMΔRT + remote access to your garage door
The SDO5 SMΔRT+ brings SMΔRT + remote access to your garage door motor, built for garage doors where reliable daily access and SMΔRTer control matter. Control your garage door from anywhere in the world.
The SDO5 SMΔRT+ T12 is ideal for:
- Larger and heavier garage doors
- Residential installations requiring high-power automation

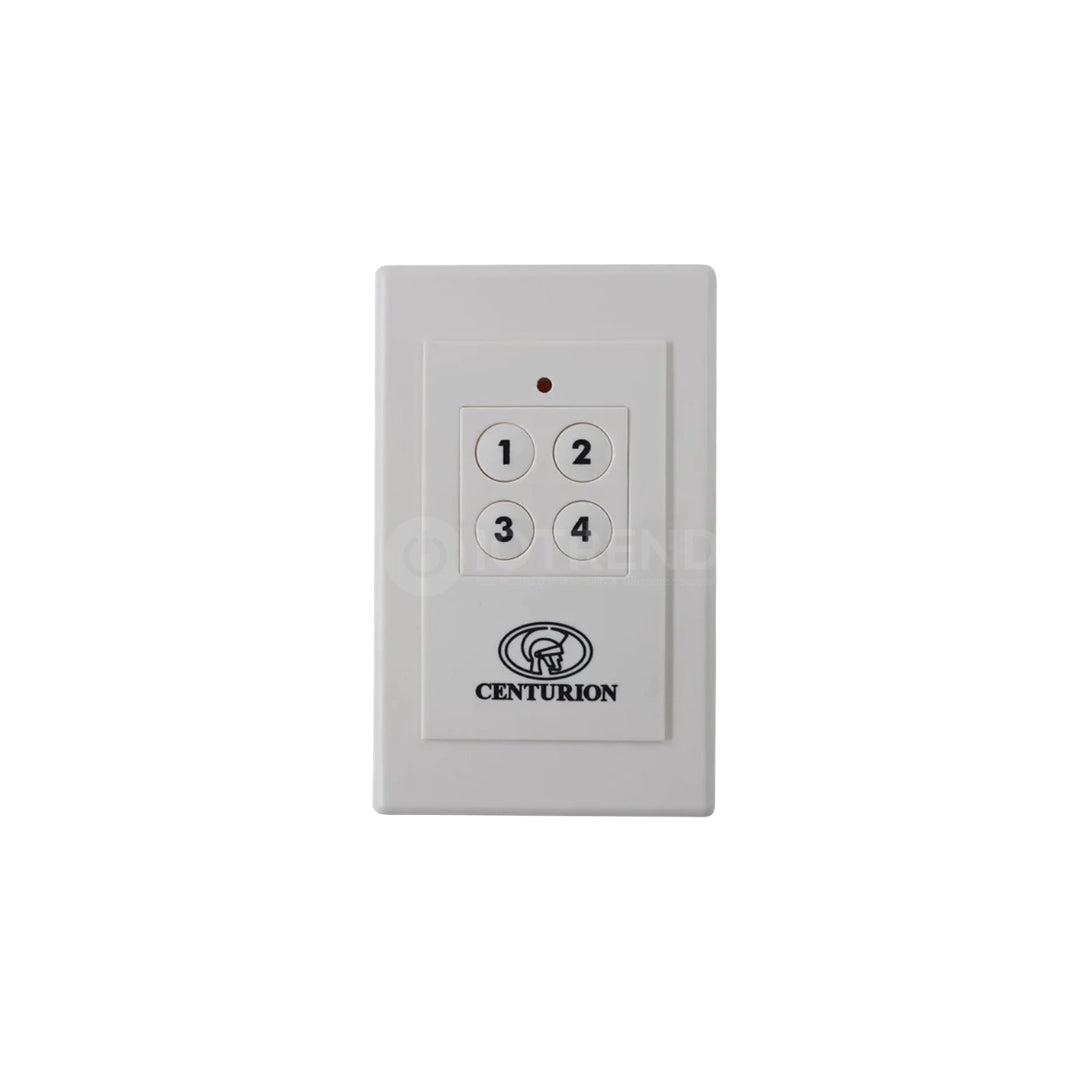

- Projects demanding extra control and functionality thanks to an included Wireless Wall Pendant
- Tip-up and sectional garage door configurations
ACCESSORIES FOR THE CENTURION T12 SDO5 SMART+ GARAGE MOTOR (OPTIONAL EXTRA):

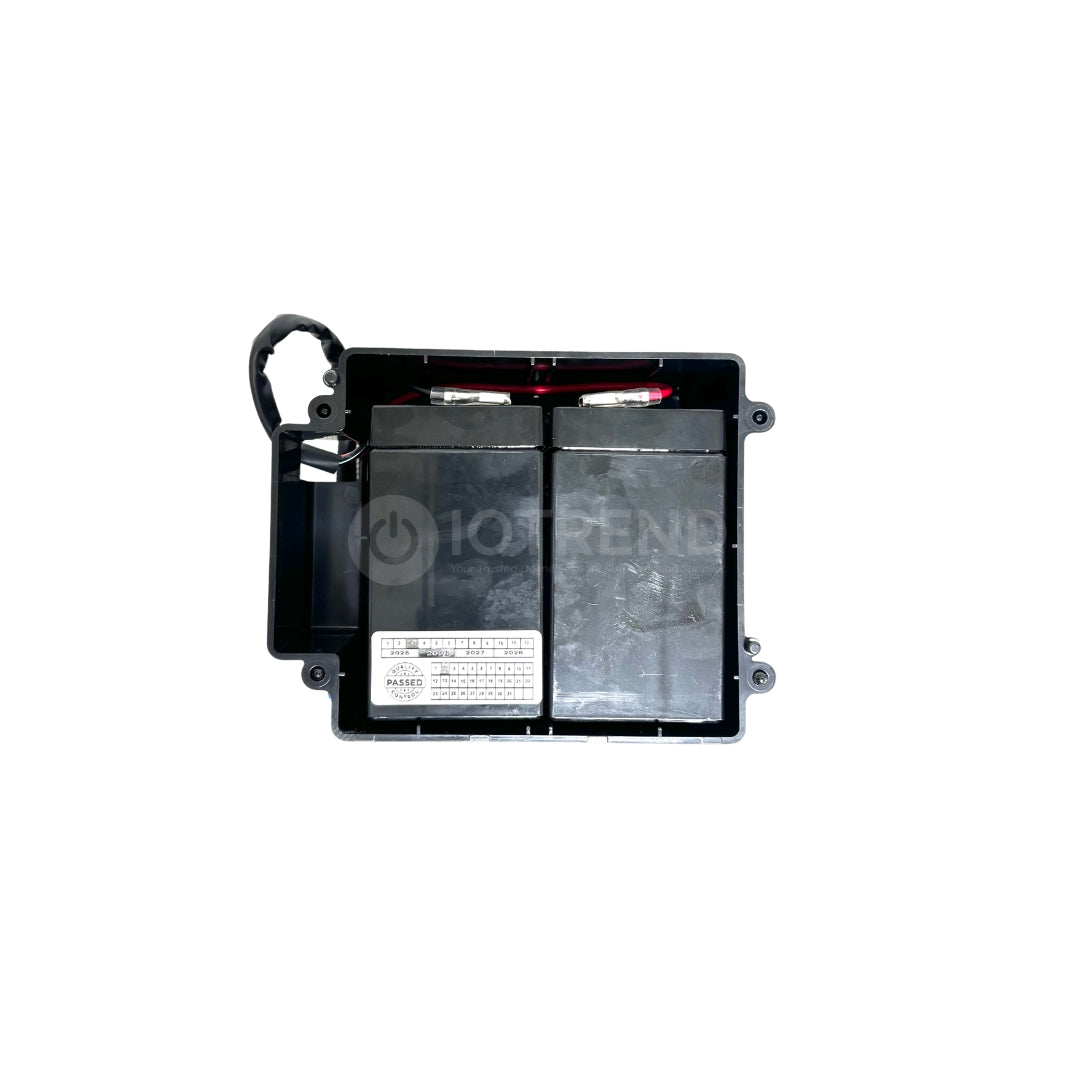

- Batteries: 2 x Securi-Prod 12V 3A SLA Batteries
- Centurion Photon SMART Fully Wireless Gate Beam Set
- Centurion SmartGuard Air Wireless Keypad
- Centurion Nova 1 Button, 2 Button and 4 Button Remotes
- G-Ultra GSM Solution
- Clearline Gate Motor Lighting and Surge Protector
- WiZo-Link module
SPECIFICATIONS OF THE T12 SDO5 SMART+ GARAGE MOTOR:
| Technical Specifications | SDO5 SMART+ T10 | SDO5 SMART+ T12 |
| Input voltage | 220V - 240V AC @ 50/60Hz1 | |
| Motor voltage | 24V DC | |
| Motor power - rated | 80W DC | 100W DC |
| Motor supply | Mains driven 110 VA Thermally fused Toroidal Transformer |
Mains driven 150 VA Thermally fused Toroidal Transformer |
| Max door width | 6500mm | |
| Max door area | 12 square metres | 15 square metres |
| Max holding capacity | 1000N | 1200N |
| Maximum push/pull force | 40kgf | 50kgf |
| Battery Backup | Optional 2.9Ah Battery Backup2 870mA Charging Rate with built-in Battery Saving and testing functionality | |
| Operations in standby mode3 | Up to 70 depending on the door size/weight/height/ duration of power failure/condition of batteries3 | |
| Operator travel speed4 | 9m/min | |
| Wireless Communication | BLE and Wi-Fi (2.4Ghz) | |
| Door travel adjustment | Physical Endstops (Automatic limit set) | |
| Safety obstruction force system | Built-in Hall Effect and Current-sensing. Adjustable in MyCentys Pro | |
| Light | Integrated LED Courtesy Light | |
| Autoclose5 | Adjustable in MyCentys Pro5 | |
| Infrared safety beams | Compatible with Wired or Wireless. (Optional but recommended) Configured in MyCentsys Pro | |
| Radio receiver | Code-hopping 433MHz | |
| Receiver code storage capacity | 30x 4-button NOVA transmitters | |
| Degree of protection | IPX0 (For interior use only) | |
| Packaging Dimensions | 2550mm X 250mm X 185mm | |
| Mass of unit packed | 12.5Kg including Arm | |
| Warranty | 24 months limited Manufacturer’s warranty | |
Additional information pertaining to the T12 SDO5 SMART+ Garage Motor:
1. Can operate off a solar supply, please consult Centurion Systems (Pty) Ltd for assistance.
2. Add-on Battery Backup kit sold separately. Contact your local stockist for assistance.
3. Only applicable if battery backup is installed.
4. Speed varies with load.
5. Requires Infrared Safety Beams to be fitted.
Warnings and Limitations on the T12 SDO5 SMART+ Garage Motor:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:

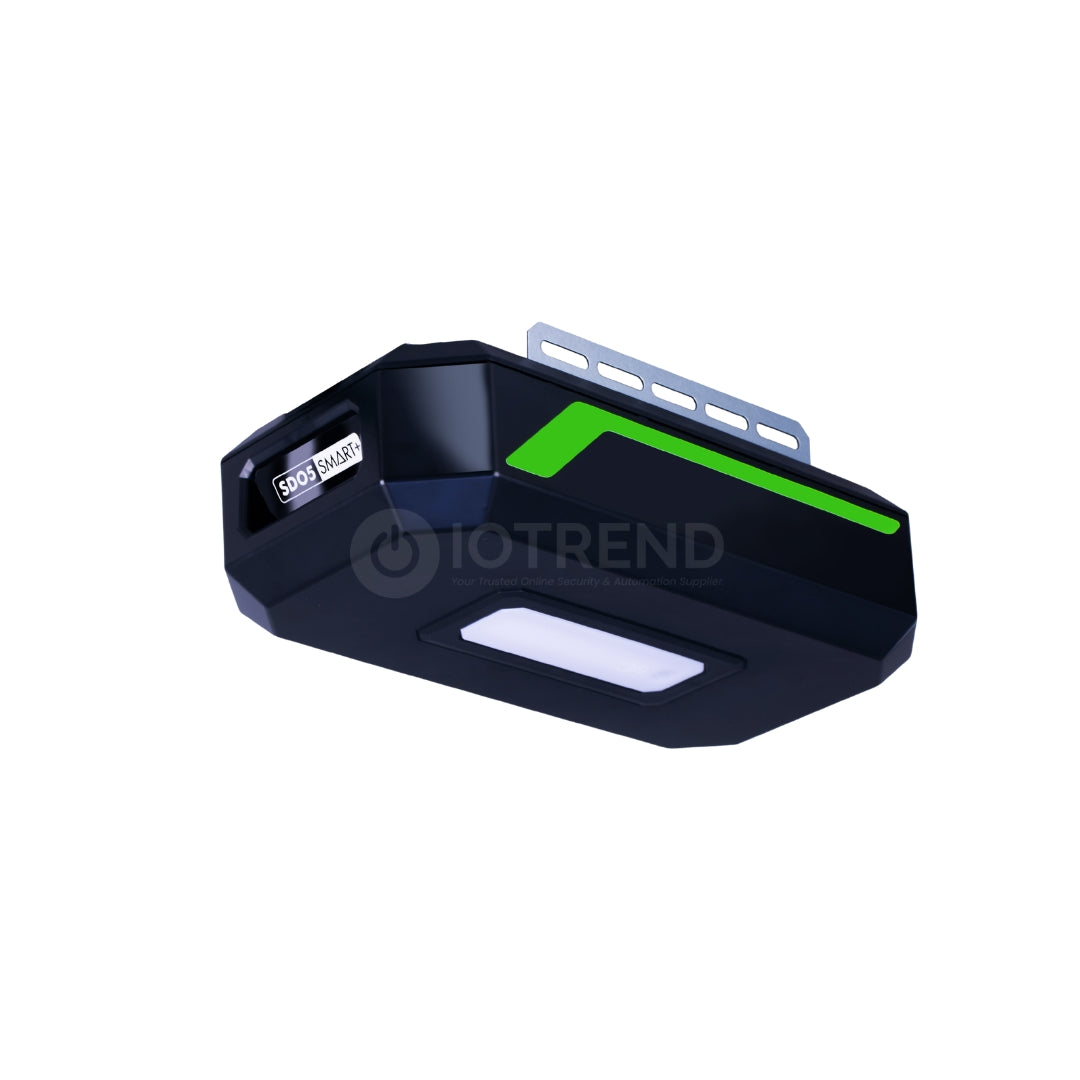

1 x SDO5 T12 SMART+ head unit with power supply and batteries
1 x Header Bracket

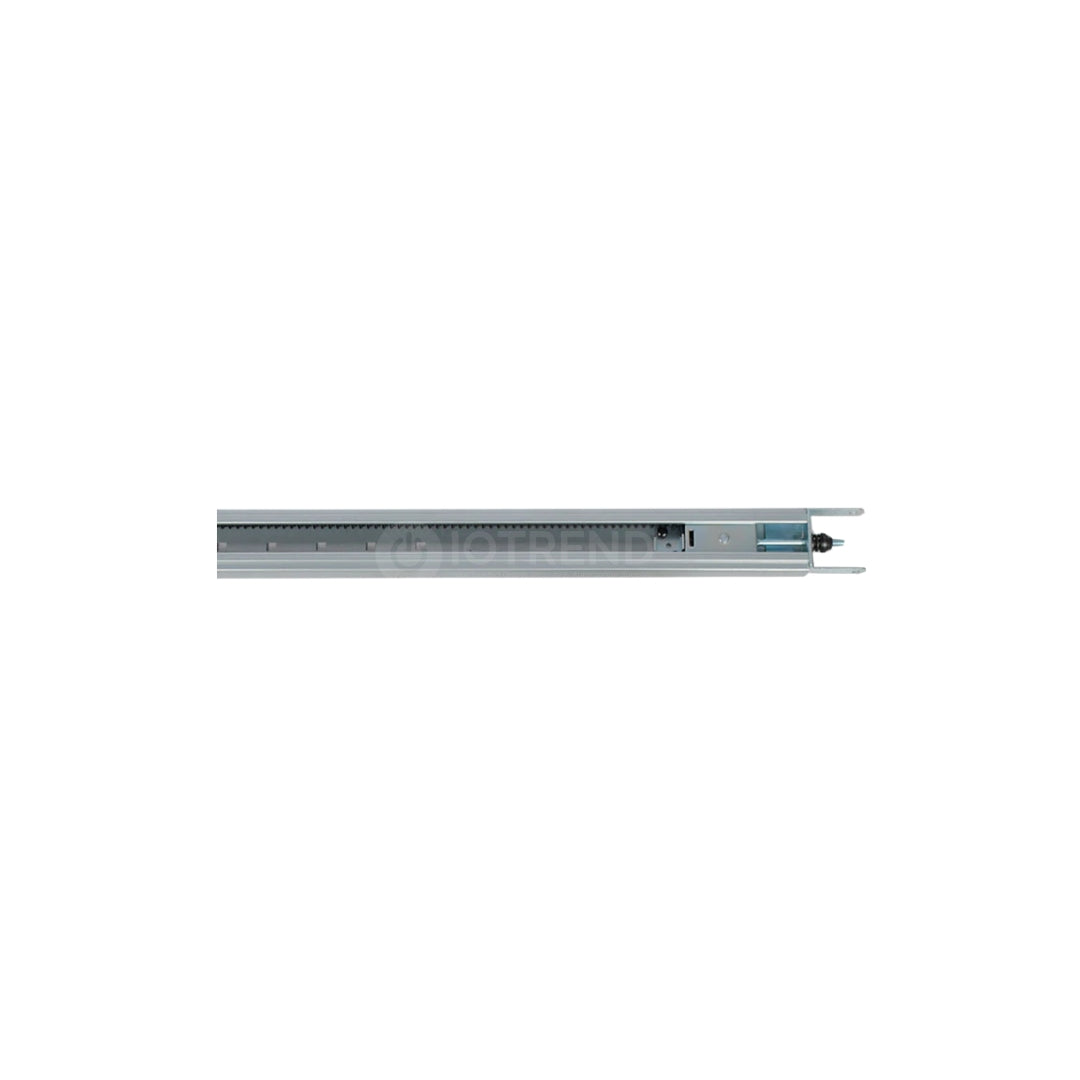

1 x Drive Rail Hanger
1 x Bent Towing Arm

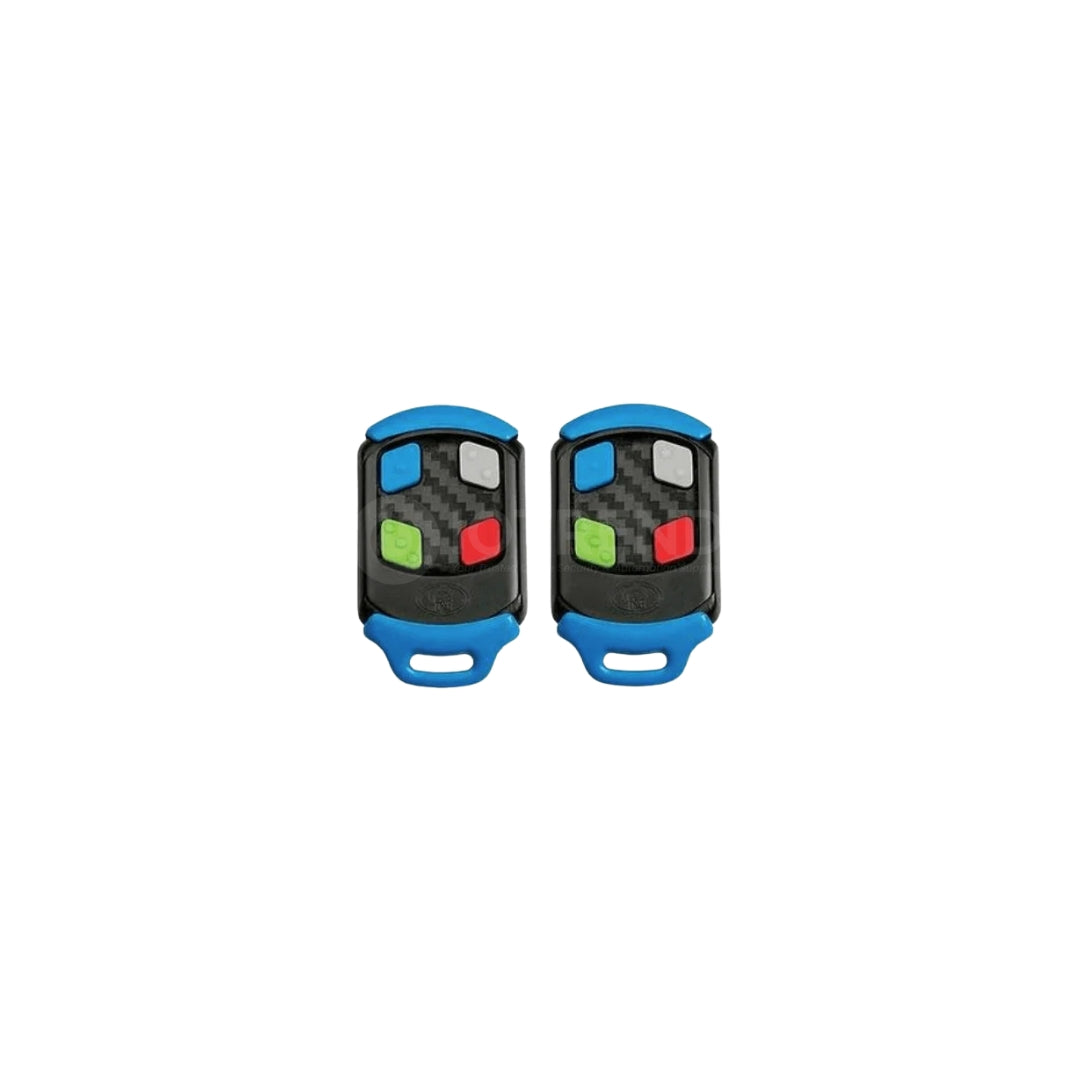

2 x Centurion Nova 4 Button Remotes
1 x Mounting Kit
1 x Quick Guide
1 x 1.8meter Extrusion Arm
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
