PRODUCT INFORMATION

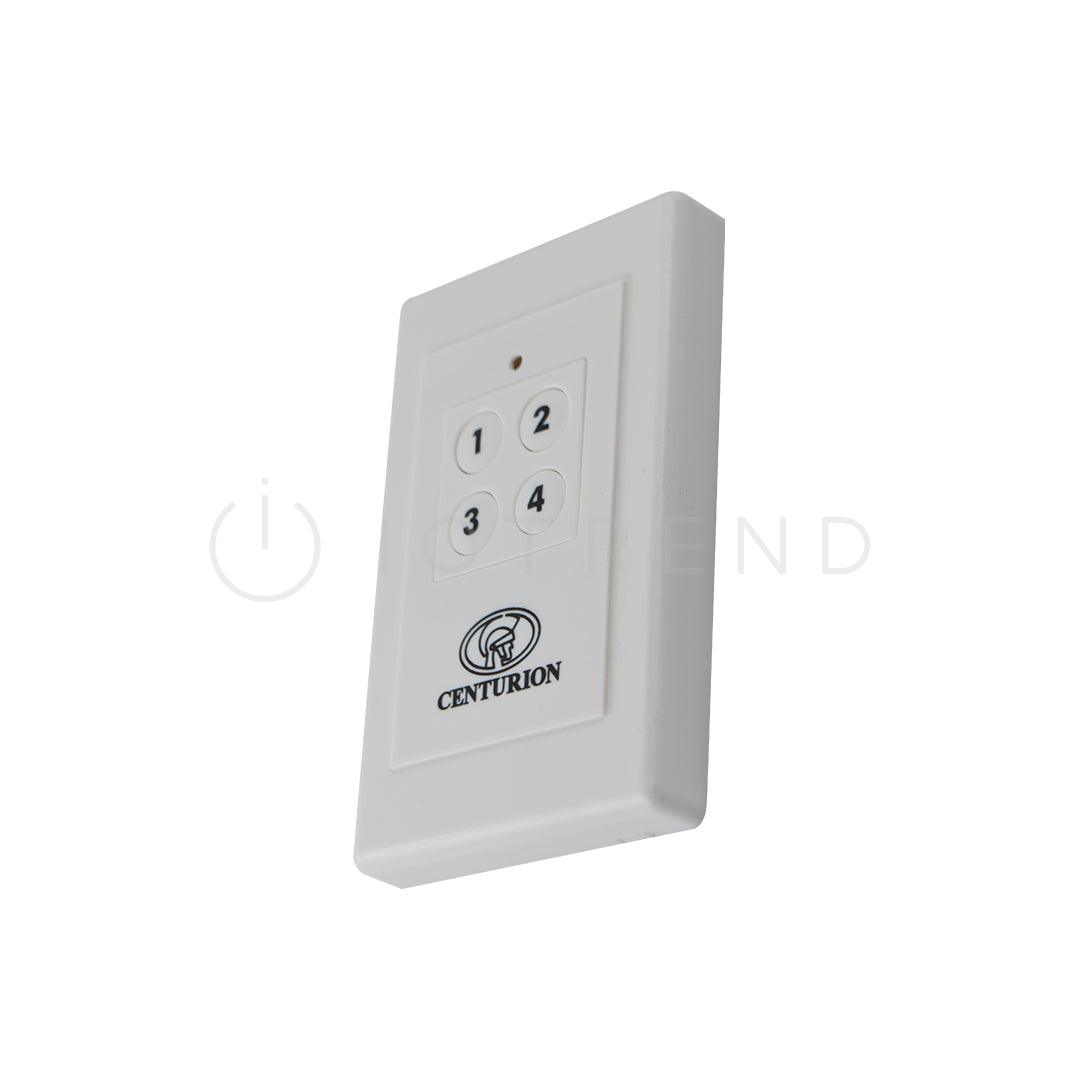

The Centurion Garage Door Wireless Wall Mount Console also referred to as a wireless wall switch for Centurion garage door operators, provides ease of installation without the need for running hard wires to the switch. Mount the console in a convenient location such as adjacent to a side entry door into the garage.
The four buttons provided on the wireless wall switch are for independently operating from one wall switch, the two openers of a double garage door installation. These buttons are used to activate the various functions provided by the system.
Each individual button of the Centurion garage door wireless wall mount console has been marked with a number, from one to four, to help the user identify which function each button operates. For example, it is easier to remember that Button One opens and closes the door, Button Two activates the Courtesy Light, etc. The buttons can however be learned in any configuration to best suit the user.
Please note: Compatible with the SDO4 garage door operators.
Mounting of the wall switch
To permanently mount the unit, open it, and place the back panel of the unit in the desired position on the wall, taking care not to damage the electronics when opening and handling the unit.
Important note: The wireless wall switch must be mounted within sight of the garage door and a reasonable distance away from moving parts.
It should be mounted at least 1500mm above the ground and the Entrapment Warning Label provided, must be attached adjacent to the switch.
Product Code: 1302PEND02
FEATURES OF THE CENTURION WIRELESS WALL SWITCH:
- Wireless 4-Button console
- Use the buttons to Open, close or stop the garage door, turn on the light, activate Holiday Lockout or override auto-close
- Can Operate 2 Garage Doors
- Replacement Wall Mount Console for Centurion XTRAC
SPECIFICATIONS OF THE CENTURION WIRELESS WALL SWITCH:
| Color | White |
| Material | Plastic |
| Programmable buttons | 4 |
| Mounting | Wall mount |
| Power Source | 23A 12V Alkaline battery |
| Product Dimensions | 115 mm (L) x 70 mm (W) x 15 mm (H) |
| Product Weight | 60g |
| Packaging Dimensions | |
| Mass of unit packed | |
| Warranty | 24 months limited Manufacturer’s warranty |
Warnings and Limitations on the Centurion Wireless Wall Switch:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
3. Only replace with an Alkaline battery; do not use rechargeable batteries with this product.
WHAT’S IN THE BOX:
1 x Centurion XTRAC Wall Mount Console (battery included)
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
