PRODUCT INFORMATION

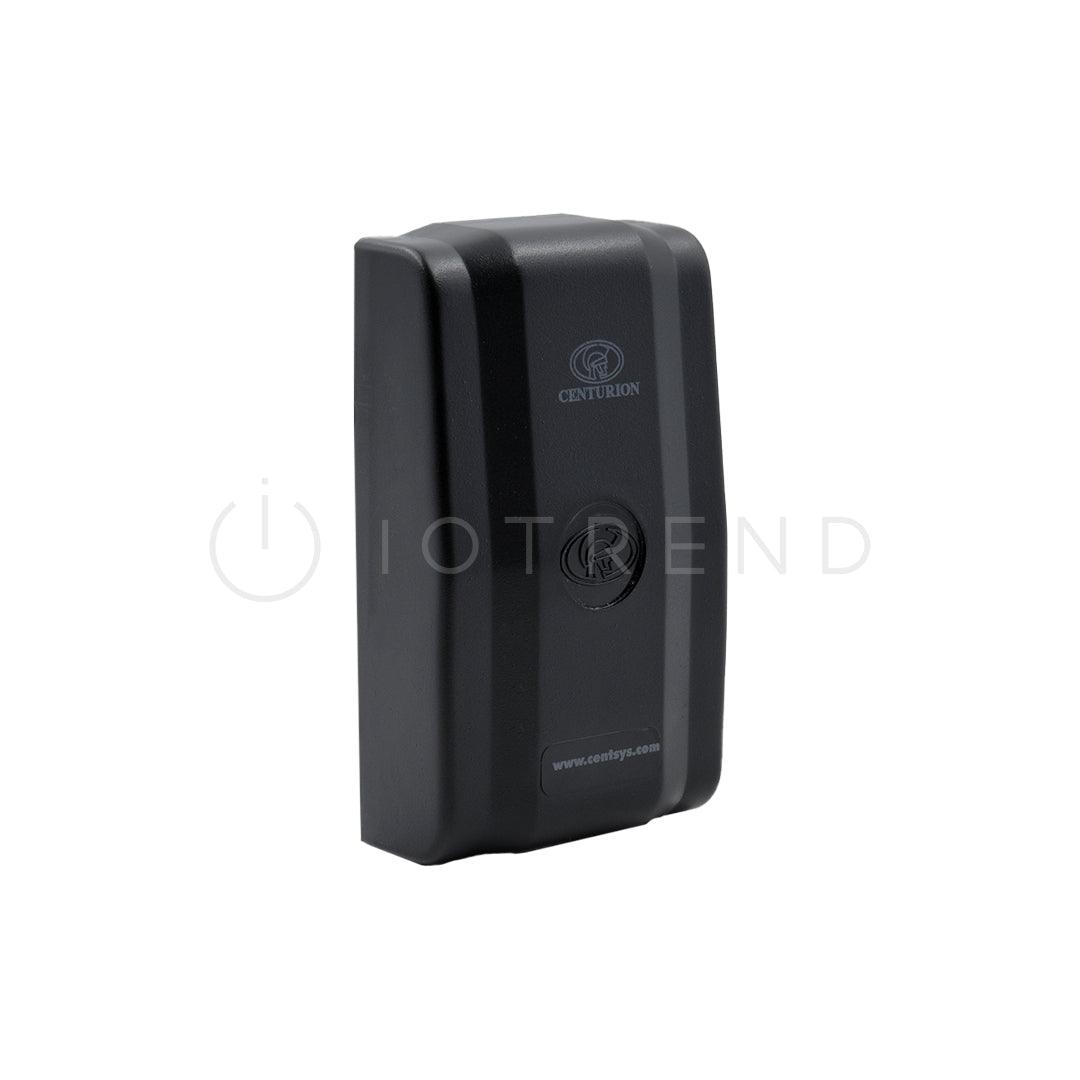

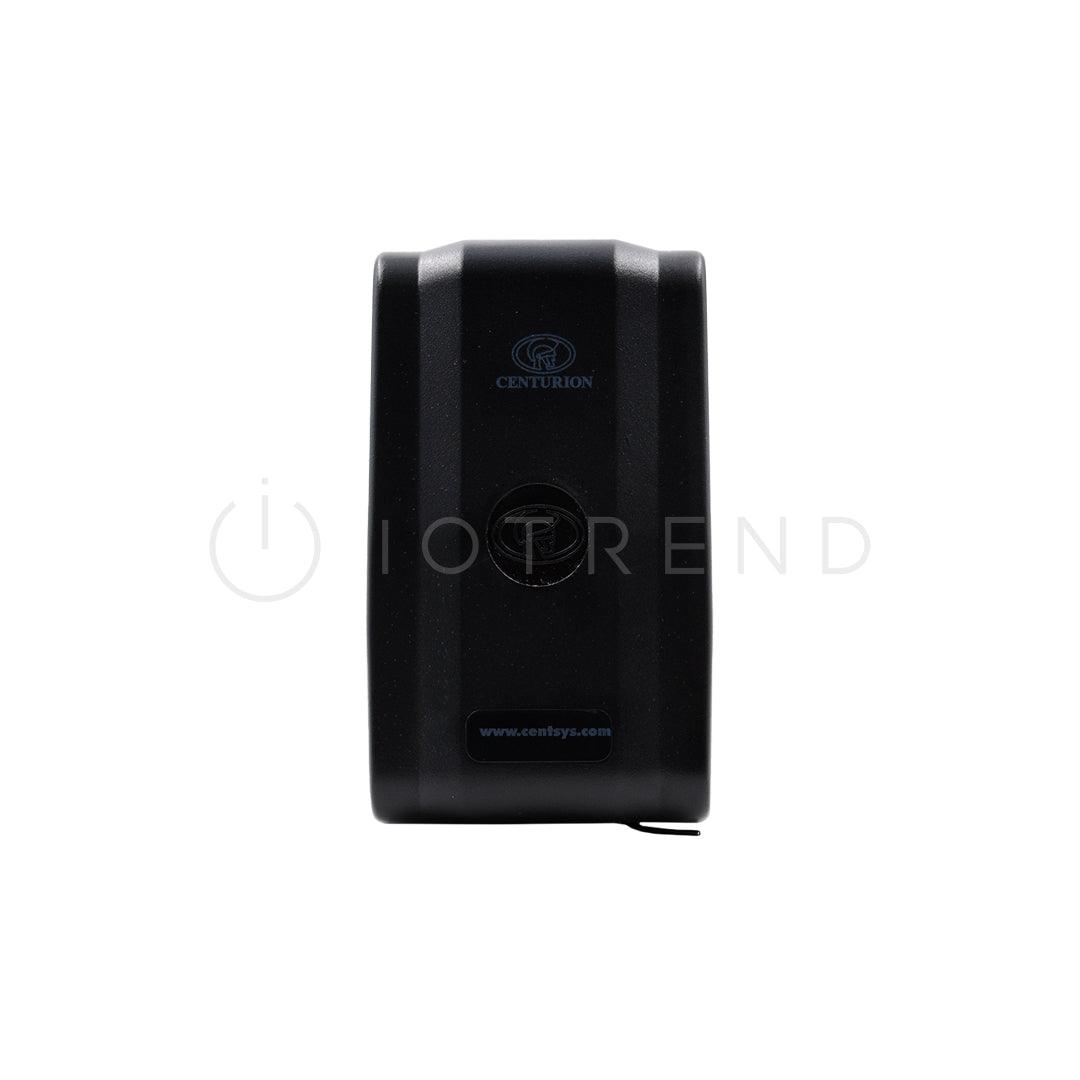

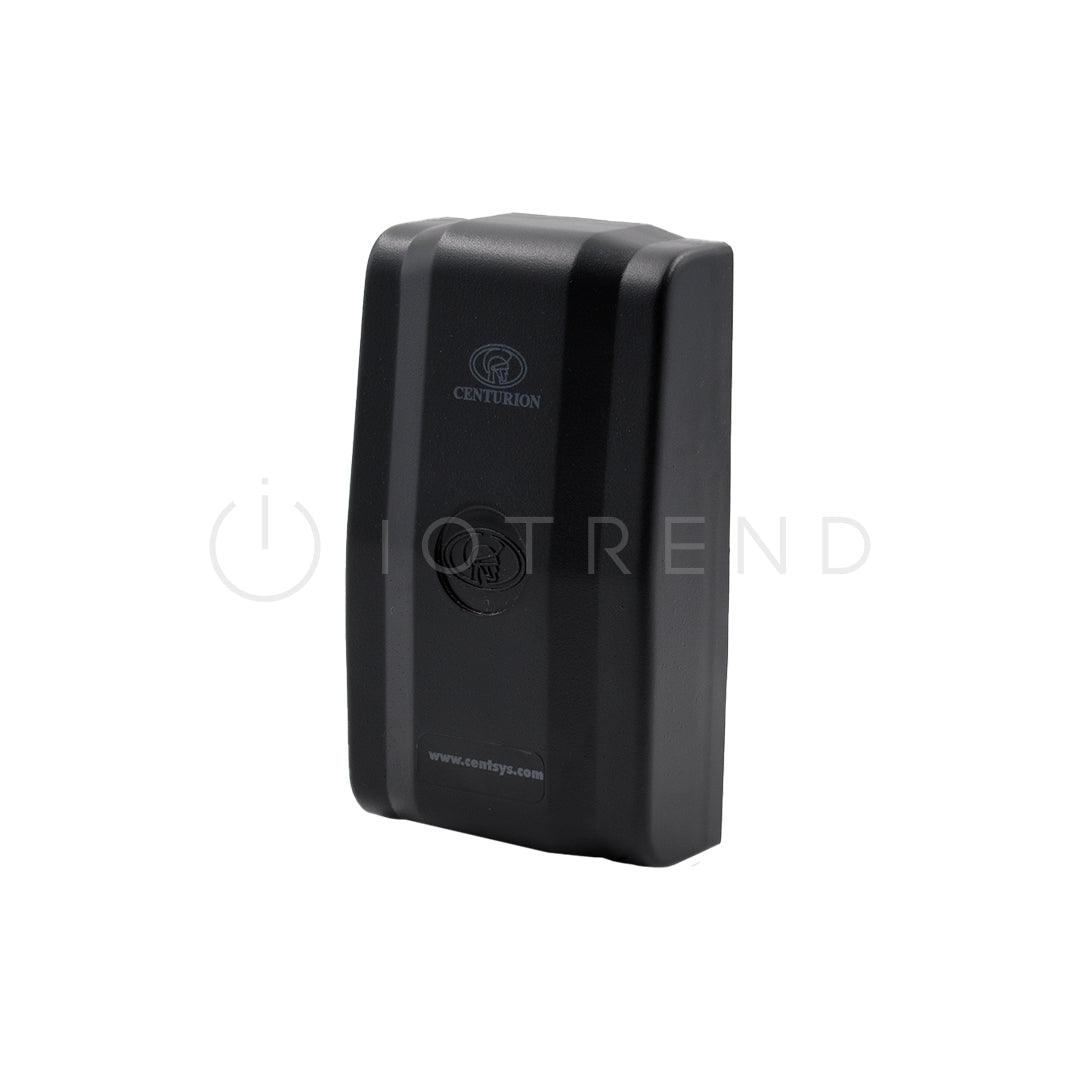

Centurion Nova 4 Channel Receiver 433MHz
Product Code: RX4NHV2433
The Centurion Nova 4 Channel Receiver 433MHz incorporates secure code hopping technology. The Helix receiver offers both link and master learning capabilities to provide the user with the ultimate in usability and security and the technology inherent in the receiver ensures that the functionality goes well beyond the scope of standard receivers, The Centurion Nova 4 Channel Receiver 433MHz supports the range of Nova transmitters.
The receiver uses self-learning technology, making it quick and easy to set up. For the best results, the receiver must be mounted as high up as possible and preferably away from metal objects and other radio equipment. The antenna wire has been tuned to an optimum length and should not be modified.
FEATURES
- Easy to install
- Easy to program
- DIY Friendly
- Learn links can be disabled for added security
- Programmable latching and non-latching
- Convenient timed Autolearn feature
- Secure code-hopping technology
- Excellent immunity to external interference for outstanding reliability
- Adjustable pulse times on outputs
SPECIFICATIONS
| Output channels | 4 |
| Compatible remotes | 1 Button, 2 Button, 4 Button |
| Operating frequency | 433.92MHz |
| Supply voltage | 12V to 24V DC |
| Quiescent current @ 12V DC | 11mA |
| Maximum current @ 12V DC | 40mA |
| Operating temperature | Minus 15°C to Positive 50°C |
| Humidity | 0 to 90% (non condensing) |
| Sensitivity | Minus 115dB |
| Self learning memory | 250 buttons |
| Receiver enclosure | UV Stabilised ABS plastic |
| Receiver dimensions | 75mm(L) x 55mm(W) x 33mm(H) |
| Package dimensions | mm(l) x mm(w) x mm(h) |
| Package weight | g |
| Warranty | 24 Month carry in product Manufacturers warranty |
WARNING AND LIMITATIONS
• Do not in any way modify the components of the receiver
• Do not install the receiver near sensitive electrical components
• Do not install the receiver in an explosive atmosphere
WHAT'S IN THE BOX
1 x Centurion Nova Helix 4 Channel Receiver 433MHz
