PRODUCT INFORMATION
Dahua is a world-leading video-centric smart IoT solution and service provider. Based on technological innovations, Dahua Technology offers end-to-end security solutions, systems, and services to create values for city operations, corporate management, and consumers.
DAHUA 8 Channel DVR & 8 Bullet Cameras DIY CCTV Kit Includes 8 x 2MP HDCVI IR Bullet Camera with an 8 Channel Penta-brid 1080N/720p Cooper and a This kit comes with wonderful features shown below.
Features:

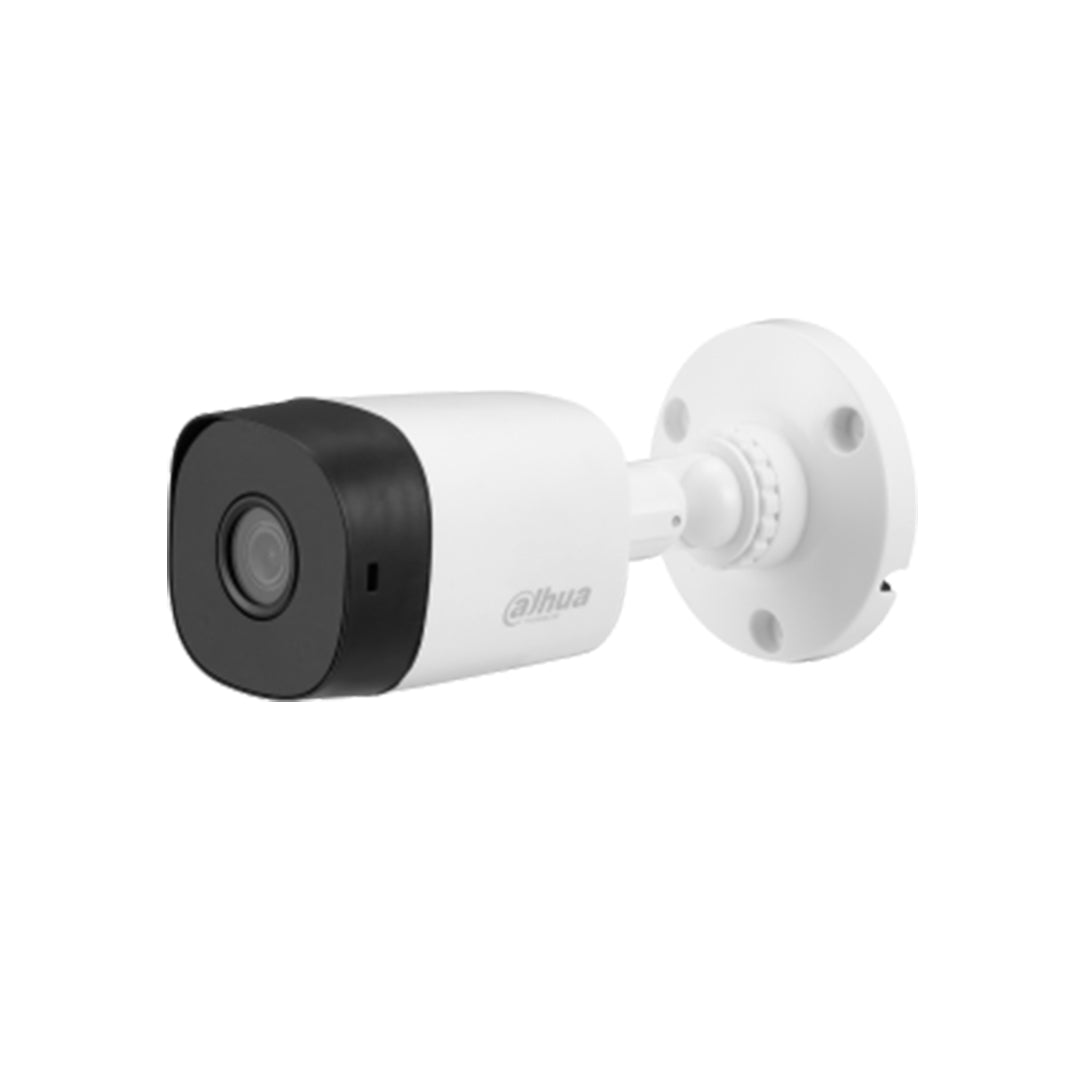

- 2MP HDCVI IR Bullet Camera
- Max. 30 fps@1080p
- CVI/CVBS/AHD/TVI switchable
- 3.6 mm fixed lens (2.8 mm, 6 mm optional)
- Max. IR length 20 m, Smart IR
- IP67,12 VDC
- H.265+/H.265 dual-stream video compression
- Supports Full channel AI-Coding
- Supports HDCVI/AHD/TVI/CVBS/IP video inputs
- Max 10 channels IP camera inputs, each channel up to 6MP; Max 40 Mbps incoming bandwidth
- Up to 4 channels video stream ( analog channel ) SMD Plus
-

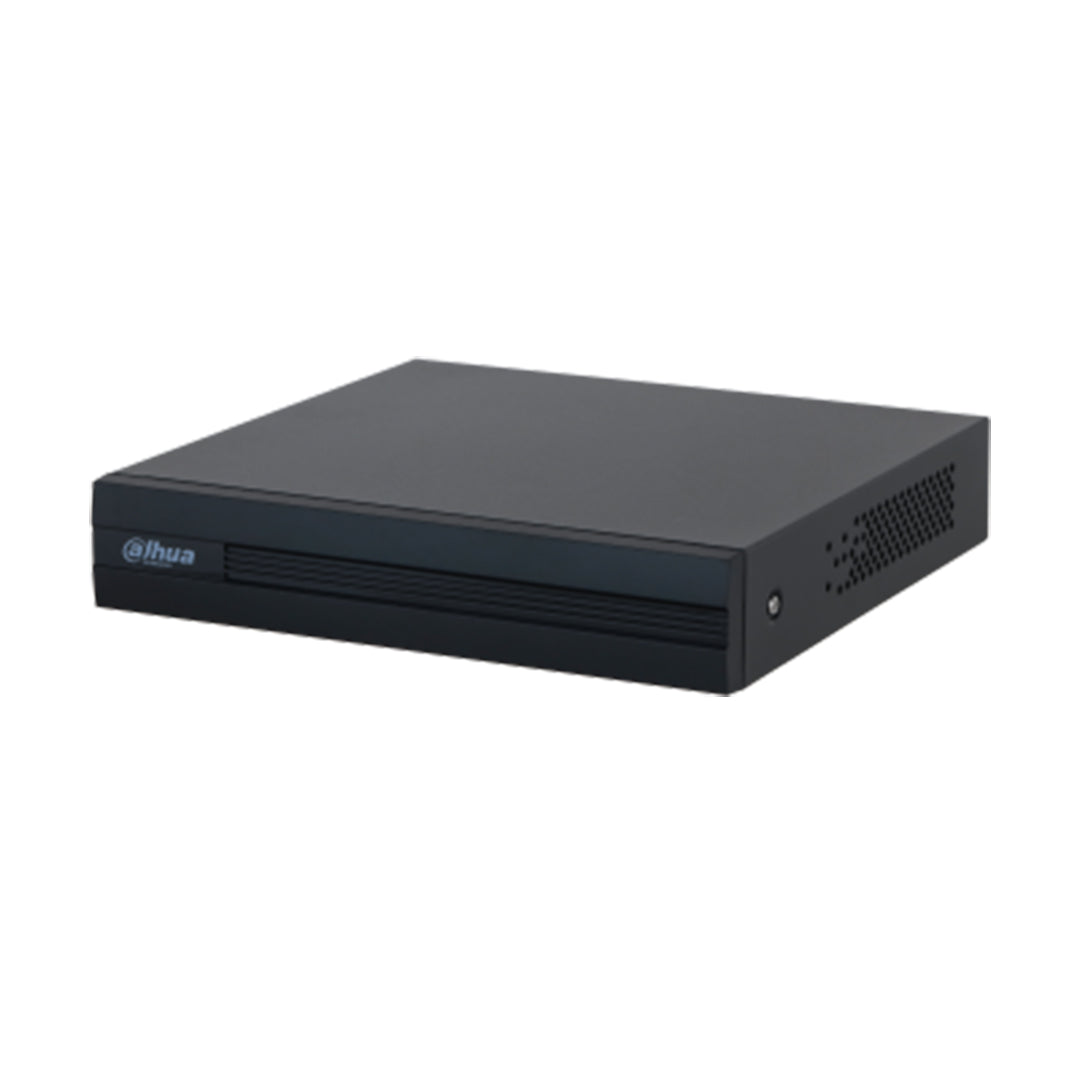

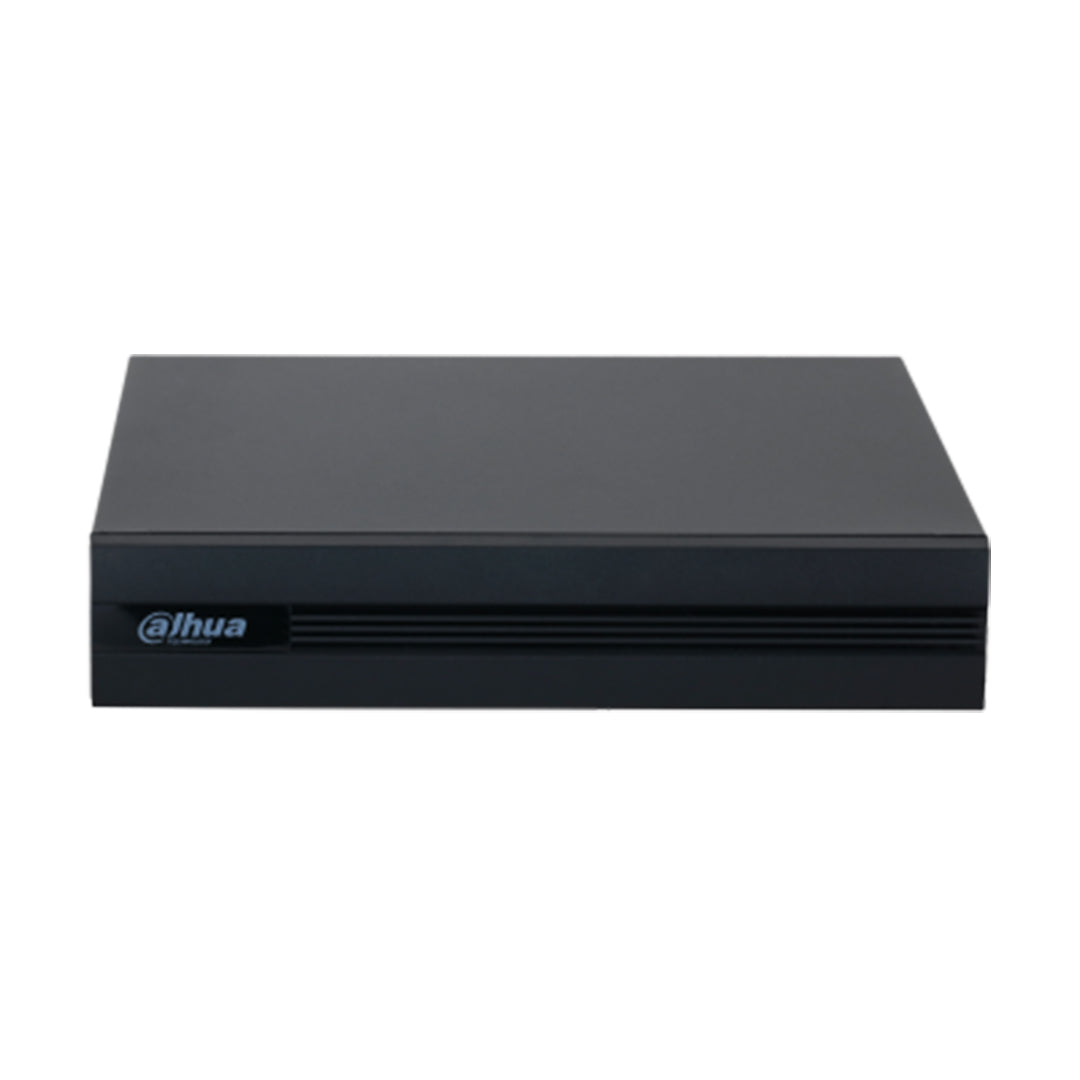

8 Channel Penta-brid 1080N/720p Cooper 1U 1HDD WizSense Digital Video Recorder
Camera Specifications
| Brand | DAHUA |
| Image Sensor | 2MP CMOS |
| Max. Resolution | 1920 (H) × 1080 (V) |
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Power Supply | 12 VDC ± 30% |
| Protection | IP67 |
| Product Dimensions | 149mm(W) x 70mm(H) x 70mm(L) |
| Product Weight | 0.1Kg |
DVR Specifications
| Main Processor | Industrial-grade processor |
| Operating System | Embedded Linux |
| Analog Camera Input |
|
| Camera Input | 1. CVI: 1080p@25/30 fps, 720p@25/30 fps. 2. TVI: 1080p@25/30 fps, 720p@25/30 fps. 3. AHD: 1080p@25/30 fps, 720p@25/30 fps. |
| Video Output | 1 HDMI, 1 VGA HDMI/VGA: 1920 × 1080, 1280 × 1024, 1280 × 720 |
| Power Supply | 12 VDC, 1.5 A |
| Product Dimension | 198mm(W) x 200mm(L) x 40mm(H) |
| Product Weight | 0.7Kg |
What's in the box:
- 1 x Dahua 8CH DVR
- 8 x Dahua Bullet Camera
- 8 x 15 Meter CCTV Power Cable

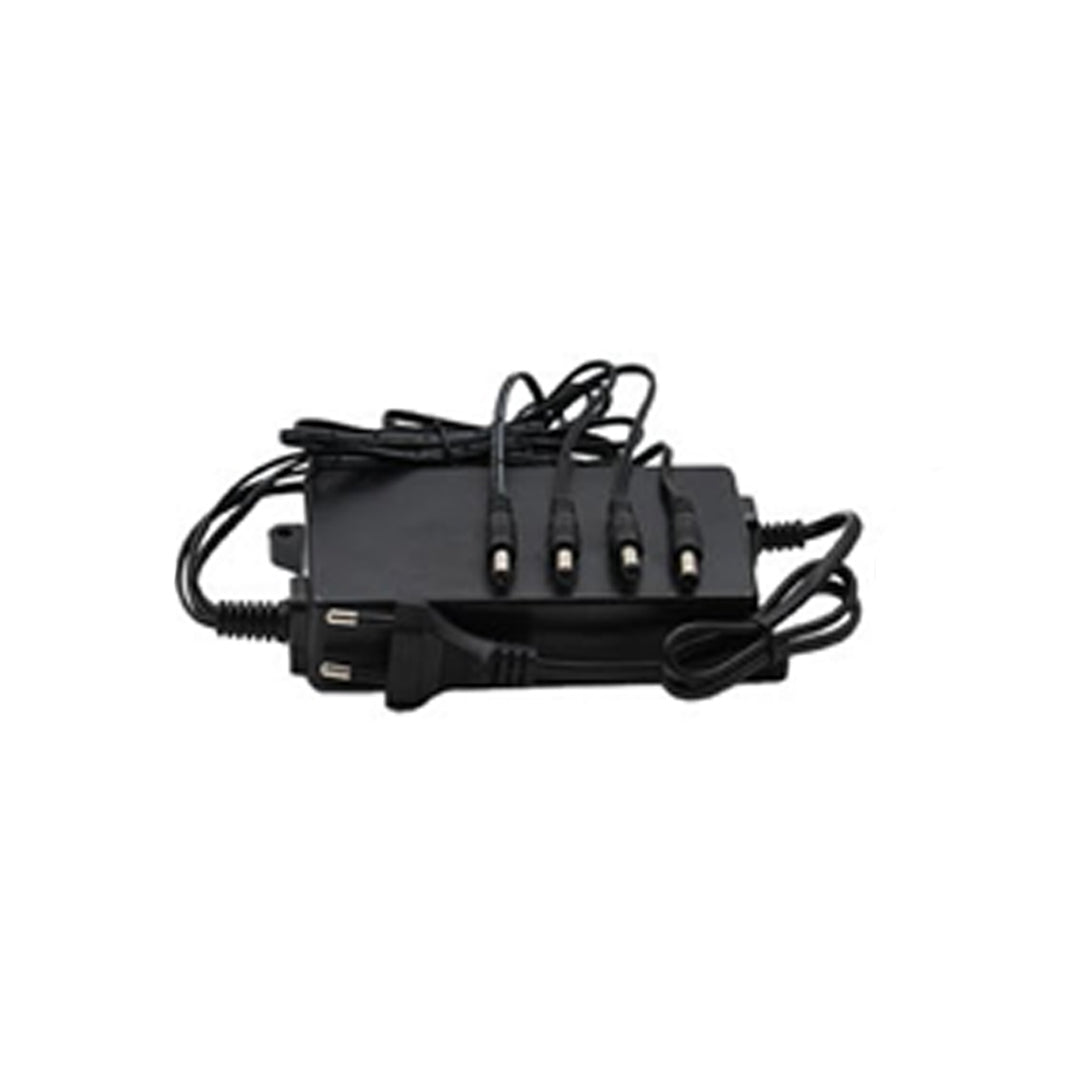

- 2 x 12v2AMP Power Supply ( Pin size-5.5*2.5)
- 2 x DC Female to Male Cable

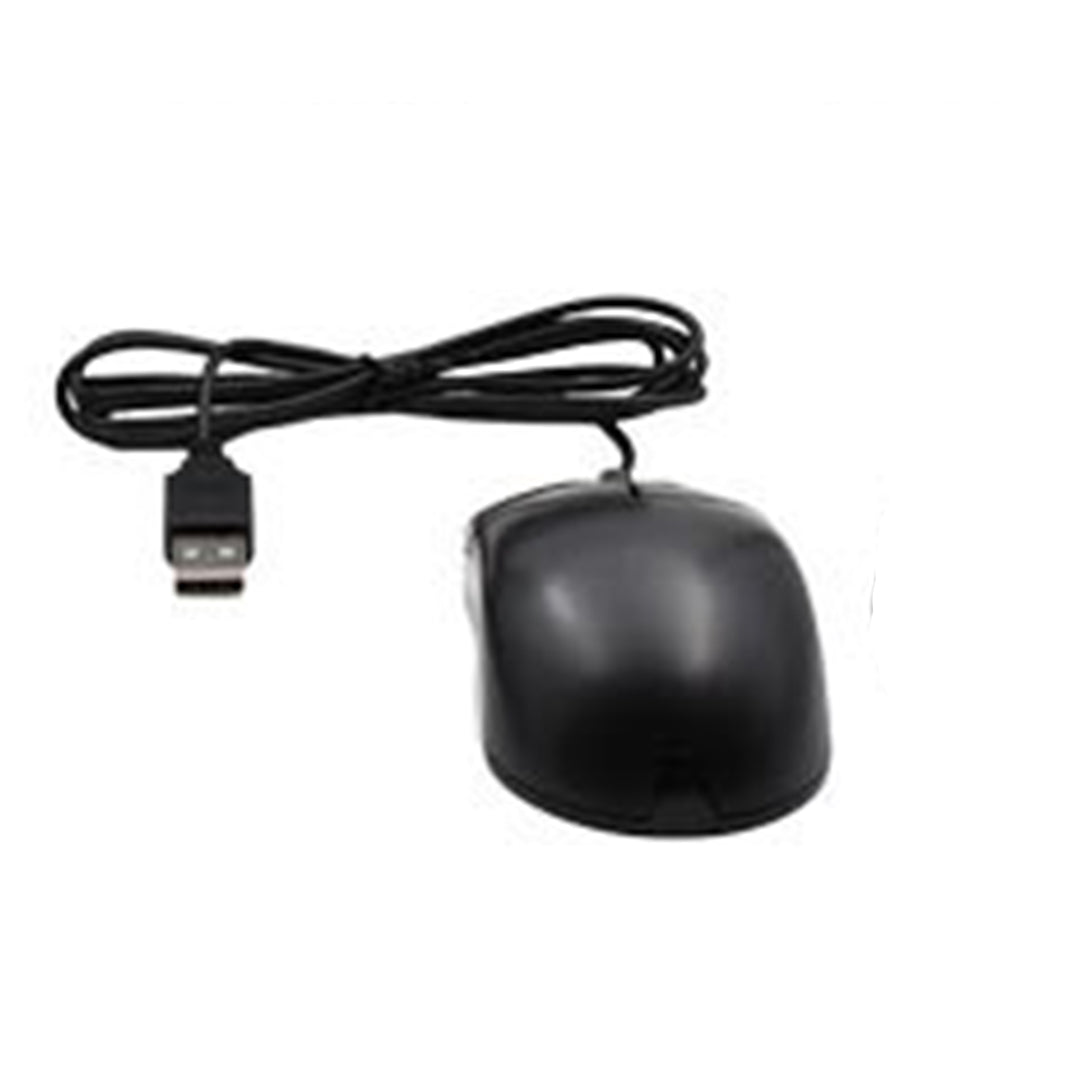

- 1 x PC Mouse

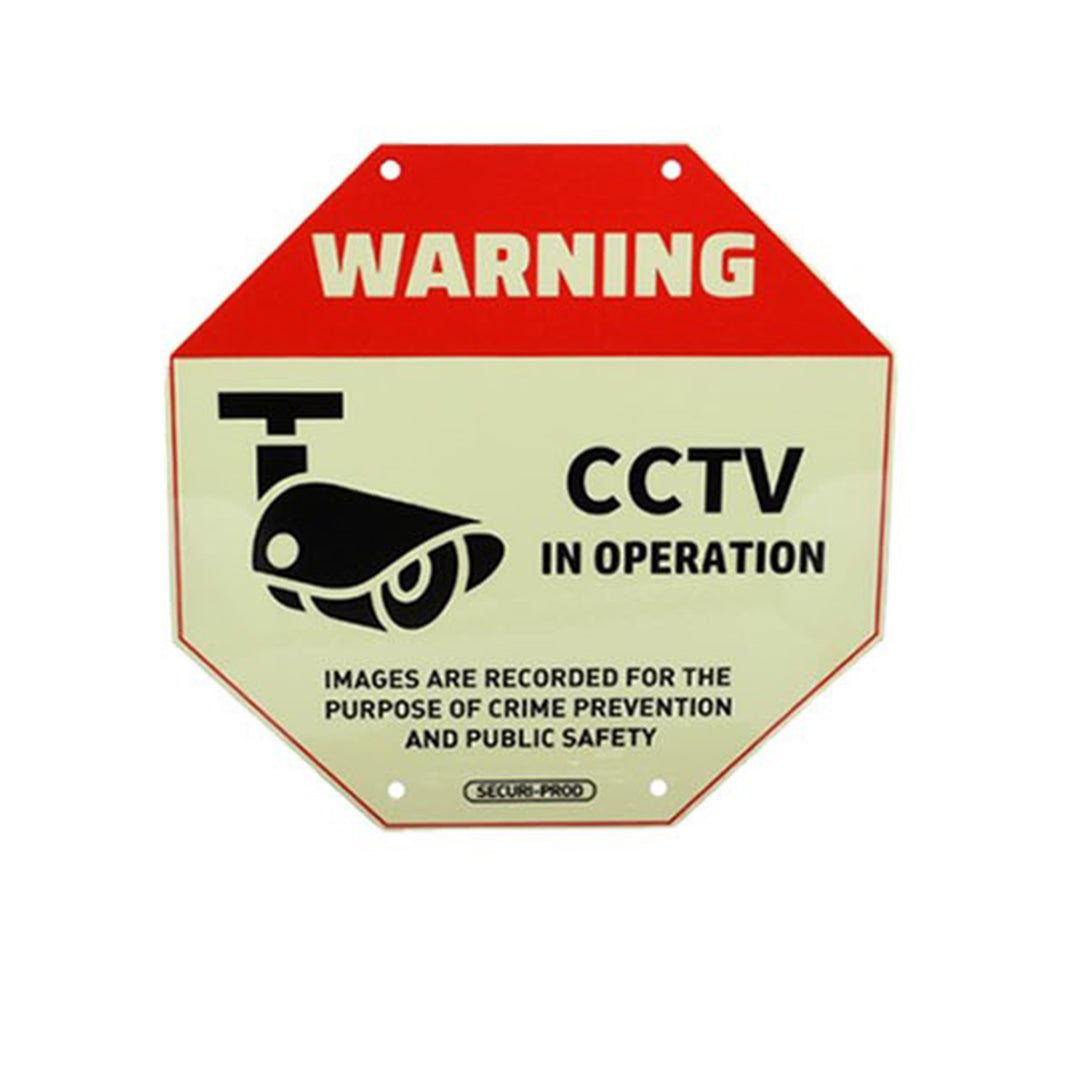

- 1 x Securi-Prod Warning Sign

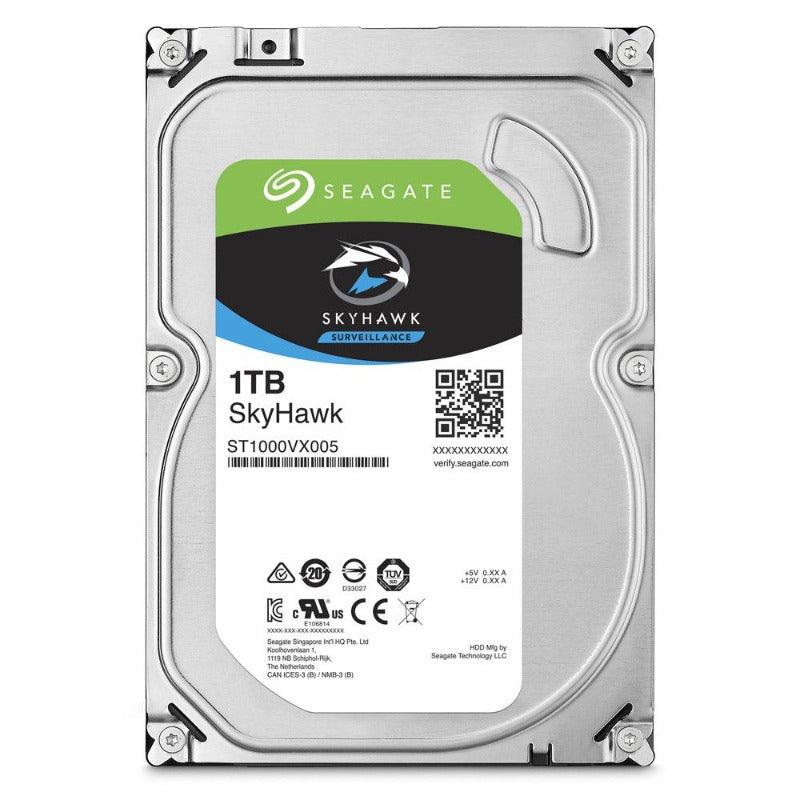

- 1 x 1TB HDD
- 1 x Instruction Manual
