PRODUCT INFORMATION
Product Code: DS-2CE76H8T-ITMF(2.8mm)

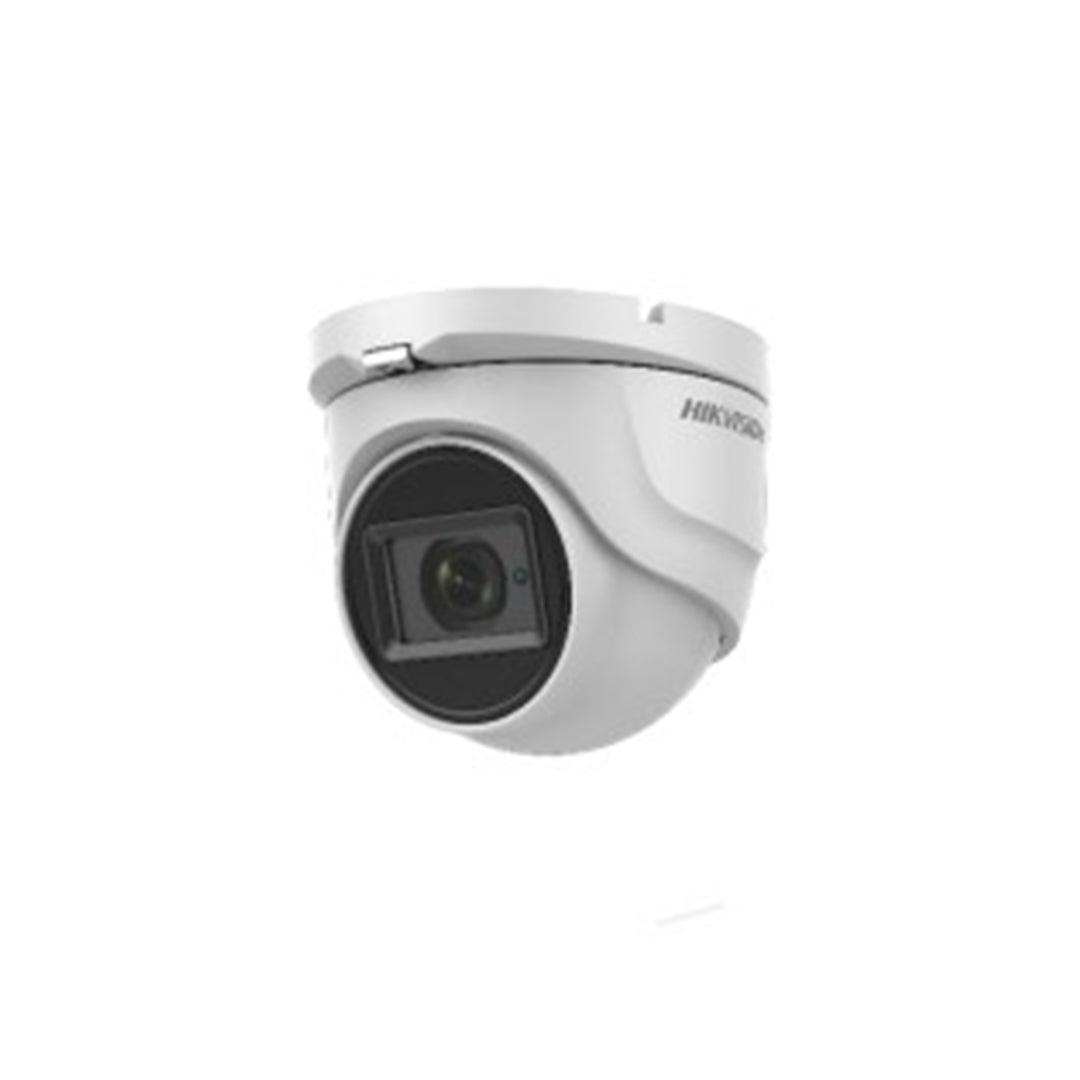

The Hikvision 5Mp Full HD Analog Low Light Turret Camera has a 2.8mm fixed lens with IR up to 30m.
Features
• 5 MP high performance CMOS
• 2560 × 1944 resolution
• 2.8 mm, fixed lens
• EXIR 2.0, smart IR, up to 30 m IR distance
• OSD menu, 3D DNR, 130 dB true WDR
• 4 in 1 video output (switchable TVI/AHD/CVI/CVBS)
• IP67
• Up the coax (HIKVISION-C)
Specifications
| Brand | Hikvision |
| Type | Analog |
| Image Sensor | 5 megapixel progressive scan CMOS |
| Video Output | 1 HD Analog Output |
| Switch Button | TVI/AHD/CVI/CVBS |
| Resolution | 2560(H) x 1944(V) |
| Lens | 2.8mm fixed lens |
| Frame Rate | TVI: 2 MP@25fps, 2 MP@30fps, 4 MP@25fps, 4 MP@30fps, 5 MP@20fps |
| AHD: 4 MP@25fps, 4 MP@30fps, 5 MP@20fps | |
| CVI: 4 MP@25fps, 4 MP@30fps C | |
| CVBS: PAL, NTSC | |
| Minimum Illumination | Color: 0.003 Lux@(F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR cut filter |
| Day/Night Mode | Auto/Color/BW |
| White Balance | Auto/Manual |
| IR Range | Up to 30m |
| Privacy Mask | 4 Programmable privacy masks |
| Motion detection | 4 Programmable areas |
| Functions | Brightness, Sharpness, 3D DNR, Mirror and Smart IR |
| Power Supply | 12VDC±25% (Use 1 power adapter to power up 1 camera) |
| Power Consumption | Max 5.8W |
| Material | Metal |
| Protection Level | IP67 |
| Communication | Up the coax, Protocol: HIKVISION-C (TVI output) |
| Optional Extra's | Wall Mount Bracket, Junction Box, Coaxial Cable, BNC, BNC Black Boot, DC Plug Male, DC Plug Female, Balun 1 Channel UTP Passive Video Transceiver Pair, |
| Product Dimension | 90mm x 79.37mm |
| Product Weight | 300g |
| Packaged Dimension | mm(l) x mm(w) x mm(h) |
| Mass of unit packed | g |
| Warranty | 1 Year Limited Manufacturer Warranty |
What's in the box
1 x Hikvision 5MP HD-TVI EXIR Turret Camera - IR 30m - 2.8mm Fixed - IP67
