PRODUCT INFORMATION
Product Code: DS-1272ZJ-110

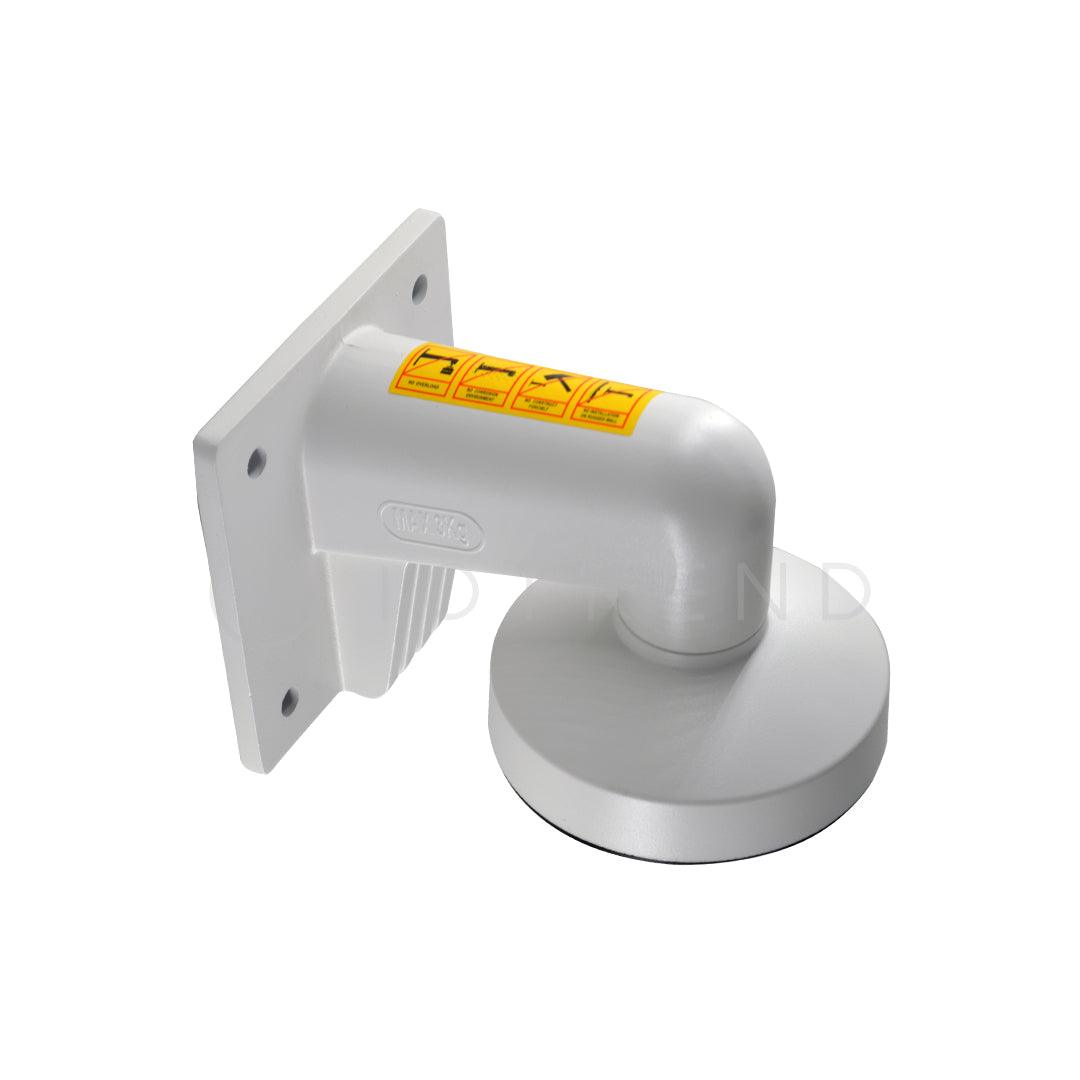

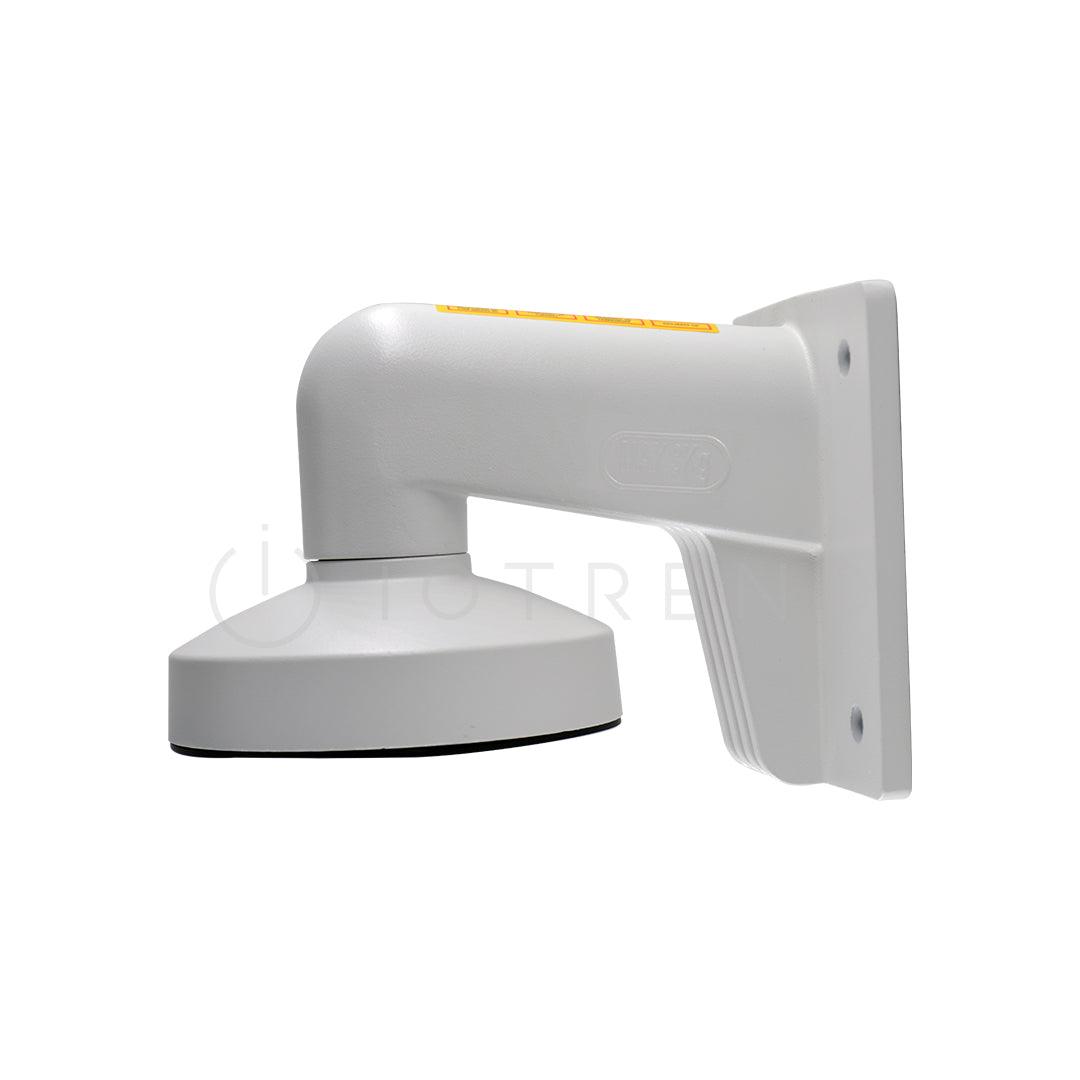

The Hikvision Wall Mount Bracket for Fixed Dome and Turret Cameras is ideal for camera installations whereby cable connections can be secured within the bracket making the installation quick and tidy. The bracket allows for outside installation of Dome and Turret Cameras where horizontal mounting surfaces are not available.
Features
• Aluminum alloy material with surface spray treatment
• Exquisite cable entrance design #Iotrend
• Waterproof rubber blanket for outdoor application
• Convenient installation coordinating with adaptor
Wall Mount Bracket Compatibility
• Hikvision 2MP Dome Camera - IR 30m - 2.8mm Fixed Lens - IP67 - IK10 - BLACK - DS-2CD2125FWD-I(Black)
• Hikvision 2MP Dome Camera - IR 30m - 4mm Fixed Lens - IP67 - IK10 - DS-2CD2126G2-ISU(4mm)
• Hikvision 5MP HD-TVI EXIR Turret Camera - IR 30m - 2.8mm Fixed - IP67 DS-2CE76H8T-ITMF(2.8mm)
Specifications
| Brand | Hikvision |
| Color | White |
| Material | Aluminum Alloy |
| Product Dimension | 169mm(l) x 122mm(w) x 120mm(h) |
| Product Weight | 420g |
| Packaged Dimension | mm(l) x mm(w) x mm(h) |
| Mass of unit packed | g |
| Warranty | 1 Year Manufacturer Warranty |
Warnings and limitations
• The bracket should be installed on flat wall
• The wall must be capable of supporting over 3 times as much as the total weight of the camera and the mount. #Iotrend
• The maximum load capacity of the bracket is 4.5KG
What's in the box
1 x Hikvision Wall Mount Bracket for Fixed Lens Dome and Turret Cameras White
