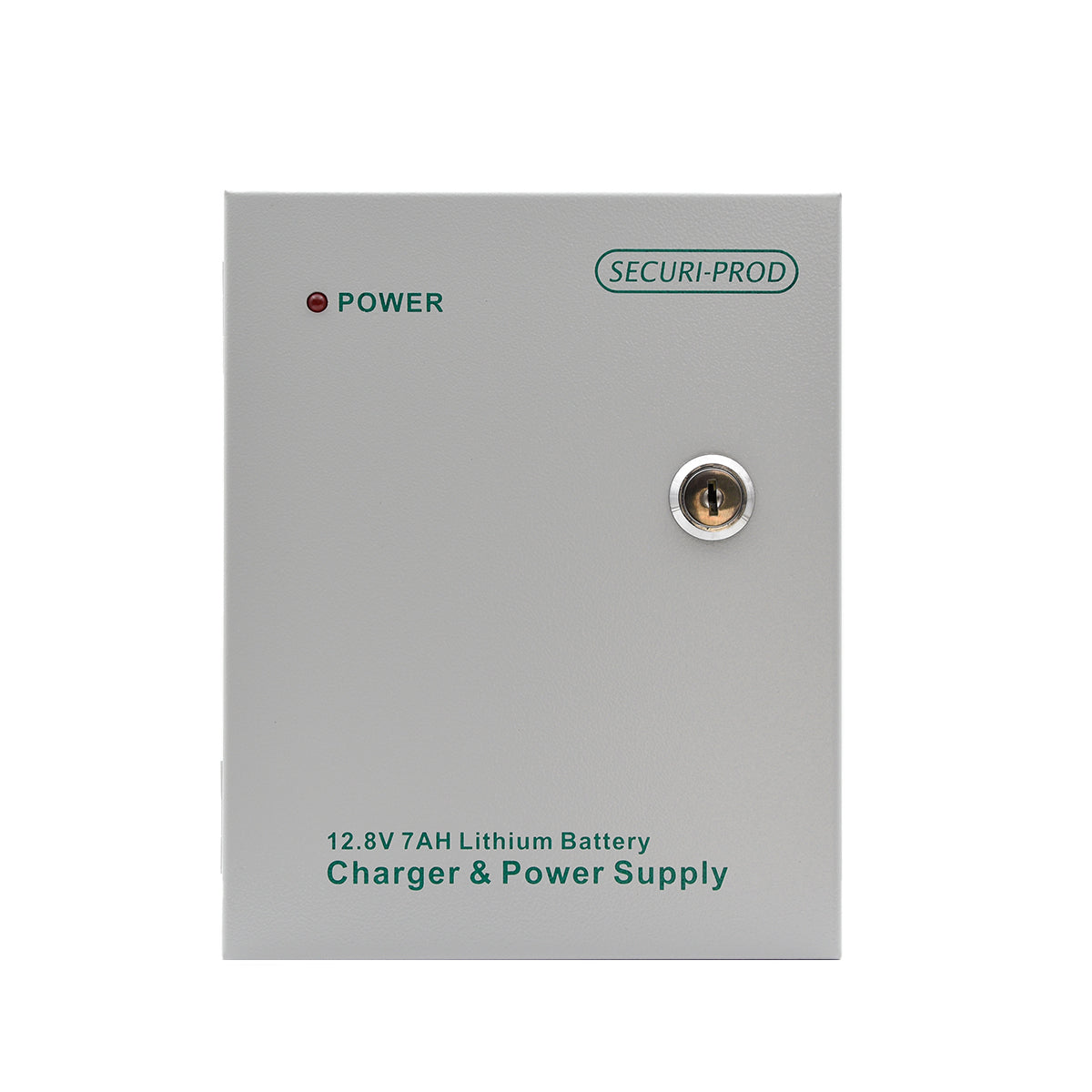

Securi-Prod 3Amp Lithium Battery Backup Power-Supply Front View PS49-l
SALE 16% OFF
Securi-Prod 3Amp Lithium Battery Backup Power-Supply Front View PS49-l
Securi-Prod 3Amp Lithium Battery Backup Power-Supply Inside View PS49-l

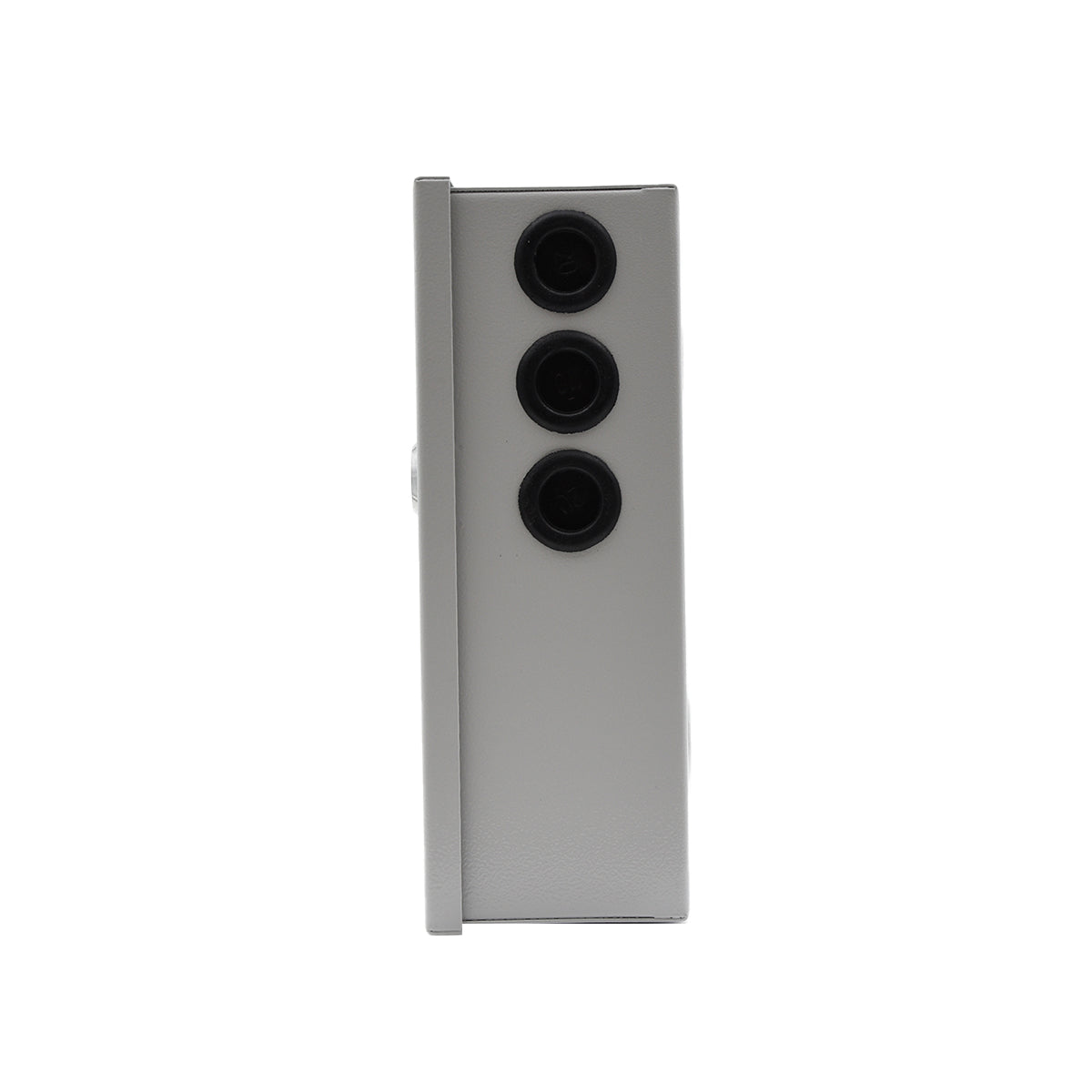

Securi-Prod 3Amp Lithium Battery Backup Power-Supply Side View PS49-l

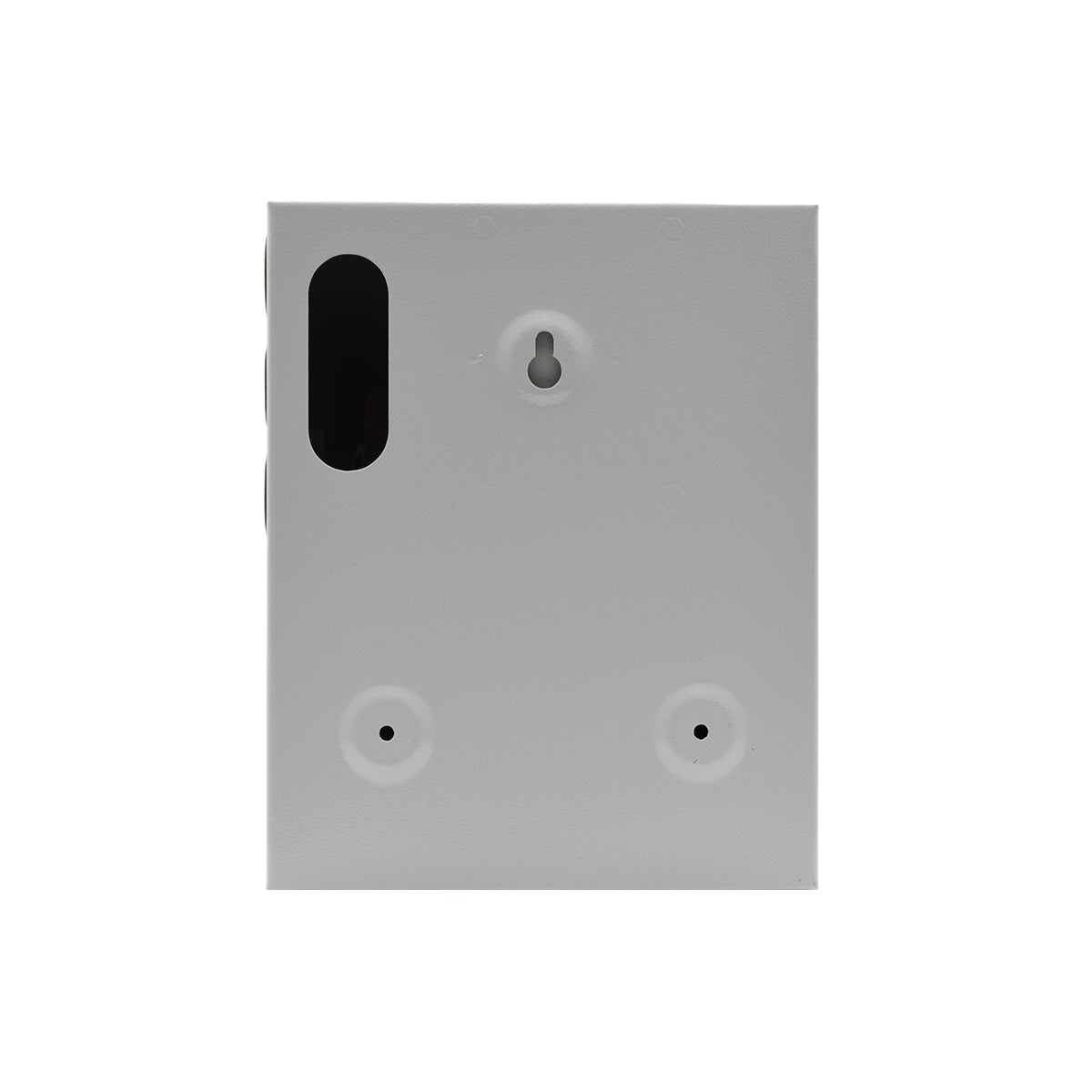

Securi-Prod 3Amp Lithium Battery Backup Power-Supply Back View PS49-l

Securi-Prod 3Amp Lithium Battery Backup Power-Supply

R 575.00 Incl. VAT
R 793.00 Incl. VAT

Available to order online or collect at 6 Cosmic Street Linbro Park, Sandton, 2090 (Map)

PRODUCT INFORMATION

Securi-Prod LifePO4 12.8V 7AH power supply data sheet Securi-Prod LifePO4 12.8V 7AH Power Supply Installer Manual

The Securi-Prod Lithium 14.6VDC 3Amp battery backup power-supply is suitable for various security battery backup applications as well as charging a 12V 7ah Lithium LifePO4 battery.



CAUTION - NOT SUITABLE FOR LEAD SEAL ACID AND GEL BATTERY



APPLICATIONS OF THE SECURI-PROD 3Amp LITHIUM BATTERY BACKUP POWER-SUPPLY:

  • Charging of a 7ah Lithium LifePO4 battery
  • CCTV battery backup
  • Alarm Panel battery backup
  • Access Control battery backup
  • Magnetic and Bolt lock battery backup



FEATURES OF THE SECURI-PROD 3Amp LITHIUM BATTERY BACKUP POWER-SUPPLY:

  • The 3Amp Lithium Power Supply features high current charging which enables the unit to charge a 7ah LiFePO4 battery in less than 4 hours.
  • Also has a BMS wake-up feature from low voltage disconnect protection
  • Constant Current – Constant voltage charging algorithm
  • Furthermore, the unit has a lockable steel enclosure



SPECIFICATIONS OF THE SECURI-PROD 3Amp LITHIUM BATTERY BACKUP POWER-SUPPLY:

Input Voltage Range 110 – 240VAC
Input Frequency Range 50 – 60Hz
Output Voltage 14.6V ± 0.5V DC
Output Rated Current 3A
Output Rated Power (Total) 73W
Output Efficiency (Typ.) ≥82%
Status/Relay Monitor AC fail relay and buzzer
Charging Voltage Voltage 14.6V ± 0.5V DC
Charging Current 2A. CC-CV Only for LiFePO4 Battery
Protection Input 2A / 250VAC fuse
Protection Battery Low Voltage 12.2V ± 0.2V DC. PSU shuts down until AC power recovers. LiFePO4 Battery wake-up ≥ 300S
Protection Short Circuit Recovers automatically after fault condition is removed.
Environment Working Temperature -20 - 50℃
Environment Storage Temperature -30 - 80℃
Environment Working Humidity 20 - 80%RH
Environment Storage Humidity 10 - 90%RH
EMC Standards EN 55022: 2010, EN 55024: 2010, EN 61000-3-2: 2014, EN 61000-3-3: 2013
LVD Standards EN 60950-1: 2006 + A11: 2009 +A1: 2010 +A12: 2011 +A2: 2013
Product Material Metal Box with Key (Green branding for model differentiation)
Product Dimension 203(H) x 163(W) x 74(D) mm
Product Weight 1.3kg
Packaging Dimension 230(H) x 180(W) x 90(D) mm
Packaging Weight 1.4kg



WHAT'S IN THE BOX:

  • 1 x Securi-Prod 3Amp Lithium Battery Backup Power Supply

Please note - Battery not included
