The Securi-Prod Outdoor Dual PIR with Microwave Detector is a Quad-technology (PIR+PIR+MW+ASIC) detector, designed for outdoor applications.

Stability and dependability are achieved by applying multi grade digital signal processing, advanced algorithms and signals received from 3 individual sensors, two PIR’s and one Microwave.

This detection method offers 3 different detection modes on 2 sensitive grading methods allowing it to automatically set the best detection procedure according to the environment allowing the best differentiation rate between maximum detection and minimum false alarm rate. With normal “AND/OR” modes, and “EI” the detector can avoid masking attempts such as spraying of the lens.

FEATURES OF THE SECURI-PROD OUTDOOR DETECTOR:

• Two PIR’S and Microwave detection technology
• Microwave with pulse transmission
• Automatic setting of anti-masking
• Adjustable detector detection sensitivity
• 18 PIR segments (beams) Fresnel lens with down-view window on 4 planes
• Detection angle: 90°at 12 meters
• White light filter
• Air-proof optical parts
• Vertical adjustment
• Detection mode EI, OR, AND
• Alarm type memory (PIR or MW)
• Alternative Led OFF
• Waterproof
• Corner and wall installation
• Mounting Bracket adjustment options: 90°horizontal and 30°vertical adjustments
• Pet and 15m long range lenses included

SPECIFICATIONS OF THE SECURI-PROD OUTDOOR DETECTOR:

WHAT’S IN THE BOX:

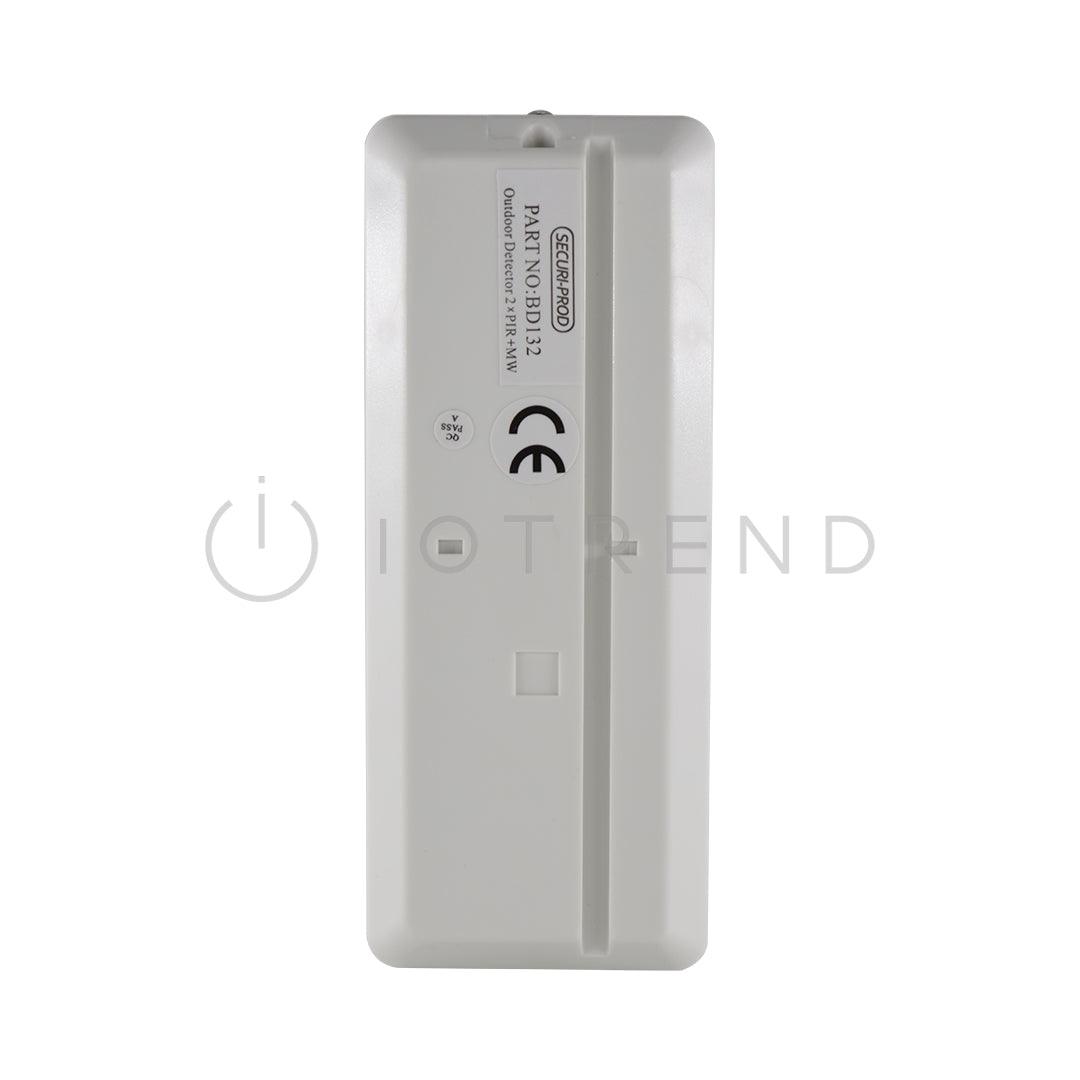

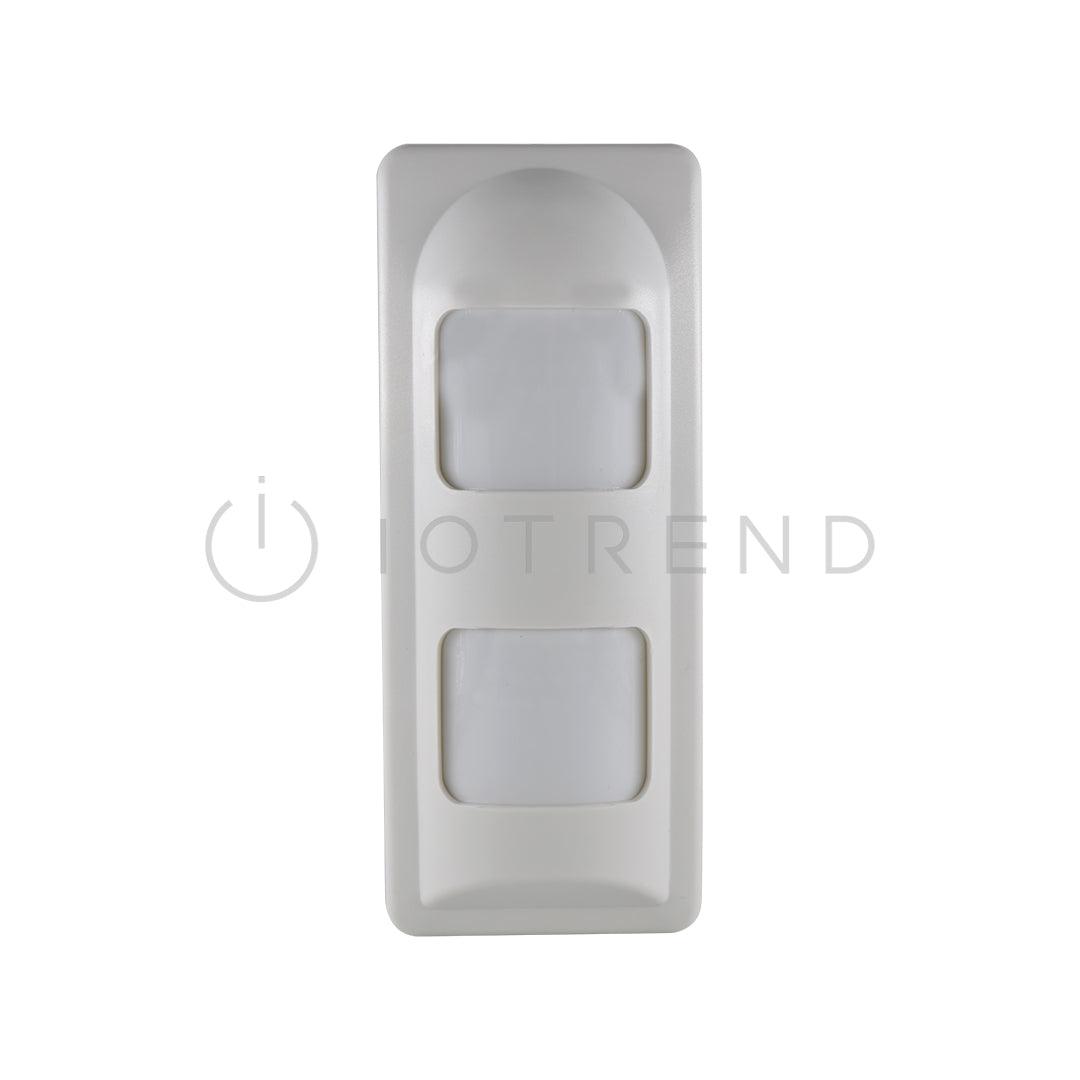

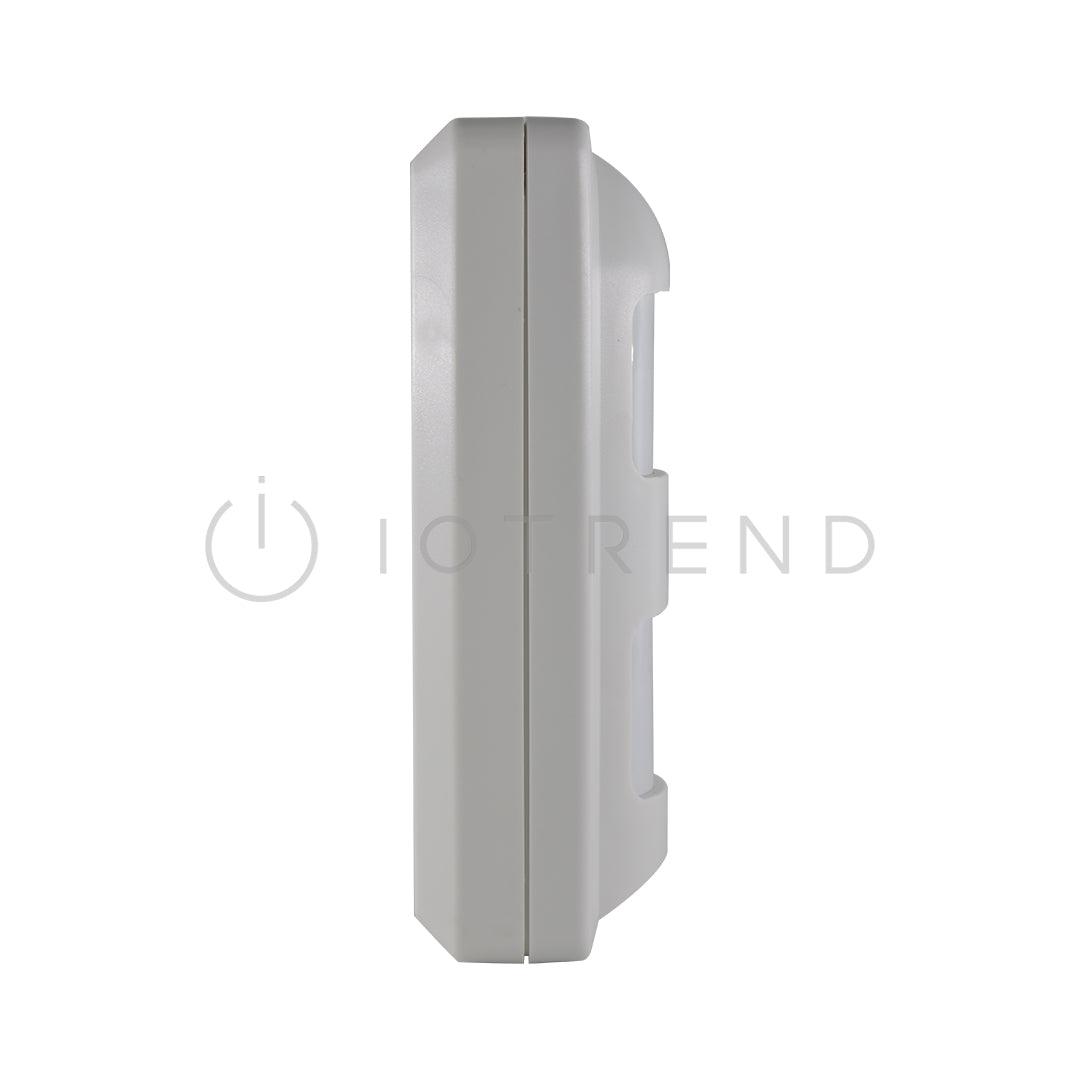

1 x Securi-Prod Outdoor Dual PIR with Microwave Detector
