PRODUCT INFORMATION

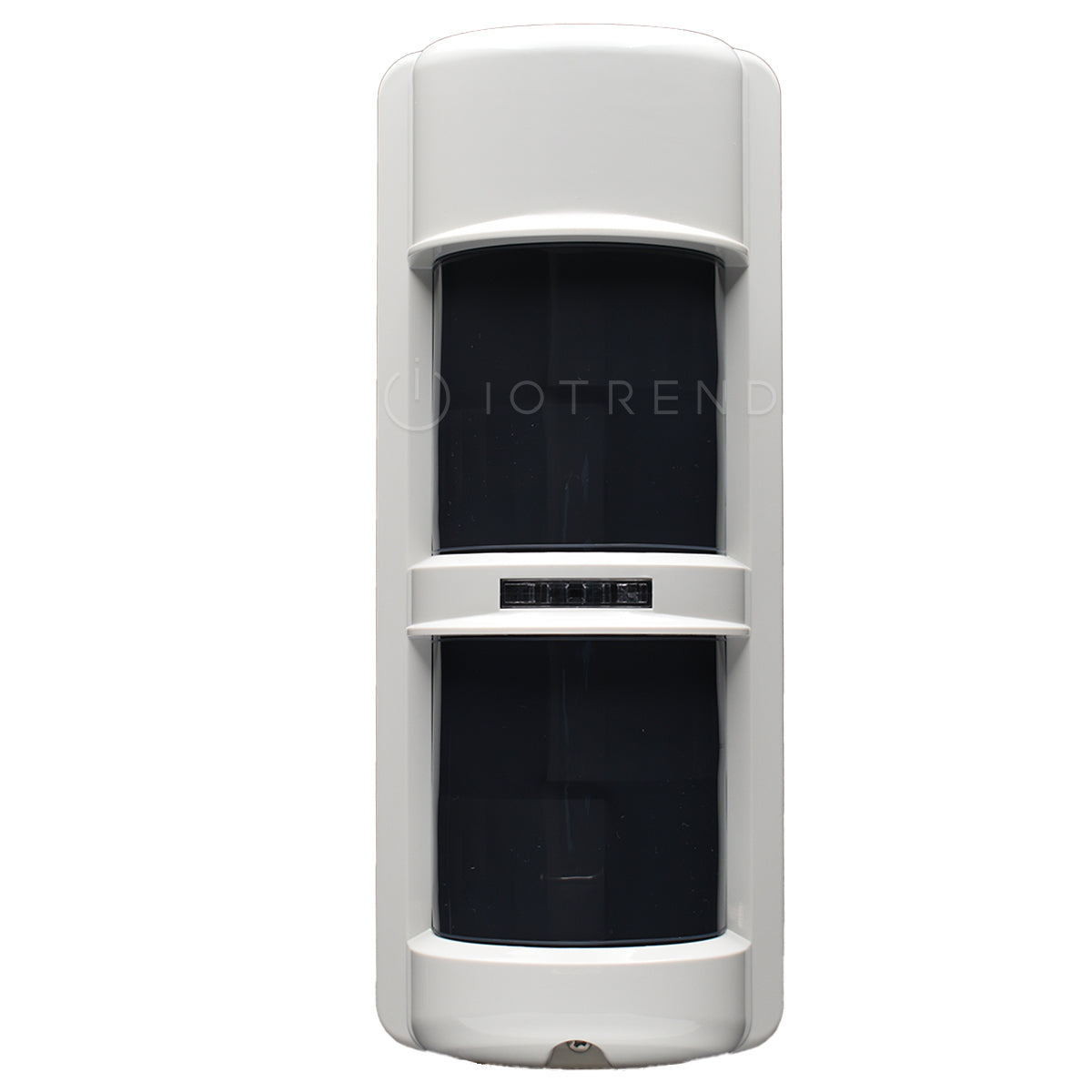

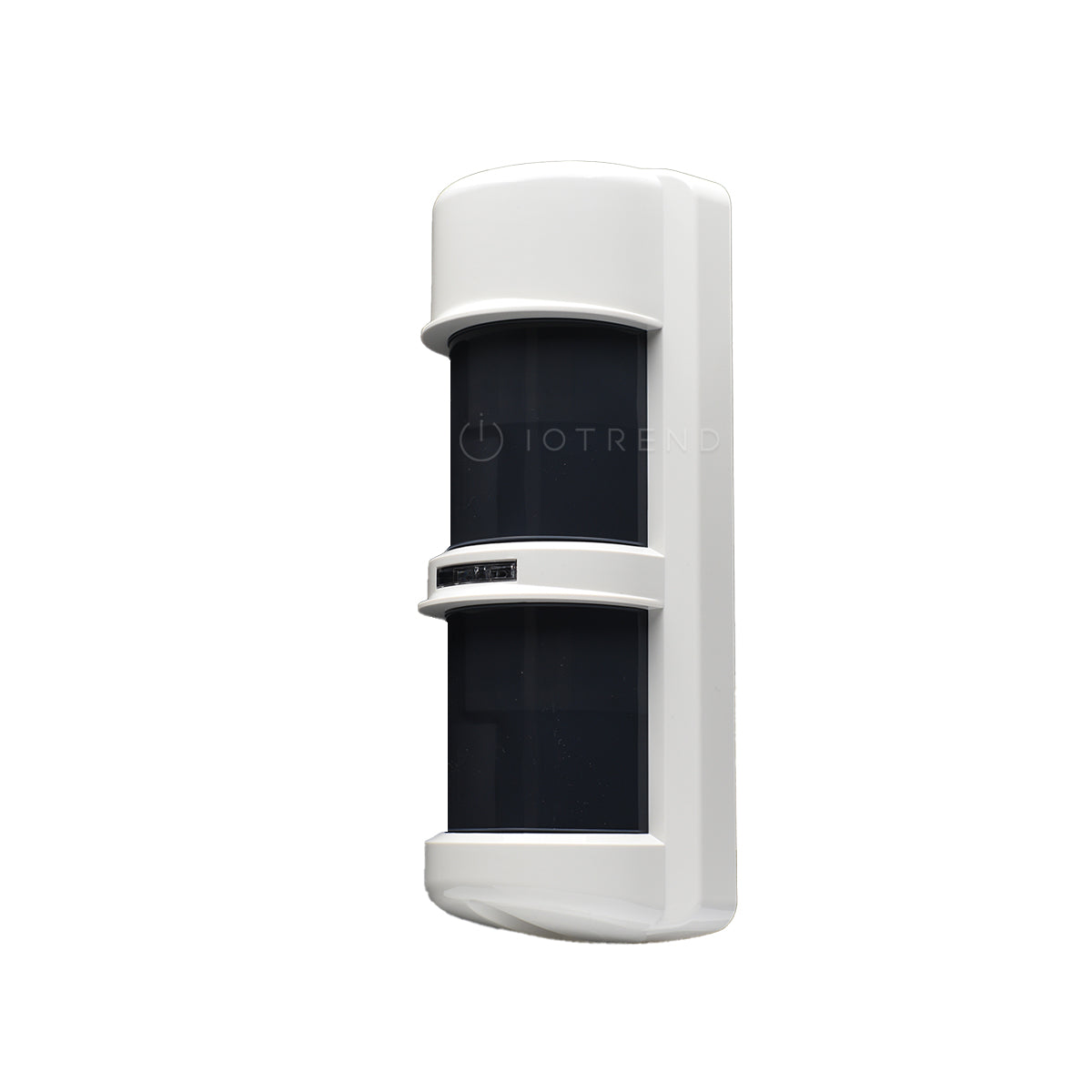

The Takex OMS-12FE Dual-Zone 12m x 180 Degrees is a wired Dual-Zone PIR, that combines high-performance optics and advanced circuitry with the highest-grade components available.
The OMS-12FE uses a reliable dual-zone detection system to create 180 degrees of volumetric protection with a range of 3 to 12m.

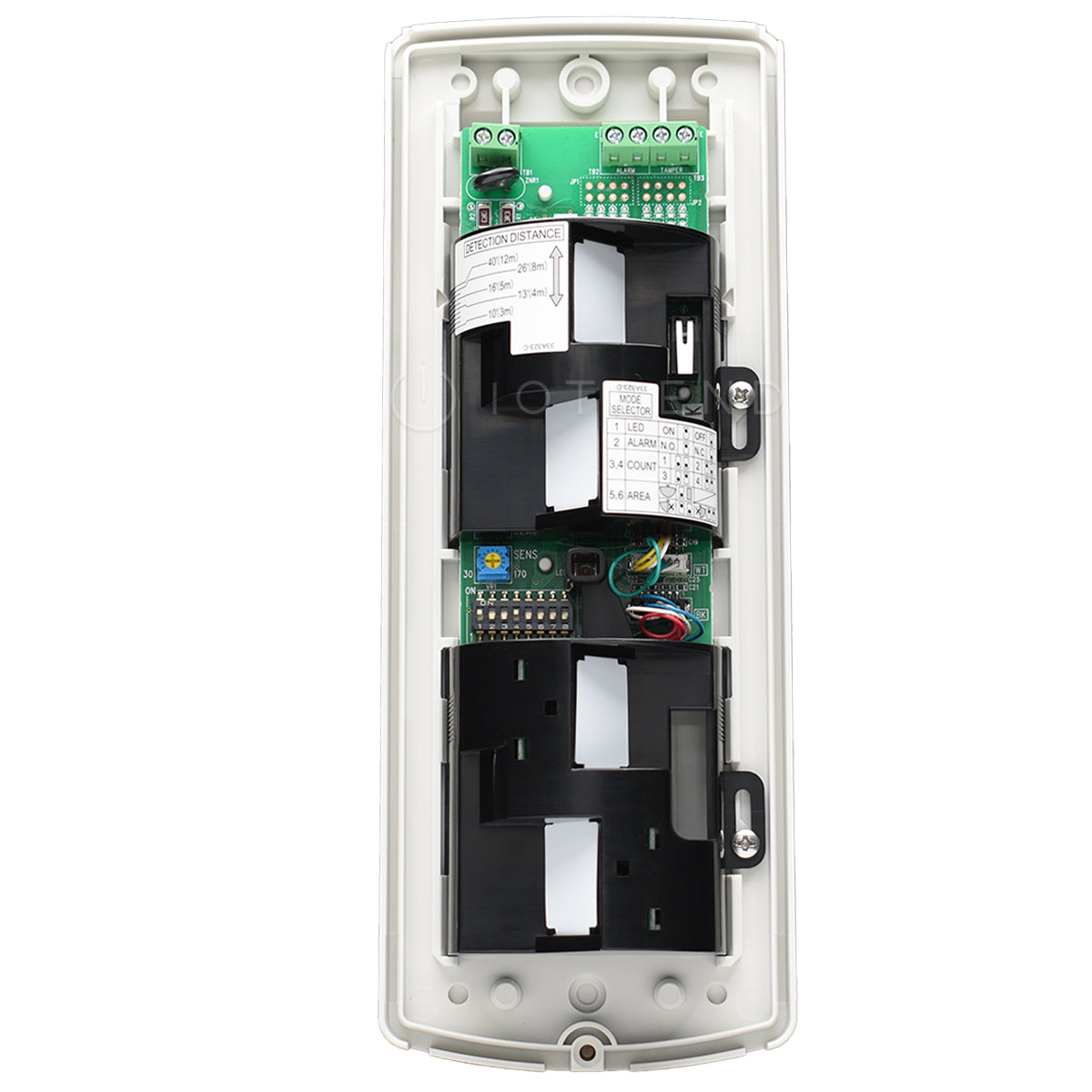

Equipped with 4 pyros, the detection field is divided into left and right zones which can be enabled/disabled as required for precise area control. The slim-profile housing features a back-tamper, and the clearly labelled option switches make installation a breeze.
An alarm is only initiated when detection occurs in both horizontal and downward zones simultaneously, this prevents false alarms from distant automobiles, small pets or small animals.
The Takex OMS-12FE Dual-Zone 12m x 180 Degrees PIR is pet-friendly, uses dual-zone system to create 180° of volumetric protection with a range of 3 to 12m.
Provides highly reliable and versatile protection of your property before an intruder reaches your door. The sensor is suitable for both domestic and industrial applications.
Product Code: OMS-12FE
FEATURES OF THE DUAL-ZONE OUTDOOR 180° PIR:
- Dual-zone detection system
- 3-12m coverage
- Fixed sensor heads
- Easily enable/disable left or right detection areas
- Supplied masking sheets allow precise area control
- Front and back tampers
- IP54 housing

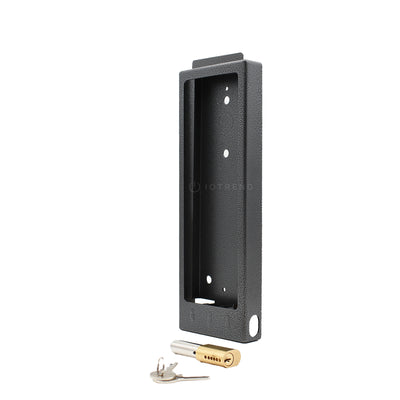

ACCESSORIES FOR DUAL-ZONE OUTDOOR 180° PIR:
SPECIFICATIONS OF THE DUAL-ZONE OUTDOOR 180° PIR:
| Detection system | Passive infrared |
| Coverage | Horizontal detection |
| Angle - 180° | |
| Detection distance - 12m | |
| Sensitive zone | Horizontal zone – 14 zones |
| Downward zone – 14 zones | |
| Area adjustment | Horizontal - L/R 90°(selectable) |
| Detection distance - 3m～12m | |
| (By adjusting vertical angle of downward curtain) | |
| Supply voltage | 9 to 28V DC (non-polarity) |
| Current consumption | 20mA Max. |
| Alarm output | Dry contact relay output N.C./N.O. selectable |
| * Contact capacity - 30V (AC/DC), 0.2A Max. (Resistive load) | |
| * Contact operation - Detection time (2sec) | |
| Tamper output | Dry contact relay output N.C. |
| * Contact capacity - 30V (AC/DC), 0.1A max. (Resistive load) | |
| LED indicator | Red LED |
| Blinking When Initializing | |
| Lighting at alarm (option to disable) | |
Pulse count |
1/2/3/4 times (with a switch) |
| Sensitivity adjustment | Approx. 30% -Approx. 170% (By Potentiometer) |
| Mounting position | Indoor / Outdoor |
| Wiring | Terminals |
| Body | AES resin |
| Lens | PE resin |
| Mounting height | 0.8 - 1.2m |
| Ambient temperature | -20℃ to + 50℃ |
| IP Rating | IP54 (Wall Mount) |
| Product Dimensions | 94 mm (L) x 77.5 mm (W) x 234 mm (H) |
| Product Weight | 470g |
| Packaging Dimensions | 245 mm (L) x 106 mm (W) x 95 mm (H) |
| Mass of unit packed | 500g |
| Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on the Dual-zone outdoor 180° PIR:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Takex OMS-12FE Outdoor Dual-zone 180 Degrees PIR
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
