PRODUCT INFORMATION

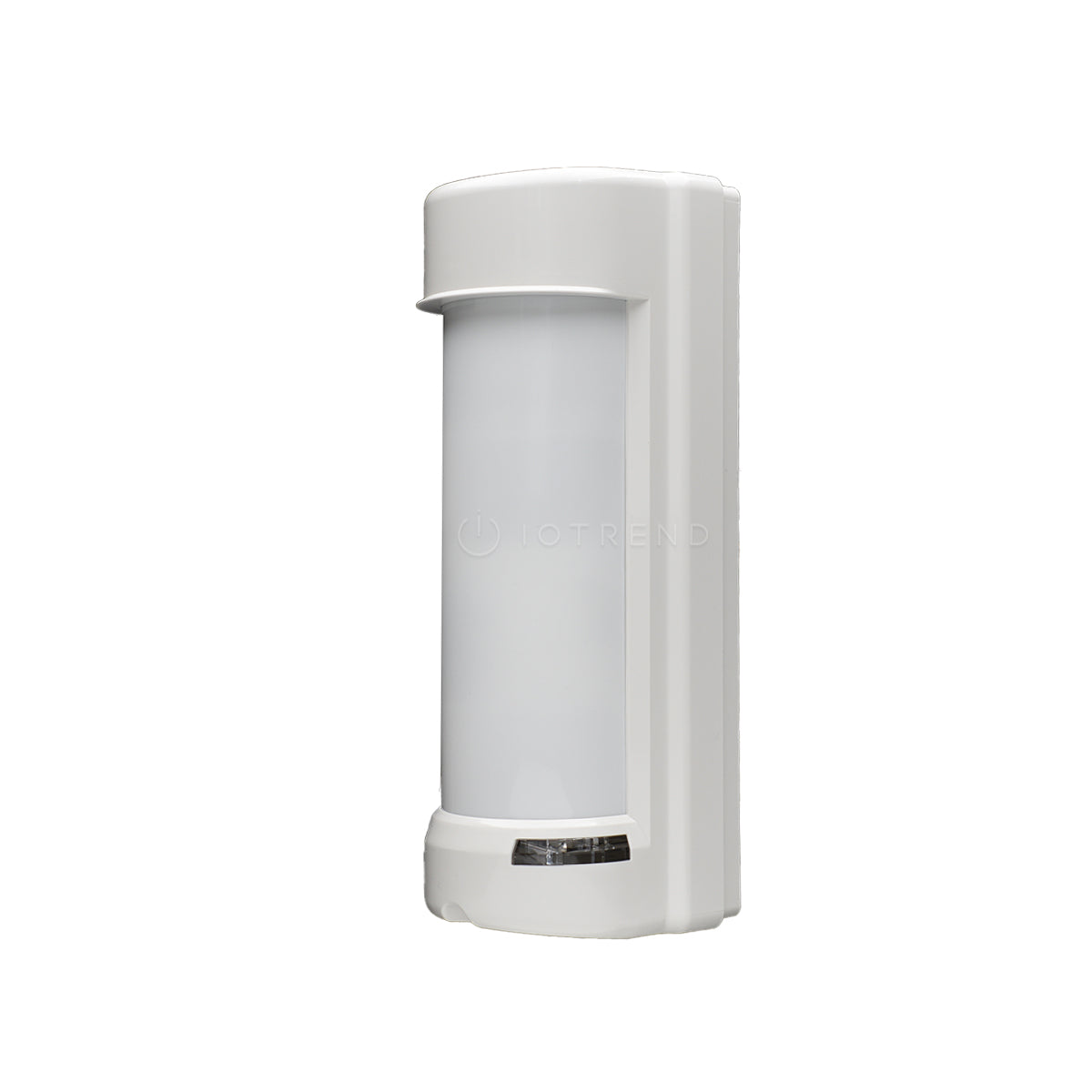

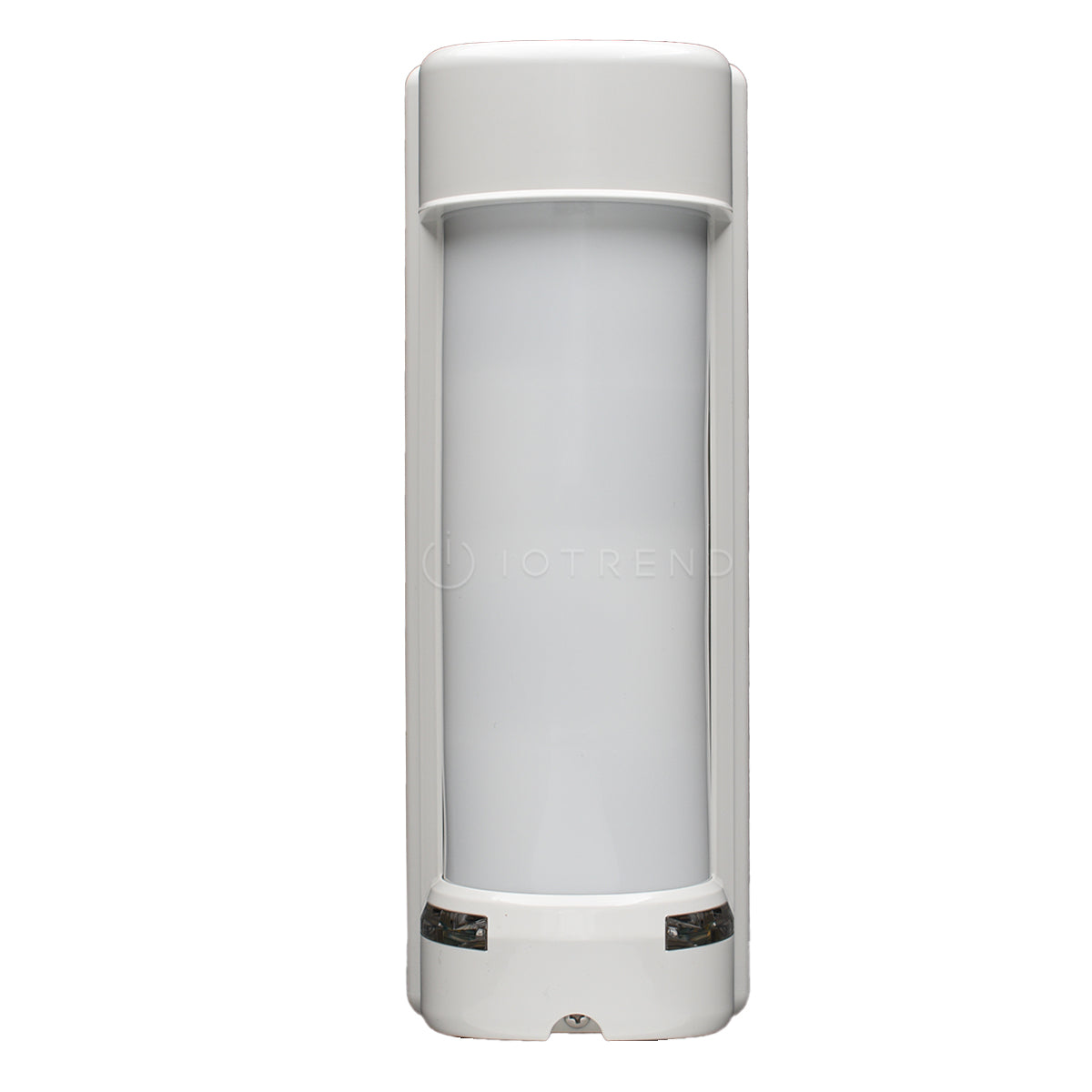

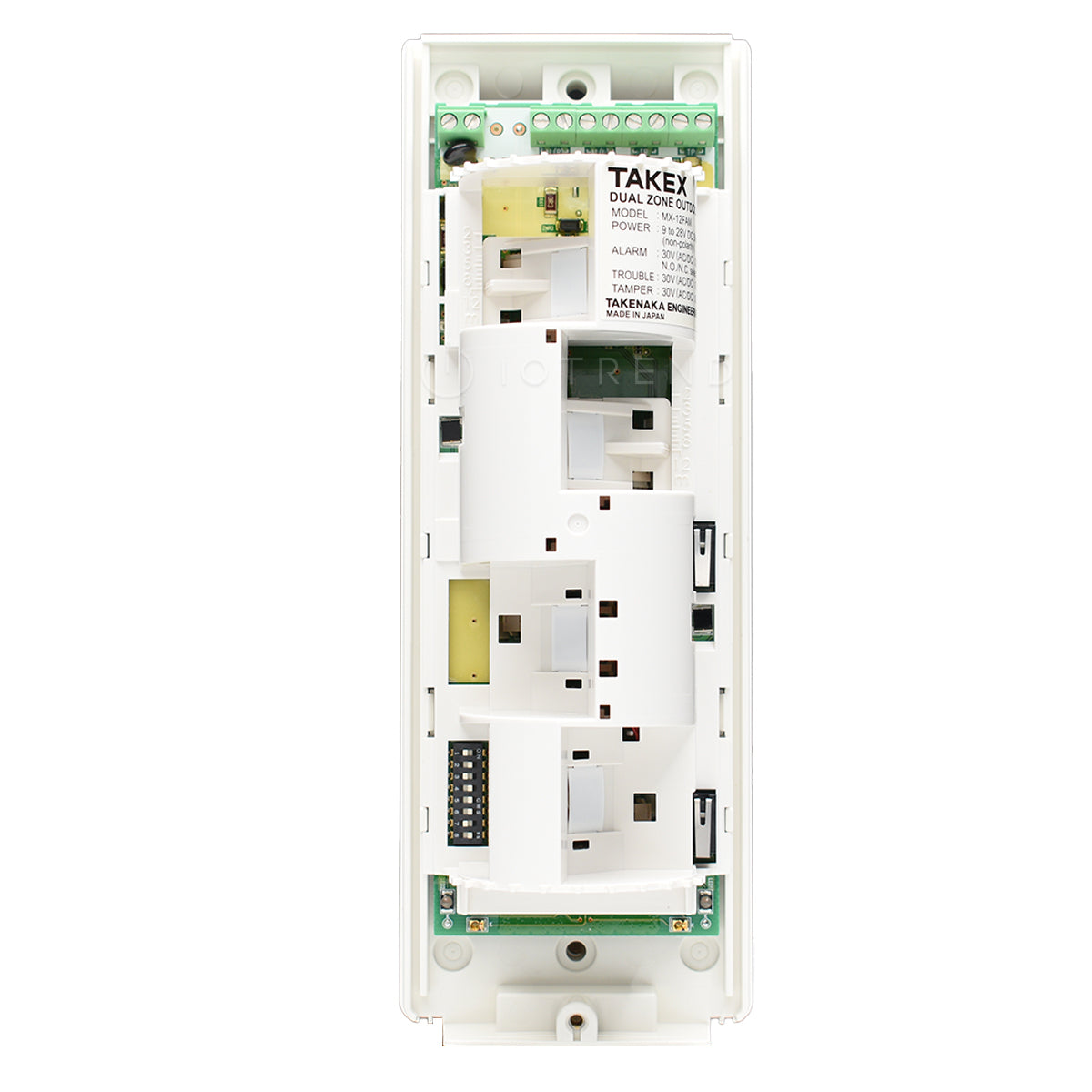

The Takex MX-12FAM Dual-Zone 12m x 180 Degree with Anti-Masking is a wired Dual-Zone PIR, that combines high-performance optics and advanced circuitry with the highest-grade components available. The MX-12FAM also includes a sophisticated anti-masking system designed to expose any attempt to defeat the sensor by obstruction.
The MX-12FAM uses a reliable dual-zone detection system to create up to 180° of complete coverage, with independent 2m - 12m adjustable protection distance for left and right sides for maximum installation versatility. The sensor initiates an alarm signal only when detection occurs in both horizontal and downward zones simultaneously, preventing false alarms from distant objects, small pets or small animals.
Equipped with both front and back tampers to detect interference or attempted theft of the sensor any time of the day or night.
The Takex MX-12FAM Dual-Zone 12m x 180 Degree with Anti-Masking provides highly reliable and versatile protection of your property before an intruder reaches your door. The sensor is suitable for both domestic and industrial applications.
Product Code: MX-12FAM
FEATURES OF THE DUAL-ZONE OUTDOOR PIR:
- Dual-zone detection system
- 180° wide angle coverage
- 2-12m Coverage
- Dual alarm signal outputs
- Anti-masking technology with near-lens awareness
- Front and back tampers
- Stowable area masks
- Pulse count and sensitivity adjustment
SPECIFICATIONS OF THE DUAL-ZONE OUTDOOR PIR:
| Detection system | Passive infrared |
| Coverage | Horizontal detection |
| Angle -180° | |
| Detection distance - 12m | |
| Sensitive zone | Horizontal zone - 14 zones |
| Downward zone - 14 zones | |
| Mounting height | 0.8 - 1.2m |
| Area adjustment | Detection distance - 2 to 12m [10 ranges] |
| (by adjusting vertical angle of downward curtain) | |
| Possible left and right individual adjustment | |
| Supply voltage | 9 to 28V DC (non-polarity) |
| Current consumption | 30mA Max. |
| Alarm output | [ALARM RIGHT+LEFT/ALARM RIGHT] |
| Dry contact relay output N.O./N.C. selectable | |
| Contact capacity - 30V (AC/DC) 0.2A Max. (Resistive load) | |
| Contact operation - Detection time (+2sec.) | |
| Alarm output (2) | [ALARM LEFT] |
| Dry contact relay output N.O./N.C. selectable | |
| Contact capacity - 30V (AC/DC) 0.2A Max. (Resistive load) | |
| Contact operation - Detection time (+2sec.) | |
| [EXTERNAL OUTPUT] | |
| Dry contact relay output N.O. | |
| Contact capacity - 30V (AC/DC) 0.2A Max. (Resistive load) | |
| Contact operation - Detection time (+2sec.) | |
| Trouble output | Dry contact relay output N.C. |
| Contact capacity - 30V (AC/DC) 0.2A Max. (Resistive load) | |
| (Masking detection / Low supply voltage / Self-diagnosis error) | |
| Tamper output | Dry contact relay output N.C. |
| Contact capacity - 30V (AC/DC) 0.1A Max. (Resistive load) | |
| (Cover tamper / Back tamper (when enabled) | |
| LED indicator | Red LED |
| Warm-up (Blinking) | |
| Alarm detection (Lights approx. 2sec only for Walk test) | |
| Low supply voltage (Blinking slowly) | |
| Masking detection (Blinking rapidly) | |
| Self-diagnosis error (Lights continuously) | |
| Functions | Anti-masking, Back tamper, Trouble alarm, Low voltage monitoring |
Pulse count |
1 / 3 times (selectable with DIP switch) |
| Sensitivity adjustment | 60% / 80% / 100% / 120% |
| (selectable with DIP switch, Possible left and right set individually) | |
| Mounting position | Indoor / Outdoor |
| Wiring | Terminals |
| Body | Resin (white) |
| Lens | Resin (white) |
| Ambient temperature | -25°C to + 60°C |
| IP Rating | IP55 |
| Product Dimensions | 80 mm (L) x 80 mm (W) x 220 mm (H) |
| Product Weight | 350g |
| Packaging Dimensions | 232 mm (L) x 91 mm (W) x 92 mm (H) |
| Mass of unit packed | 450g |
| Warranty | 12 months limited Manufacturer’s warranty |
Warnings and Limitations on the Dual-Zone Outdoor PIR:
1. All installations must be done by a suitable qualified technician
2. Under no circumstances may any of the components be modified.
WHAT’S IN THE BOX:
1 x Takex MX-12FAM Outdoor Dual-zone 180° PIR with Anti-Masking
Limitations:
The images shown are for illustrative purposes only. Actual product may vary slightly.
